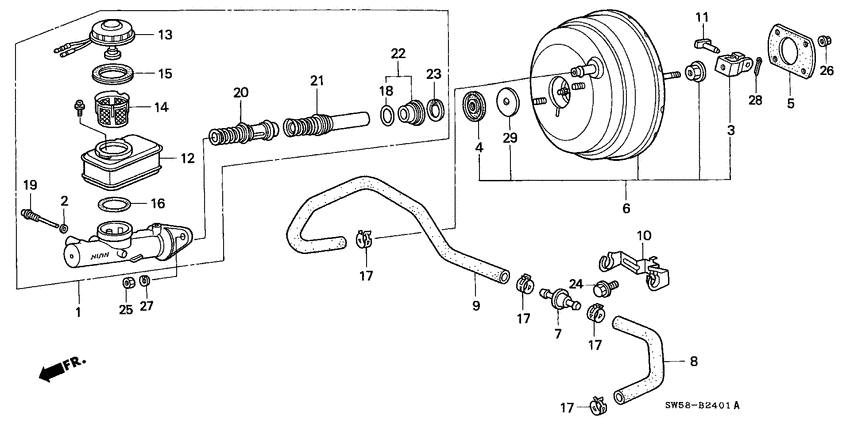

Brake master cylinder (V6; -'96) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46100-SP0-A54
Cylinder assy.
|
46100-SP0-A54 |
— | ||
|
2
|
2
46138-SM4-003 Packing |
46138-SM4-003 |
from US $2.66 |
||
|
3
|
3
46151-SA7-951 Yoke compNISSIN |
46151-SA7-951 |
US $11.07 |
||
|
4
|
4
46185-SD4-932
Seal
|
46185-SD4-932 |
— | ||
|
5
|
5
46191-634-000 GasketMASTER CYLINDER BRACKET |
46191-634-000 |
US $5.03 |
||
|
6
|
6
46400-SZ5-952
Power assy.
|
46400-SZ5-952 |
— | ||
|
7
|
7
46403-SW5-003
Valve comp.
|
46403-SW5-003 |
— | ||
|
8
|
8
46404-SZ5-000
Tube a
|
46404-SZ5-000 |
— | ||
|
9
|
9
46405-SZ5-000
Tube b
|
46405-SZ5-000 |
— | ||
|
10
|
10
46407-SE0-010
Clamp
|
46407-SE0-010 |
— | ||
|
11
|
11
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
12
|
12
46660-SD4-023
Tank
|
46660-SD4-023 |
— | ||
|
13
|
13
46662-SD4-033
Cap comp.
|
46662-SD4-033 |
— | ||
|
14
|
14
46666-SD4-013
Filter
|
46666-SD4-013 |
— | ||
|
15
|
15
46669-692-003 SealRESERVE TANK |
46669-692-003 |
US $8.73 |
||
|
16
|
16
46671-SD4-003
O-ring
|
46671-SD4-003 |
— | ||
|
17
|
17
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.51 |
||
|
18
|
18
57173-SB0-801 O-ringCONNECTOR |
57173-SB0-801 |
US $2.07 |
||
|
19
|
19
57515-SM4-013 Bolt compSTOPPER |
57515-SM4-013 |
US $4.13 |
||
|
20
|
20
57520-SD4-023 Piston assy.PRIMARY |
57520-SD4-023 |
from US $46.34 |
||
|
21
|
21
57540-SD4-023 Piston assy.SECONDARY |
57540-SD4-023 |
US $46.34 |
||
|
22
|
22
57560-SD4-003 Guide assyPISTON |
57560-SD4-003 |
US $17.28 |
||
|
23
|
23
57562-SF1-003 Circlip |
57562-SF1-003 |
US $2.17 |
||
|
24
|
24
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
25
|
25
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
25
|
25
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
26
|
26
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
27
|
27
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
28
|
28
94201-20300 PinSPLIT, 2.0X30 |
94201-20300 |
US $0.44 |
||
|
29
|
29
46445-SD4-931
Plate
|
46445-SD4-931 |
— | ||
