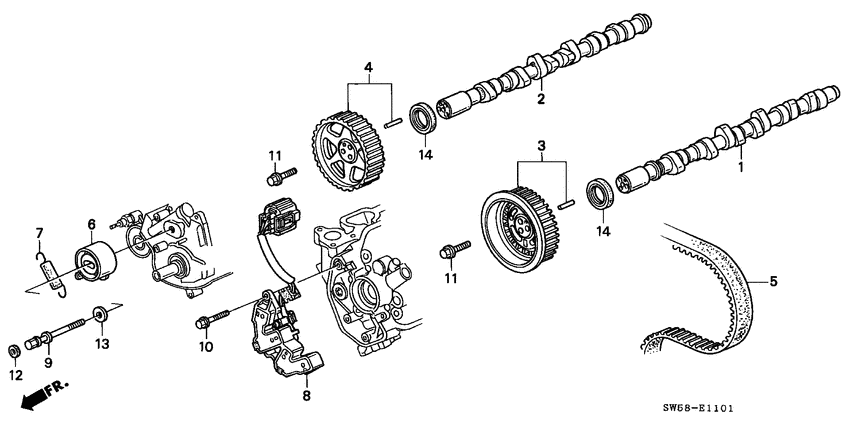

Camshaft/timing belt (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
14100-P5G-000
Camshaft
|
14100-P5G-000 |
— | ||
|
2
|
2
14200-P5G-000
Camshaft
|
14200-P5G-000 |
— | ||
|
3
|
3
14260-PY3-003
Pulley comp
|
14260-PY3-003 |
— | ||
|
4
|
4
14270-PH7-003
Pulley
|
14270-PH7-003 |
— | ||
|
5
|
5
14400-PY3-004
Belt
|
14400-PY3-004 |
— | ||
|
6
|
6
14510-PY3-003 Adjuster compTIMING BELT (KOYO SEIKO) |
14510-PY3-003 |
US $58.50 |
||
|
7
|
7
14516-PY3-000
Spring comp
|
14516-PY3-000 |
— | ||
|
8
|
8
37840-PY3-026
Sensor comp
|
37840-PY3-026 |
— | ||
|
9
|
9
90016-P0G-A00 BoltSPECIAL TIMING BELT ADJUSTER |
90016-P0G-A00 |
US $10.74 |
||
|
10
|
10
90021-PL2-000 BoltFLANGE, 6X20 |
90021-PL2-000 |
US $1.96 |
||
|
11
|
11
90031-PH7-000 BoltFLANGE, 8X20 |
90031-PH7-000 |
from US $2.52 |
||
|
12
|
12
90401-634-000 RubberTIMING BELT ADJUSTER |
90401-634-000 |
from US $4.07 |
||
|
13
|
13
90501-MB7-610 Washer10.3X25 |
90501-MB7-610 |
from US $3.67 |
||
|
14
|
14
91213-PY3-004 Oil seal35X50X9.5 (NOK) |
91213-PY3-004 |
US $13.72 |
||
|
14
|
14
91213-PY3-003 Oil seal35X50X9.5 (ARAI) |
91213-PY3-003 |
US $13.72 |
