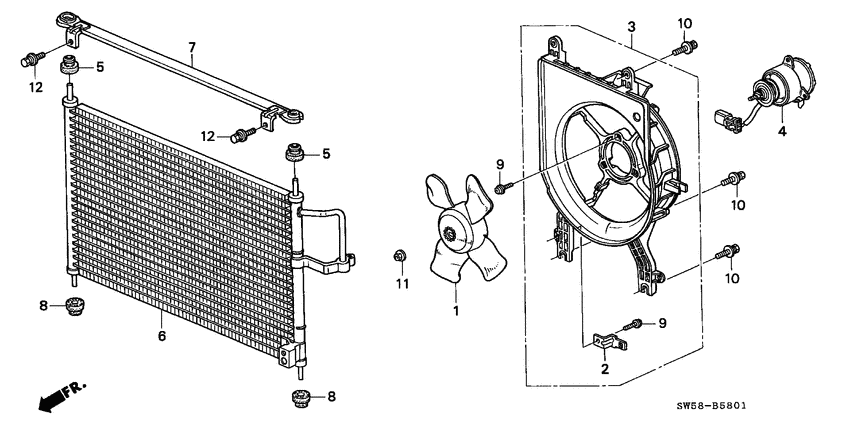

Condenser (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19020-P08-003 FanCOOLING (DENSO) |
19020-P08-003 |
US $35.97 |
||
|
2
|
2
19033-P08-003
Stay
|
19033-P08-003 |
— | ||
|
3
|
3
38615-P5G-003
Shroud comp.
|
38615-P5G-003 |
— | ||
|
4
|
4
38616-P5G-003 MotorCOOLING FAN |
38616-P5G-003 |
US $250.88 |
||
|
5
|
5
80107-SS0-000 MountCONDENSER UPPER |
80107-SS0-000 |
US $3.11 |
||
|
6
|
6
80110-SZ5-003
Condenser comp.
|
80110-SZ5-003 |
— | ||
|
7
|
7
80111-SZ5-003
Bracket
|
80111-SZ5-003 |
— | ||
|
8
|
8
80175-SE0-000 MountCONDENSER |
80175-SE0-000 |
from US $3.03 |
||
|
9
|
9
90041-P08-003 Screw-washer4X11 |
90041-P08-003 |
US $1.82 |
||
|
10
|
10
90042-PH2-003 Bolt-washer6X16 (DENSO) |
90042-PH2-003 |
US $1.26 |
||
| replacement | |||||
|
10
|
10
90042-PAA-A01 Bolt-washer6X16 (DENSO) |
90042-PAA-A01 |
US $1.47 |
||
|
11
|
11
90043-PD2-003 NutHEX., 5MM (DENSO) |
90043-PD2-003 |
from US $2.44 |
||
|
12
|
12
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
