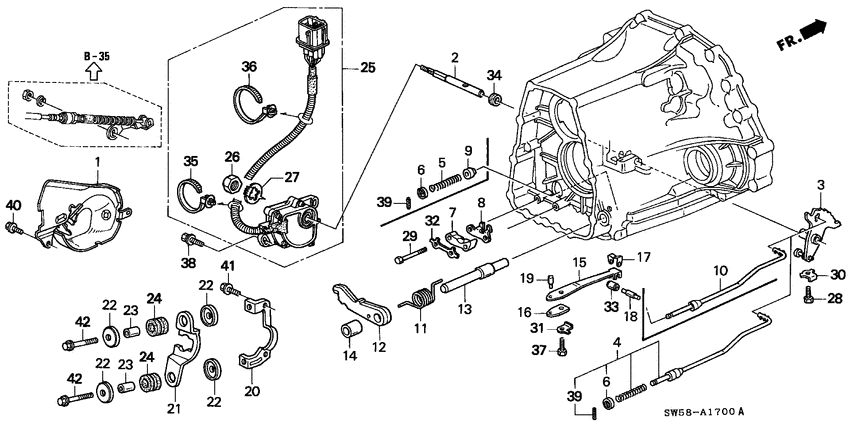

Control lever (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21710-P5G-000
Cover comp.
|
21710-P5G-000 |
— | ||
|
2
|
2
24411-P5H-000
Shaft
|
24411-P5H-000 |
— | ||
|
3
|
3
24420-P5H-000 Lever compDETENT |
24420-P5H-000 |
US $43.52 |
||
|
4
|
4
24500-PY4-010 Rod assyPARKING BRAKE 1000199 - |
24500-PY4-010 |
US $40.06 |
||
|
5
|
5
24535-P5H-000
Spring
00000000 - 1000198 |
24535-P5H-000 |
— | ||
|
6
|
6
24536-PY4-000
Washer
|
24536-PY4-000 |
— | ||
|
7
|
7
24543-PY4-003 HolderPARKING BRAKE ROD (HITACHI) |
24543-PY4-003 |
US $20.61 |
||
|
8
|
8
24545-PY4-010 GuidePARKING BRAKE ROD |
24545-PY4-010 |
US $4.62 |
||
|
9
|
9
24546-P5H-000
Cone
00000000 - 1000198 |
24546-P5H-000 |
— | ||
|
10
|
10
24550-P5H-000
Rod comp
00000000 - 1000198 |
24550-P5H-000 |
— | ||
|
11
|
11
24552-PY4-000
Spring
|
24552-PY4-000 |
— | ||
|
12
|
12
24561-PY4-000
Pawl
|
24561-PY4-000 |
— | ||
|
13
|
13
24562-PY4-000
Shaft
|
24562-PY4-000 |
— | ||
|
14
|
14
24563-PY4-000
Sleeve
|
24563-PY4-000 |
— | ||
|
15
|
15
24621-P5H-000
Spring
|
24621-P5H-000 |
— | ||
|
16
|
16
24623-PY4-000 PlateDETENT SPRING |
24623-PY4-000 |
US $4.62 |
||
|
17
|
17
24624-P5H-000 GuideDETENT SPRING |
24624-P5H-000 |
US $1.89 |
||
|
18
|
18
24626-P5H-003 PinDETENT |
24626-P5H-003 |
US $2.31 |
||
|
19
|
19
24627-PY4-000 PinFIX |
24627-PY4-000 |
US $2.38 |
||
|
20
|
20
24904-PY4-010
Base
|
24904-PY4-010 |
— | ||
|
21
|
21
24905-PY4-020
Stay
|
24905-PY4-020 |
— | ||
|
22
|
22
24906-PY4-000
Washer
|
24906-PY4-000 |
— | ||
|
23
|
23
24907-PY4-000 CollarFLOATING (6.8) |
24907-PY4-000 |
US $2.31 |
||
|
24
|
24
24908-PY4-000 RubberFLOATING |
24908-PY4-000 |
US $2.44 |
||
|
25
|
25
28900-P5H-003 Sensor assyPOSITION |
28900-P5H-003 |
US $160 |
||
|
26
|
26
28921-P5H-003 NutHEX. SPECIAL, 16MM |
28921-P5H-003 |
US $2.59 |
||
|
27
|
27
28922-P5H-003
Washer
|
28922-P5H-003 |
— | ||
|
28
|
28
90001-PA9-000 BoltHEX., 6MM |
90001-PA9-000 |
from US $1.89 |
||
|
29
|
29
90001-PY4-003 BoltHEX., 6MM |
90001-PY4-003 |
US $1.68 |
||
|
30
|
30
90433-639-000 WasherLOCK, 6MM |
90433-639-000 |
US $7.38 |
||
|
31
|
31
90439-PH8-000 WasherLOCK, 6MM |
90439-PH8-000 |
US $6.44 |
||
|
32
|
32
90441-PY4-000
Washer
|
90441-PY4-000 |
— | ||
|
33
|
33
91046-P5H-003 BearingNEEDLE, 3.5X8X11 |
91046-P5H-003 |
US $7 |
||
|
34
|
34
91209-612-000
Oil seal
|
91209-612-000 |
— | ||
| replacement | |||||
|
34
|
34
91209-612-003 Oil seal12X22X7 (ARAI) |
91209-612-003 |
from US $5.03 |
||
|
35
|
35
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
36
|
36
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
37
|
37
92101-06020-0H BoltHEX., 6X20 |
92101-06020-0H |
from US $0.44 |
||
|
38
|
38
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
39
|
39
94305-25122 PinSPRING, 2.5X12 |
94305-25122 |
from US $0.74 |
||
|
40
|
40
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
41
|
41
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
42
|
42
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
