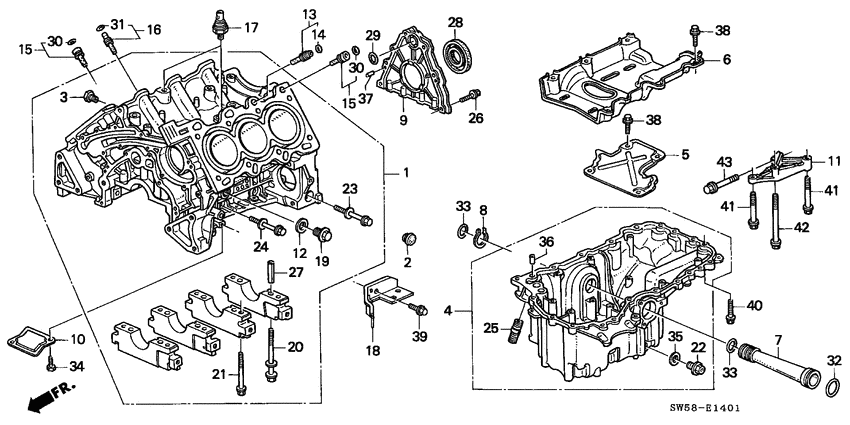

Cylinder block/oil pan (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11000-PY3-J00
Block assy
|
11000-PY3-J00 |
— | ||
|
2
|
2
11107-PY3-000 GrommetCYLINDER BLOCK |
11107-PY3-000 |
US $4.62 |
||
|
3
|
3
11108-PY3-J00
Bolt
|
11108-PY3-J00 |
— | ||
|
4
|
4
11200-PY3-010
Pan assy
|
11200-PY3-010 |
— | ||
|
5
|
5
11210-PY3-000 PlateLOWER BAFFLE |
11210-PY3-000 |
US $13.44 |
||
|
6
|
6
11220-PY3-000
Plate
|
11220-PY3-000 |
— | ||
|
7
|
7
11230-PY3-000 PipeOIL PAN INNER |
11230-PY3-000 |
US $40.06 |
||
|
8
|
8
11232-PY3-000 CirclipEXTERNAL, 52MM |
11232-PY3-000 |
US $4.62 |
||
|
9
|
9
11301-PY3-000 CoverRR. |
11301-PY3-000 |
US $60.29 |
||
|
10
|
10
11711-PY3-000 Plate compBREATHER COVER |
11711-PY3-000 |
US $5.46 |
||
|
11
|
11
11950-PY3-000
Stiffener
|
11950-PY3-000 |
— | ||
|
12
|
12
12207-634-300
Washer
|
12207-634-300 |
— | ||
|
13
|
13
15140-PY3-000 Orifice assyL. CAM JOURNAL |
15140-PY3-000 |
US $11.90 |
||
|
14
|
14
15142-PH3-003 O-ring10.8X2.4 (ARAI) |
15142-PH3-003 |
from US $2.96 |
||
|
15
|
15
15142-PY3-000 Orifice assyHYDRAULIC RUSH ADJUSTER |
15142-PY3-000 |
US $11.90 |
||
|
16
|
16
15144-PY3-000 Orifice assyR. CAM JOURNAL (MATSUSHITA) |
15144-PY3-000 |
US $11.90 |
||
|
17
|
17
30530-PR7-A01 Sensor assyKNOCK (MATSUSHITA) |
30530-PR7-A01 |
US $140.80 |
||
|
18
|
18
32746-PY3-900
Stay g
|
32746-PY3-900 |
— | ||
|
19
|
19
90001-PM3-003 BoltDRAIN PLUG, 28MM |
90001-PM3-003 |
from US $7.16 |
||
|
20
|
20
90006-PR3-003
Bolt-washer
|
90006-PR3-003 |
— | ||
| replacement | |||||
|
20
|
20
90006-P75-003
Bolt-washer
|
90006-P75-003 |
— | ||
|
21
|
21
90009-PH7-003 BoltFLANGE, 9X86 |
90009-PH7-003 |
US $5.86 |
||
|
22
|
22
90009-PY3-000 DRAIN PLUG BOLT, 14MM |
90009-PY3-000 |
from US $2.92 |
||
|
23
|
23
90013-PH7-003 Bolt-washer10X56 |
90013-PH7-003 |
US $3.74 |
||
|
24
|
24
90014-PH7-003 Bolt-washer10X41 |
90014-PH7-003 |
US $3.74 |
||
|
25
|
25
90015-PL2-000 HolderOIL FILTER |
90015-PL2-000 |
US $4.34 |
||
|
26
|
26
90052-PH7-000 BoltFLANGE, 6X22 |
90052-PH7-000 |
US $1.72 |
||
|
27
|
27
90715-PH7-000 Dowel pin13X37 |
90715-PH7-000 |
from US $2.37 |
||
|
28
|
28
91214-PL2-004
Oil seal
|
91214-PL2-004 |
— | ||
| replacement | |||||
|
28
|
28
91214-PNA-014 Oil seal80X98X10 (ARAI) |
91214-PNA-014 |
from US $12.73 |
||
|
28
|
28
91214-PY3-003 Oil seal80X98X10 (NOK) |
91214-PY3-003 |
US $15.36 |
||
|
29
|
29
91302-PY3-000 O-ring38.5X2.4 |
91302-PY3-000 |
US $7.99 |
||
|
30
|
30
91305-PH7-003 O-ring12.5X2.4 |
91305-PH7-003 |
from US $1.55 |
||
|
31
|
31
91307-PY3-000 O-ring9.8X2.4 |
91307-PY3-000 |
from US $1.12 |
||
|
32
|
32
91331-PY3-000 O-ring58.4X3.1 |
91331-PY3-000 |
US $13.02 |
||
|
33
|
33
91332-PY3-000 O-ring47X3.1 |
91332-PY3-000 |
US $11.54 |
||
|
34
|
34
92201-06012-0H BoltHEX., 6X12 |
92201-06012-0H |
US $0.44 |
||
|
35
|
35
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
36
|
36
94301-10120 Dowel pin10X12 |
94301-10120 |
from US $1.04 |
||
|
37
|
37
94303-06100 Dowel pin6X10 |
94303-06100 |
from US $0.93 |
||
|
38
|
38
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
39
|
39
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
40
|
40
95701-080-300-8 BoltFLANGE, 8X30 |
95701-080-300-8 |
from US $0.74 |
||
|
41
|
41
95701-080-500-8 BoltFLANGE, 8X50 |
95701-080-500-8 |
from US $0.81 |
||
|
42
|
42
95701-080-800-8 BoltFLANGE, 8X80 |
95701-080-800-8 |
from US $0.89 |
||
|
43
|
43
95701-120-500-8 BoltFLANGE, 12X50 |
95701-120-500-8 |
from US $1.18 |
||
