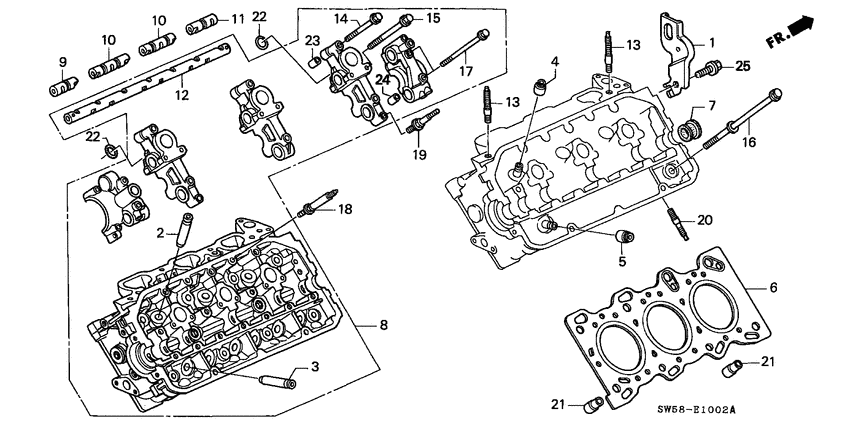

Cylinder head (RIGHT; V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11912-PY3-000
Hanger
|
11912-PY3-000 |
— | ||
|
2
|
2
12204-PJ7-305 GuideIN. VALVE (OS) |
12204-PJ7-305 |
from US $8.79 |
||
|
3
|
3
12205-PJ7-305 GuideEX. VALVE (OS) |
12205-PJ7-305 |
from US $10.42 |
||
|
4
|
4
12210-PZ1-004 SEAL A, VALVE STEM (NOK) |
12210-PZ1-004 |
from US $3.64 |
||
|
5
|
5
12211-PZ1-004 Seal bVALVE STEM(NOK) |
12211-PZ1-004 |
from US $3.47 |
||
|
5
|
5
12211-PZ1-003 Seal bVALVE STEM(ARAI) |
12211-PZ1-003 |
from US $3.13 |
||
|
6
|
6
12261-PY3-003 GasketR. CYLINDER HEAD (ISHINO GASKET) |
12261-PY3-003 |
US $55.94 |
||
|
7
|
7
12266-PY3-003 PlugCYLINDER HEAD |
12266-PY3-003 |
from US $6.07 |
||
|
8
|
8
12300-PY3-020
Head assy
|
12300-PY3-020 |
— | ||
|
9
|
9
14631-PY3-000
Shaft a
|
14631-PY3-000 |
— | ||
|
10
|
10
14632-P5A-000
Shaft
|
14632-P5A-000 |
— | ||
|
11
|
11
14633-PY3-000
Shaft c
|
14633-PY3-000 |
— | ||
|
12
|
12
14634-P5A-000
Shaft
|
14634-P5A-000 |
— | ||
|
13
|
13
90001-PY3-000 BoltSTUD, 8X37 |
90001-PY3-000 |
US $2.31 |
||
|
14
|
14
90002-PJ7-010 BoltFLANGE, 6X45 |
90002-PJ7-010 |
US $4.07 |
||
|
15
|
15
90002-PY3-000
Bolt
|
90002-PY3-000 |
— | ||
|
16
|
16
90005-PH7-003 Bolt-washer11X164 |
90005-PH7-003 |
US $8.82 |
||
|
17
|
17
90010-PY3-000 BoltFLANGE, 8X72 |
90010-PY3-000 |
US $2.59 |
||
|
18
|
18
90012-P5A-000 Bolt aHEAD COVER |
90012-P5A-000 |
from US $5.18 |
||
|
19
|
19
90014-PY3-000
Bolt b
|
90014-PY3-000 |
— | ||
|
20
|
20
90021-P0G-A00 BoltSTUD, 8X41 |
90021-P0G-A00 |
US $2.24 |
||
|
21
|
21
90719-PH7-000 Dowel pin13X37 |
90719-PH7-000 |
US $5.37 |
||
|
22
|
22
91301-PT0-004
O-ring
|
91301-PT0-004 |
— | ||
| replacement | |||||
|
22
|
22
91301-PT0-003 O-ring29.7X2.5 (ARAI) |
91301-PT0-003 |
from US $4.66 |
||
|
23
|
23
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
24
|
24
94301-10160 Dowel pin10X16 |
94301-10160 |
from US $1.04 |
||
|
25
|
25
95701-100-200-8 BoltFLANGE, 10X20 |
95701-100-200-8 |
from US $0.74 |
||
