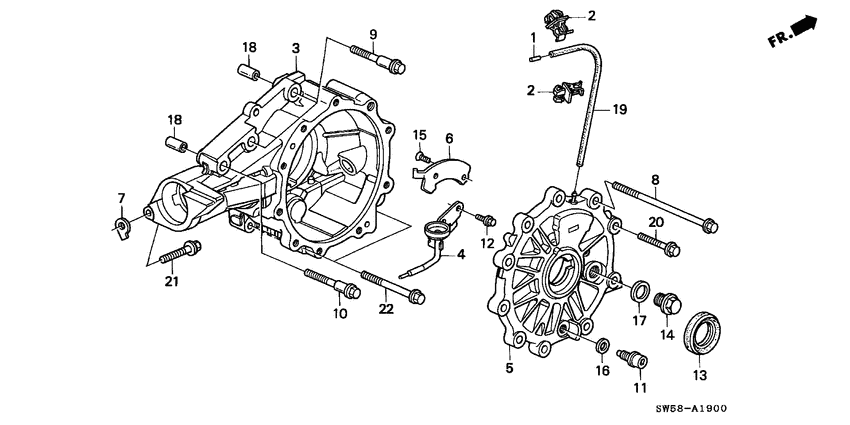

Differential carrier (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
21321-689-000 PlugBREATHER TUBE |
21321-689-000 |
US $1.89 |
||
|
2
|
2
21399-PH8-010
Clamp
|
21399-PH8-010 |
— | ||
|
3
|
3
41121-P5D-000 CarrierDIFFERENTIAL |
41121-P5D-000 |
US $650.24 |
||
|
4
|
4
41123-PY4-010 Pipe compOIL GUIDE |
41123-PY4-010 |
US $17.79 |
||
|
5
|
5
41170-P5D-000 Cover comp.DIFFERENTIAL CARRIER |
41170-P5D-000 |
US $134.40 |
||
|
6
|
6
41185-PY4-000
Plate
|
41185-PY4-000 |
— | ||
|
7
|
7
41441-PY4-000
Shim j
|
41441-PY4-000 |
— | ||
|
7
|
7
41436-PY4-000
Shim e
|
41436-PY4-000 |
— | ||
|
7
|
7
41443-PY4-000
Shim l
|
41443-PY4-000 |
— | ||
|
7
|
7
41438-PY4-000
Shim g
|
41438-PY4-000 |
— | ||
|
7
|
7
41433-PY4-000
Shim b
|
41433-PY4-000 |
— | ||
|
7
|
7
41440-PY4-000
Shim i
|
41440-PY4-000 |
— | ||
|
7
|
7
41435-PY4-000
Shim d
|
41435-PY4-000 |
— | ||
|
7
|
7
41442-PY4-000
Shim k
|
41442-PY4-000 |
— | ||
|
7
|
7
41437-PY4-000
Shim f
|
41437-PY4-000 |
— | ||
|
7
|
7
41432-PY4-000
Shim a
|
41432-PY4-000 |
— | ||
|
7
|
7
41439-PY4-000
Shim h
|
41439-PY4-000 |
— | ||
|
7
|
7
41434-PY4-000
Shim c
|
41434-PY4-000 |
— | ||
|
8
|
8
90013-PY4-000
Bolt
|
90013-PY4-000 |
— | ||
|
9
|
9
90029-PY4-000
Bolt
|
90029-PY4-000 |
— | ||
|
10
|
10
90030-PY4-000
Bolt
|
90030-PY4-000 |
— | ||
|
11
|
11
90081-PA0-000 BoltPLUG, 14MM |
90081-PA0-000 |
US $6.07 |
||
| replacement | |||||
|
11
|
11
90081-PB6-000 BoltPLUG, 14MM |
90081-PB6-000 |
from US $6.07 |
||
|
12
|
12
90085-PY4-010 BoltFLANGE SPECIAL, 6X12 |
90085-PY4-010 |
US $1.54 |
||
|
13
|
13
91206-PY4-004 Oil seal42X63X9 (ARAI) |
91206-PY4-004 |
US $9.03 |
||
|
13
|
13
91206-PY4-003 Oil seal42X63X9 (NOK) |
91206-PY4-003 |
US $7.98 |
||
|
14
|
14
92800-20000 BoltDRAIN PLUG, 20MM |
92800-20000 |
from US $1.85 |
||
|
15
|
15
93600-060-140-H ScrewFLAT, 6X14 |
93600-060-140-H |
from US $0.44 |
||
|
16
|
16
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
17
|
17
94109-20000 WasherDRAIN PLUG, 20MM |
94109-20000 |
from US $0.52 |
||
|
18
|
18
94301-14200 Dowel pin14X20 |
94301-14200 |
from US $1.04 |
||
|
19
|
19
95005-455-202-0 Tube4.5X520 (95005-45001-20M) |
95005-455-202-0 |
US $6.96 |
||
|
20
|
20
95701-100-400-8 BoltFLANGE, 10X40 |
95701-100-400-8 |
from US $0.81 |
||
|
21
|
21
95701-120-550-8 BoltFLANGE, 12X55 |
95701-120-550-8 |
from US $1.18 |
||
|
22
|
22
95701-120-600-8 BoltFLANGE, 12X60 |
95701-120-600-8 |
from US $1.18 |
||
