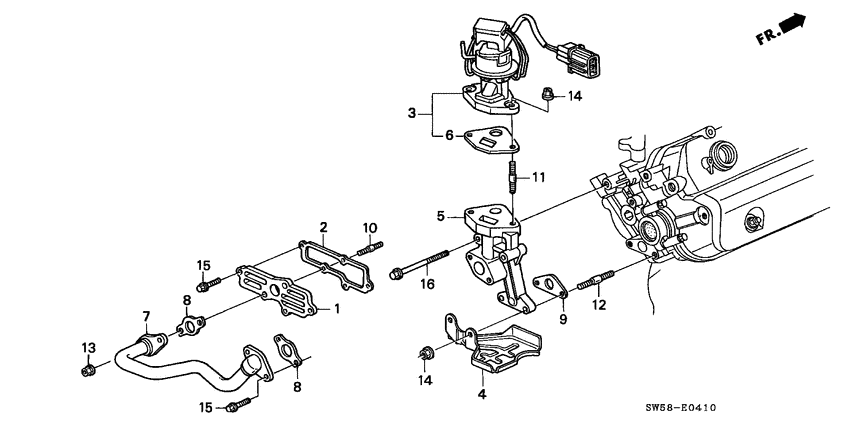

Egr valve (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17122-PY3-000 CoverEGR |
17122-PY3-000 |
US $14.08 |
||
|
2
|
2
17123-P5A-004 PackingEGR COVER (NIPPON LEAKLESS) |
17123-P5A-004 |
US $3.50 |
||
|
3
|
3
18011-PY3-000
Valve set
|
18011-PY3-000 |
— | ||
|
4
|
4
18121-P5G-000
Cover b
|
18121-P5G-000 |
— | ||
|
5
|
5
18711-PY3-000
Passage
|
18711-PY3-000 |
— | ||
|
6
|
6
18715-PB2-000 GASKET, EGR VALVE (ISHINO GASKET) |
18715-PB2-000 |
from US $6.51 |
||
|
7
|
7
18717-PY3-010
Pipe comp
|
18717-PY3-010 |
— | ||
|
8
|
8
18721-PR7-A01 PackingEGR PIPE (ISHINO GASKET) |
18721-PR7-A01 |
US $6.96 |
||
|
9
|
9
18722-PY3-003 Packing bEGR PASSAGE (ISHINO GASKET) |
18722-PY3-003 |
US $4.32 |
||
|
10
|
10
92900-06028-1B BoltSTUD, 6X28 |
92900-06028-1B |
US $0.59 |
||
|
11
|
11
92900-08022-0B BoltSTUD, 8X22 |
92900-08022-0B |
from US $0.74 |
||
|
12
|
12
92900-08035-0B BoltSTUD, 8X35 |
92900-08035-0B |
from US $0.81 |
||
|
13
|
13
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
14
|
14
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
15
|
15
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
16
|
16
95701-080-550-8 BoltFLANGE, 8X55 |
95701-080-550-8 |
from US $0.90 |
