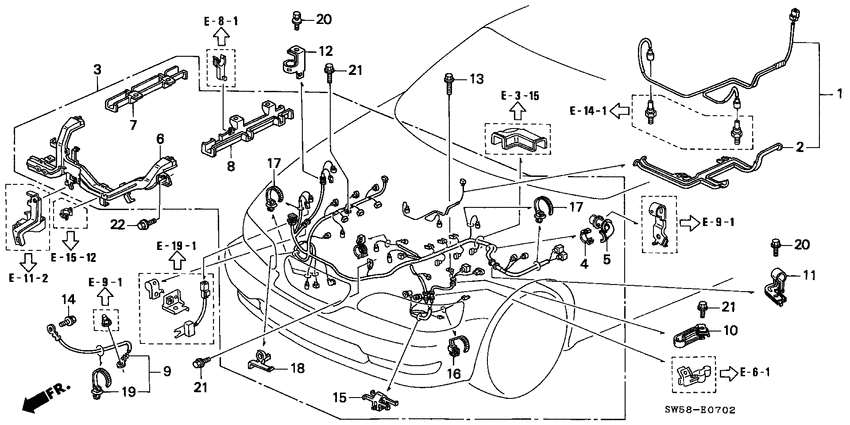

Engine wire harness (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
30531-PY3-900
Sub cord
|
30531-PY3-900 |
— | ||
|
2
|
2
30532-PY3-900
Holder
|
30532-PY3-900 |
— | ||
|
3
|
3
32110-P5G-900
Harness
|
32110-P5G-900 |
— | ||
|
4
|
4
32118-PY3-900
Protector a
|
32118-PY3-900 |
— | ||
|
5
|
5
32119-PY3-900
Protector b
|
32119-PY3-900 |
— | ||
|
6
|
6
32127-P5G-000
Holder comp
|
32127-P5G-000 |
— | ||
|
7
|
7
32129-PY3-900
Holder comp
|
32129-PY3-900 |
— | ||
|
8
|
8
32130-PY3-900
Holder comp
|
32130-PY3-900 |
— | ||
|
9
|
9
32610-SP0-000 CableSUB EARTH |
32610-SP0-000 |
US $10.22 |
||
|
10
|
10
32750-PY3-900
Clamp a
|
32750-PY3-900 |
— | ||
|
11
|
11
32751-PY3-900
Clamp b
|
32751-PY3-900 |
— | ||
|
12
|
12
32753-PY3-900
Clamp d
|
32753-PY3-900 |
— | ||
|
13
|
13
90114-SM4-900 Bolt6X15 |
90114-SM4-900 |
US $3.91 |
||
|
14
|
14
90149-SE0-003 BoltEARTH, 6X16 |
90149-SE0-003 |
from US $2.52 |
||
|
15
|
15
90624-PY3-901
Clip
|
90624-PY3-901 |
— | ||
|
16
|
16
91506-P01-003 Clip AHARNESS BAND (DARK GRAY) (129.4MM) |
91506-P01-003 |
from US $2.37 |
||
|
17
|
17
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
18
|
18
91549-PY3-900
Clip comp.
|
91549-PY3-900 |
— | ||
|
19
|
19
91567-SE0-003 BandWIRE HARNESS(WHITE) (93.5MM) |
91567-SE0-003 |
from US $3.08 |
||
|
20
|
20
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.52 |
||
|
21
|
21
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
22
|
22
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
