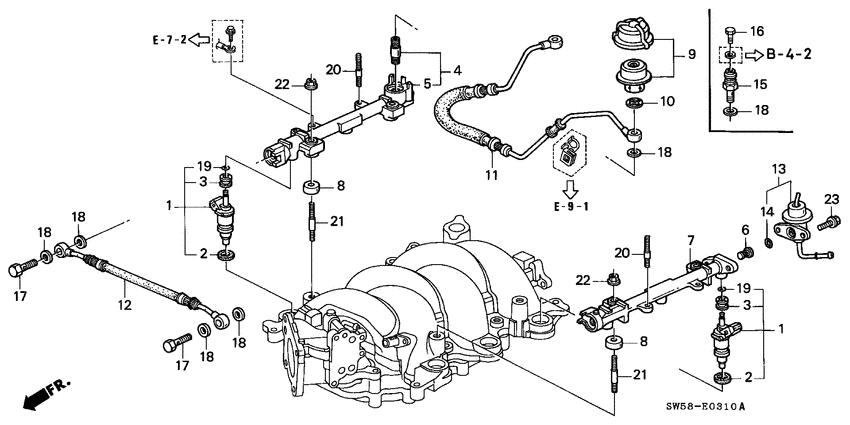

Fuel injector (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06164-P2J-000 INJECTOR (1pc), packing set1pc |
06164-P2J-000 |
US $201.28 |
||
|
2
|
2
16472-PH7-003 Seal ringINJECTOR (OTSUKA) |
16472-PH7-003 |
from US $4.84 |
||
| replacement | |||||
|
2
|
2
16472-P0H-A01 Seal ringINJECTOR (NOK) |
16472-P0H-A01 |
US $25.28 |
||
|
3
|
3
16473-PD6-000 Cushion ringINJECTOR (OTSUKA) |
16473-PD6-000 |
from US $5.33 |
||
| replacement | |||||
|
3
|
3
16473-P10-A01 Cushion ringINJECTOR (NOK) |
16473-P10-A01 |
US $10.10 |
||
|
5
|
5
16611-P5G-000
Pipe
|
16611-P5G-000 |
— | ||
|
6
|
6
16614-P5G-003 MeshFUEL FILTER |
16614-P5G-003 |
from US $4.20 |
||
|
7
|
7
16621-P5G-000
Pipe
|
16621-P5G-000 |
— | ||
|
8
|
8
16638-PH7-000 InsulatorFUEL PIPE |
16638-PH7-000 |
US $3.08 |
||
|
11
|
11
16722-P5G-003
Hose comp. c
|
16722-P5G-003 |
— | ||
|
12
|
12
16723-P5G-003
Hose comp. d
|
16723-P5G-003 |
— | ||
|
13
|
13
16740-P5G-003
Regulator assy
|
16740-P5G-003 |
— | ||
|
14
|
14
16741-PG7-005 O-ringPRESSURE REGULATOR |
16741-PG7-005 |
from US $2.22 |
||
|
15
|
15
90008-P0G-A01
Bolt
|
90008-P0G-A01 |
— | ||
|
16
|
16
90009-PE2-010 BoltSEALING, 6MM |
90009-PE2-010 |
US $4.03 |
||
| replacement | |||||
|
16
|
16
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
17
|
17
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
18
|
18
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
19
|
19
91301-PM7-003 O-ring7.3X2.2 (ARAI) |
91301-PM7-003 |
US $4.39 |
||
| replacements | |||||
|
19
|
19
91301-P2F-A01 O-ring7.3X2.2 (NOK) |
91301-P2F-A01 |
US $5.39 |
||
|
19
|
19
16074-ZY3-000 O-ring |
16074-ZY3-000 |
from US $4.14 |
||
|
20
|
20
92900-06032-0B BoltSTUD, 6X32 |
92900-06032-0B |
from US $0.74 |
||
| replacement | |||||
|
20
|
20
92900-06032-0E Bolt 2, stud (6x32) |
92900-06032-0E |
from US $0.89 |
||
|
21
|
21
92900-06050-0B BoltSTUD, 6X50 |
92900-06050-0B |
US $0.81 |
||
|
22
|
22
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
23
|
23
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
