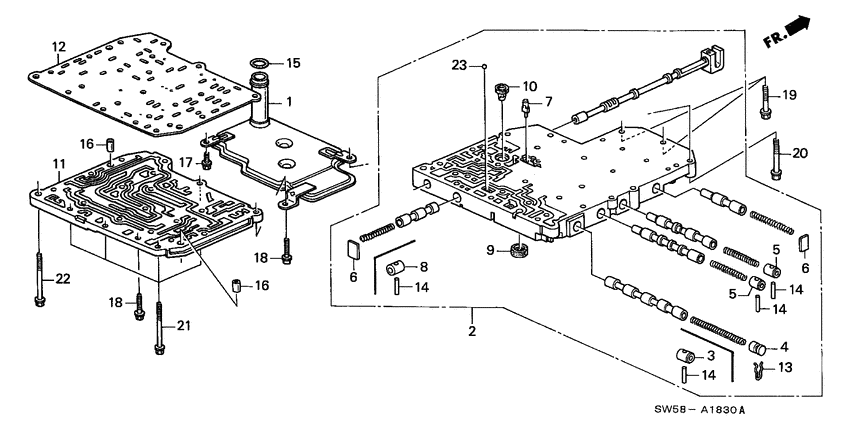

Main valve body (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25420-PY4-000
Strainer
|
25420-PY4-000 |
— | ||
|
2
|
2
27000-PY4-020
Body assy
|
27000-PY4-020 |
— | ||
|
3
|
3
27122-PW4-000
Cap
|
27122-PW4-000 |
— | ||
|
5
|
5
27132-PW4-000 CapSECOND & THIRD SHIFT VALVE |
27132-PW4-000 |
US $4.20 |
||
|
6
|
6
27263-PA9-000 Seat Valve Sping 1.0mmVALVE SPRING, 1.0MM |
27263-PA9-000 |
US $2.66 |
||
|
7
|
7
27563-PX4-000
Choke
|
27563-PX4-000 |
— | ||
|
8
|
8
27728-PF4-000 CapREVERSE CONTROL VALVE |
27728-PF4-000 |
US $1.54 |
||
|
9
|
9
27750-PL5-J01 FilterSECONDARY BODY |
27750-PL5-J01 |
US $5.91 |
||
|
10
|
10
27750-PW4-000
Filter
|
27750-PW4-000 |
— | ||
|
11
|
11
27911-PY4-010
Body
|
27911-PY4-010 |
— | ||
|
12
|
12
27912-PY4-030
Plate
|
27912-PY4-030 |
— | ||
|
14
|
14
91101-PF4-003 Roller3.5X21.8 |
91101-PF4-003 |
from US $1.19 |
||
|
15
|
15
91308-PA9-003 O-ring19.8X1.9 (ARAI) |
91308-PA9-003 |
from US $2.15 |
||
|
16
|
16
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
17
|
17
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
18
|
18
95701-060-250-8 BoltFLANGE, 6X25 |
95701-060-250-8 |
from US $0.59 |
||
|
19
|
19
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
20
|
20
95701-060-400-8 BoltFLANGE, 6X40 |
95701-060-400-8 |
from US $0.59 |
||
|
21
|
21
95701-060-500-8 BoltFLANGE, 6X50 |
95701-060-500-8 |
from US $0.74 |
||
|
22
|
22
95701-060-600-8 BoltFLANGE, 6X60 |
95701-060-600-8 |
from US $0.74 |
||
|
23
|
23
96211-07000 BallSTEEL, #7 (7/32) |
96211-07000 |
from US $0.15 |
