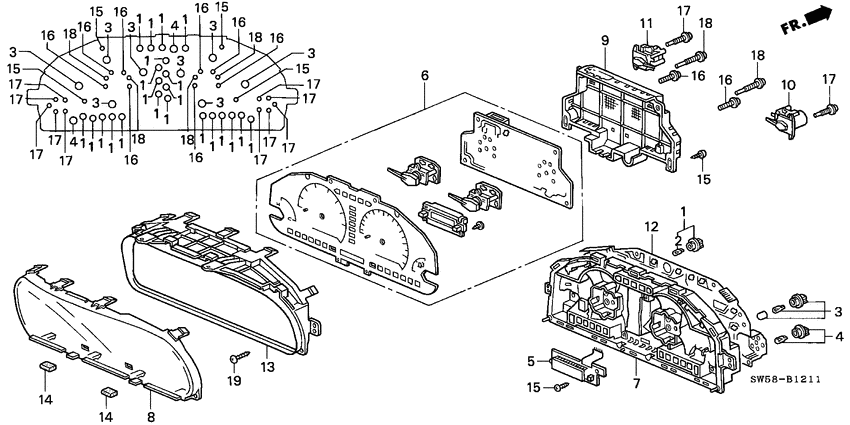

Meter components (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
35505-SA5-004 Bulb & socket14V 1.4W) (DENSO) (BASE:BLACK |
35505-SA5-004 |
US $3.50 |
||
|
2
|
2
35506-SA5-004
Bulb
|
35506-SA5-004 |
— | ||
| replacement | |||||
|
2
|
2
35506-SA5-003 Bulb14V 1.4W |
35506-SA5-003 |
from US $1.85 |
||
|
3
|
3
37102-SZ5-901
Socket assy
|
37102-SZ5-901 |
— | ||
|
4
|
4
37103-SR3-004
Socket assy
|
37103-SR3-004 |
— | ||
|
5
|
5
78102-SZ5-901
Circuit assy.
|
78102-SZ5-901 |
— | ||
|
6
|
6
78103-SZ5-911
Circuit meter
|
78103-SZ5-911 |
— | ||
|
7
|
7
78110-SZ5-901
Case assy.
|
78110-SZ5-901 |
— | ||
|
8
|
8
78115-SZ5-901
Glass
|
78115-SZ5-901 |
— | ||
|
9
|
9
78116-SZ5-901
Cover
|
78116-SZ5-901 |
— | ||
|
10
|
10
78130-SZ5-901
Meter assy
|
78130-SZ5-901 |
— | ||
|
11
|
11
78135-SZ5-901
Meter assy
|
78135-SZ5-901 |
— | ||
|
12
|
12
78145-SZ5-901
Panel
|
78145-SZ5-901 |
— | ||
|
13
|
13
78155-SZ5-901
Visor assy
|
78155-SZ5-901 |
— | ||
|
14
|
14
78175-SE3-004 GrommetDENSO |
78175-SE3-004 |
US $1.82 |
||
|
15
|
15
90102-SB2-004 ScrewTAPPING, 4X14 (DENSO) |
90102-SB2-004 |
US $1.96 |
||
|
16
|
16
90135-SH2-004
Screw-washer
|
90135-SH2-004 |
— | ||
|
17
|
17
90137-SR3-004
Screw
|
90137-SR3-004 |
— | ||
|
18
|
18
90137-ST7-003
Screw
|
90137-ST7-003 |
— | ||
|
19
|
19
93913-14420 ScrewTAPPING, 4X16(PO) |
93913-14420 |
from US $0.37 |
||
