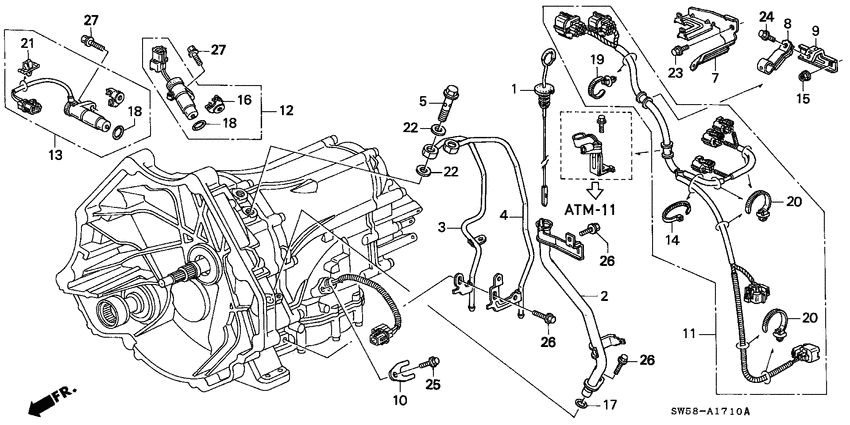

Oil level gauge/harness (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
25610-PY3-900
Gauge comp.
|
25610-PY3-900 |
— | ||
|
2
|
2
25613-P5G-000
Pipe comp
|
25613-P5G-000 |
— | ||
|
3
|
3
25910-P5H-000 Pipe comp. bATF COOLER |
25910-P5H-000 |
US $28.29 |
||
|
4
|
4
25920-PY4-J00 Pipe comp. aATF COOLER |
25920-PY4-J00 |
US $28.29 |
||
|
5
|
5
25951-PY4-003 BoltJOINT |
25951-PY4-003 |
US $7 |
||
|
7
|
7
28156-P5G-000
Stay a
|
28156-P5G-000 |
— | ||
|
8
|
8
28157-P5G-000
Clamp b
|
28157-P5G-000 |
— | ||
|
9
|
9
28158-P5G-000
Stay comp
|
28158-P5G-000 |
— | ||
|
10
|
10
28261-PY4-000
Stopper
|
28261-PY4-000 |
— | ||
|
11
|
11
28800-P5H-000
Sub harness
|
28800-P5H-000 |
— | ||
|
12
|
12
28810-PY4-E01 Pick up assy.MAIN (TEC) |
28810-PY4-E01 |
US $87.04 |
||
|
13
|
13
28820-P5H-003 Pick up assy.COUNTER (HADSYS) |
28820-P5H-003 |
US $84.48 |
||
|
14
|
14
32751-PM3-003 BandHARNESS CLAMP |
32751-PM3-003 |
US $3.08 |
||
|
15
|
15
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
16
|
16
90560-PL5-N00
Washer
|
90560-PL5-N00 |
— | ||
|
17
|
17
91308-PH0-013 O-ring17.8X1.9 (NOK) |
91308-PH0-013 |
US $1.55 |
||
|
18
|
18
91309-PX4-003 O-ring16X2.1 (NOK) |
91309-PX4-003 |
from US $1.92 |
||
|
19
|
19
91540-SV4-003 ClipHARNESS BAND (NATURAL) (145.2MM) |
91540-SV4-003 |
from US $2.81 |
||
|
20
|
20
91551-SF4-003 BandWIRE HARNESS(BROWN) (110MM) |
91551-SF4-003 |
from US $2.59 |
||
|
21
|
21
91558-SE3-003 ClipHOOD WIRE |
91558-SE3-003 |
US $4 |
||
|
22
|
22
94109-14000 WASHER, DRAIN PLUG (14MM)DRAIN PLUG WASHER, 14MM |
94109-14000 |
from US $0.38 |
||
|
23
|
23
95701-060-100-7 BoltFLANGE, 6X10 |
95701-060-100-7 |
from US $0.52 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
25
|
25
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
26
|
26
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
27
|
27
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
