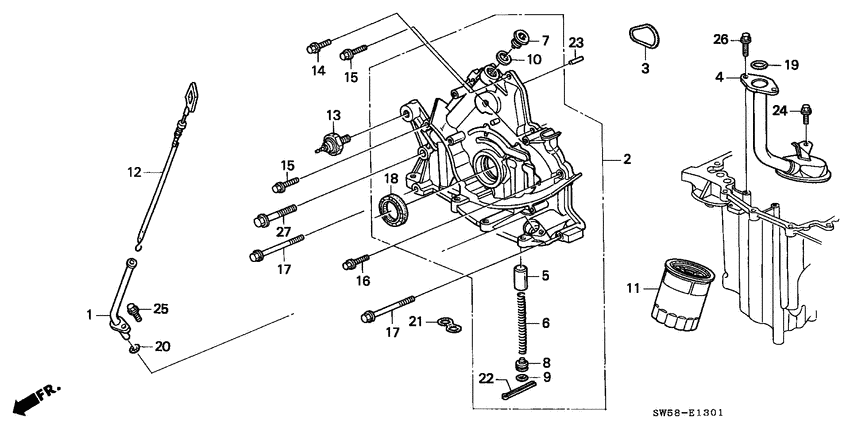

Oil pump (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
11110-PY3-000
Pipe comp
|
11110-PY3-000 |
— | ||
|
2
|
2
15100-P5G-004
Pump assy.
|
15100-P5G-004 |
— | ||
|
3
|
3
15115-PY3-000
Packing
|
15115-PY3-000 |
— | ||
|
4
|
4
15220-P5A-000
Strainer comp.
|
15220-P5A-000 |
— | ||
|
5
|
5
15231-PY3-000
Valve
|
15231-PY3-000 |
— | ||
|
6
|
6
15232-PY3-000
Spring
|
15232-PY3-000 |
— | ||
|
7
|
7
15233-PC6-000 BoltSEALING, 18MM |
15233-PC6-000 |
from US $2.38 |
||
|
8
|
8
15233-PY3-000
Seat
|
15233-PY3-000 |
— | ||
|
9
|
9
15234-PY3-000 O-ring13.8X2.4 |
15234-PY3-000 |
US $1.61 |
||
|
10
|
10
15237-PY3-000 WasherSEALING, 18MM |
15237-PY3-000 |
US $9.30 |
||
|
11
|
11
15400-PL2-305 CartridgeOIL FILTER (TOYO ROKI) |
15400-PL2-305 |
US $17 |
||
| replacement | |||||
|
11
|
11
15400-PL2-306 OIL FILTER (TOYO ROKI) |
15400-PL2-306 |
US $18.70 |
||
|
12
|
12
15650-PY3-004
Gauge comp.
|
15650-PY3-004 |
— | ||
|
13
|
13
37240-PT0-014 SwitchOIL PRESSURE (TEC) |
37240-PT0-014 |
from US $25.58 |
||
|
13
|
13
37240-PT0-023
Switch
|
37240-PT0-023 |
— | ||
| replacement | |||||
|
13
|
13
37240-PT0-014 SwitchOIL PRESSURE (TEC) |
37240-PT0-014 |
from US $25.58 |
||
|
14
|
14
90051-PH7-000 BoltFLANGE, 6X18 |
90051-PH7-000 |
US $2.10 |
||
|
15
|
15
90051-PY3-000 BoltFLANGE, 6X28 |
90051-PY3-000 |
US $1.96 |
||
|
16
|
16
90052-PH7-000 BoltFLANGE, 6X22 |
90052-PH7-000 |
US $1.72 |
||
|
17
|
17
90053-PY3-000 BoltFLANGE, 8X60 |
90053-PY3-000 |
US $3.08 |
||
|
18
|
18
91212-P5G-004
Oil seal
|
91212-P5G-004 |
— | ||
|
19
|
19
91308-PY3-000
O-ring
|
91308-PY3-000 |
— | ||
|
20
|
20
91309-PJ7-010 O-ring11.5X3.5 |
91309-PJ7-010 |
from US $1.70 |
||
|
21
|
21
91318-PY3-000 PackingOIL PUMP |
91318-PY3-000 |
US $14.81 |
||
|
22
|
22
94201-30350 PinSPLIT, 3.0X35 |
94201-30350 |
from US $0.44 |
||
|
23
|
23
94301-06100 Dowel pin6X10 |
94301-06100 |
from US $0.89 |
||
|
24
|
24
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
25
|
25
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
26
|
26
95701-060-180-8 Bolt, FLANGE, 6X18 |
95701-060-180-8 |
from US $0.34 |
||
|
27
|
27
95701-100-450-8 BoltFLANGE, 10X45 |
95701-100-450-8 |
from US $0.89 |
||
