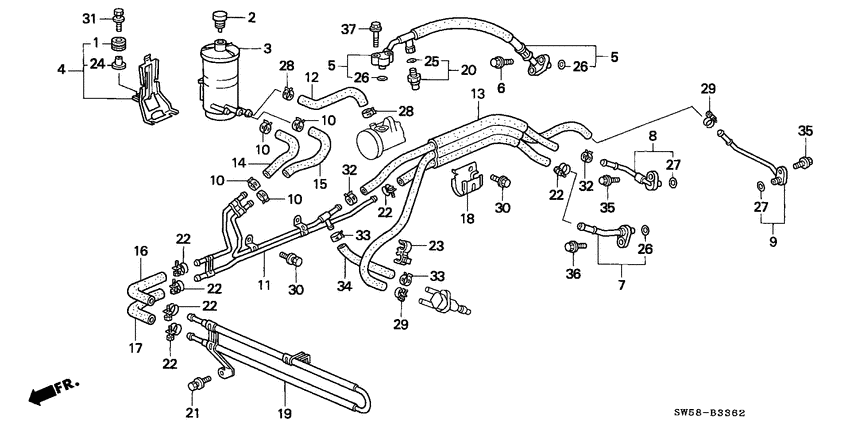

P.s. line (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
38608-692-000 RubberMOUNTING |
38608-692-000 |
US $3.29 |
||
|
2
|
2
53697-SB3-952 CapOIL TANK |
53697-SB3-952 |
from US $7.55 |
||
|
3
|
3
53701-SP0-013
Tank comp.
|
53701-SP0-013 |
— | ||
|
4
|
4
53711-SP0-000
Bracket assy
|
53711-SP0-000 |
— | ||
|
5
|
5
53713-SZ5-004
Hose comp.
|
53713-SZ5-004 |
— | ||
|
6
|
6
53717-SF1-950
Bolt
|
53717-SF1-950 |
— | ||
|
7
|
7
53720-SZ5-000
Pipe comp
|
53720-SZ5-000 |
— | ||
|
8
|
8
53724-SZ5-000
Pipe comp
|
53724-SZ5-000 |
— | ||
|
9
|
9
53726-SZ5-000
Pipe comp
|
53726-SZ5-000 |
— | ||
|
10
|
10
53729-671-003 Clamp d15.5MM |
53729-671-003 |
from US $3.51 |
||
|
11
|
11
53730-SZ5-020
Pipe comp
|
53730-SZ5-020 |
— | ||
|
12
|
12
53731-SZ5-000
Tube
|
53731-SZ5-000 |
— | ||
|
13
|
13
53732-SZ5-020
Hose comp.
|
53732-SZ5-020 |
— | ||
|
14
|
14
53733-SP0-000
Tube
|
53733-SP0-000 |
— | ||
|
15
|
15
53733-SZ5-000
Hose
|
53733-SZ5-000 |
— | ||
|
16
|
16
53734-SP0-A01
Hose b
|
53734-SP0-A01 |
— | ||
|
17
|
17
53735-SP0-A01
Hose a
|
53735-SP0-A01 |
— | ||
|
18
|
18
53750-SP0-000
Stay
|
53750-SP0-000 |
— | ||
|
19
|
19
53765-SZ5-000 Cooler compPOWER STEERING OIL |
53765-SZ5-000 |
US $122.24 |
||
|
20
|
20
56490-P5G-003
Switch assy
|
56490-P5G-003 |
— | ||
|
21
|
21
90161-SP0-950
Bolt-washer
|
90161-SP0-950 |
— | ||
|
22
|
22
90635-SM4-A01
Clip
|
90635-SM4-A01 |
— | ||
| replacement | |||||
|
22
|
22
90635-SM4-A02 ClipOIL HOSE (MEIJI) |
90635-SM4-A02 |
from US $4.12 |
||
|
23
|
23
90661-SP0-003
Clip
|
90661-SP0-003 |
— | ||
|
24
|
24
90854-SL4-950
Collar
|
90854-SL4-950 |
— | ||
|
25
|
25
91304-PA6-003 O-ring7.8X1.9 |
91304-PA6-003 |
US $1.48 |
||
|
26
|
26
91370-SB3-950 O-ring8.8X1.9 |
91370-SB3-950 |
from US $1.89 |
||
|
27
|
27
91370-SP0-003 O-ring6.8X1.9 |
91370-SP0-003 |
from US $1.47 |
||
|
28
|
28
91405-PE0-003 ClampTUBE (D20) |
91405-PE0-003 |
US $6.83 |
||
| replacement | |||||
|
28
|
28
91417-SZ3-003 ClampFUEL TUBE (D20) (CHUO HATSUJO) |
91417-SZ3-003 |
from US $2.93 |
||
|
29
|
29
91410-SA1-950 ClipSENSOR HOSE |
91410-SA1-950 |
US $3.43 |
||
|
30
|
30
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
31
|
31
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
32
|
32
95002-410-000-4 ClampTUBE (D10) |
95002-410-000-4 |
from US $0.74 |
||
|
33
|
33
95002-412-000-4 ClampTUBE (D12) |
95002-412-000-4 |
from US $0.74 |
||
|
34
|
34
95005-752-502-0
Tube
|
95005-752-502-0 |
— | ||
|
35
|
35
95701-060-160-8 BoltFLANGE, 6X16 |
95701-060-160-8 |
from US $0.38 |
||
|
36
|
36
95701-080-200-8 BoltFLANGE, 8X20 |
95701-080-200-8 |
from US $0.58 |
||
|
37
|
37
95801-060-300-8 BoltFLANGE, 6X30 |
95801-060-300-8 |
from US $0.59 |
||
