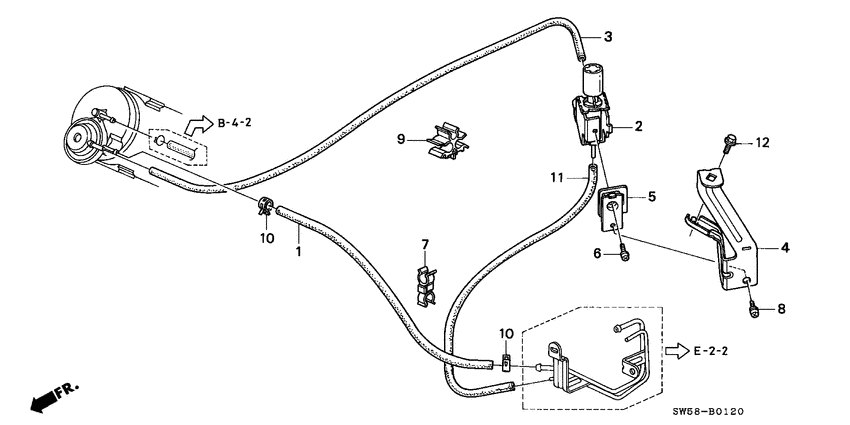

Purge control solenoid valve (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17725-SP0-932
Hose a
|
17725-SP0-932 |
— | ||
|
2
|
2
36160-P5G-901
Valve assy.
|
36160-P5G-901 |
— | ||
|
3
|
3
36212-P5G-900
Tube b
|
36212-P5G-900 |
— | ||
|
4
|
4
36213-P5G-901
Stay
|
36213-P5G-901 |
— | ||
|
5
|
5
36214-P5G-901
Mount
|
36214-P5G-901 |
— | ||
|
6
|
6
36215-P5G-901 Screw-washer5X8 |
36215-P5G-901 |
US $1.61 |
||
|
7
|
7
53721-SF1-951
Clip
|
53721-SF1-951 |
— | ||
|
8
|
8
90041-PM5-A01 Screw-washer5X8 |
90041-PM5-A01 |
US $2.03 |
||
|
9
|
9
91593-SP0-931
Clip
|
91593-SP0-931 |
— | ||
|
10
|
10
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
11
|
11
95005-351-701-Q Tube3.5X170 (95005-35001-10M) |
95005-351-701-Q |
US $2.37 |
||
|
12
|
12
95701-060-120-7 BoltFLANGE, 6X12 |
95701-060-120-7 |
from US $0.52 |
