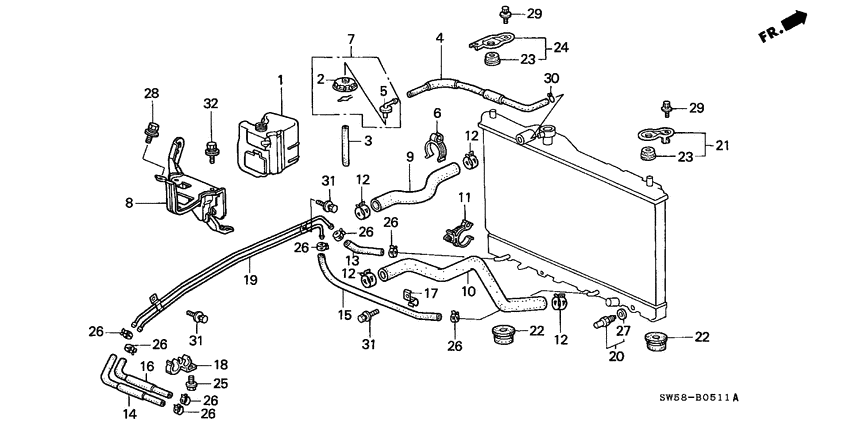

Radiator hose (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19101-P5G-000
Tank
|
19101-P5G-000 |
— | ||
|
3
|
3
19103-P5G-000 Hose, RESERVE TANK |
19103-P5G-000 |
US $4.88 |
||
|
4
|
4
19104-P5G-000
Tube
|
19104-P5G-000 |
— | ||
|
6
|
6
19109-PY3-003
Clamp
|
19109-PY3-003 |
— | ||
|
7
|
7
19110-P08-000 Cap setRESERVE TANK |
19110-P08-000 |
US $18.70 |
||
|
8
|
8
19120-P5G-000
Bracket comp.
|
19120-P5G-000 |
— | ||
|
9
|
9
19501-PY3-000
Hose
|
19501-PY3-000 |
— | ||
|
10
|
10
19502-PY3-010
Hose
|
19502-PY3-010 |
— | ||
|
11
|
11
19503-PY3-003 ClampWATER HOSE LOWER |
19503-PY3-003 |
US $2.94 |
||
|
12
|
12
19511-PT0-004
Clip
|
19511-PT0-004 |
— | ||
| replacement | |||||
|
12
|
12
19511-PH7-003 Clip, HOSE(36.5MM) (CHUO SPRING) |
19511-PH7-003 |
from US $3.94 |
||
|
13
|
13
25213-PY3-901 HoseATF, 185MM (BRIDGESTONE) |
25213-PY3-901 |
US $9.52 |
||
|
14
|
14
25214-PY3-901
Hose comp.
|
25214-PY3-901 |
— | ||
|
15
|
15
25215-PY3-902
Hose comp.
|
25215-PY3-902 |
— | ||
|
16
|
16
25216-PY3-901
Hose comp.
|
25216-PY3-901 |
— | ||
|
17
|
17
25217-PY3-900
Clamp
|
25217-PY3-900 |
— | ||
|
18
|
18
25218-PY3-900
Clamp comp
|
25218-PY3-900 |
— | ||
|
19
|
19
25930-PY3-900
Pipe comp. b
|
25930-PY3-900 |
— | ||
|
20
|
20
37773-PH2-004
Sensor
|
37773-PH2-004 |
— | ||
|
21
|
21
74171-SP0-000
Bracket
|
74171-SP0-000 |
— | ||
|
22
|
22
74172-SS0-000 CushionRADIATOR MOUNTING LOWER |
74172-SS0-000 |
from US $6.30 |
||
|
23
|
23
74173-SJ4-000 CushionRADIATOR MOUNTING UPPER |
74173-SJ4-000 |
from US $3.26 |
||
|
24
|
24
74176-SP0-000
Bracket
|
74176-SP0-000 |
— | ||
|
25
|
25
90109-SP0-000
Bolt
|
90109-SP0-000 |
— | ||
|
26
|
26
90635-PT0-802
Clip, Oil Pipe
|
90635-PT0-802 |
— | ||
| replacement | |||||
|
26
|
26
90635-RV0-003 CLIP, OIL PIPE |
90635-RV0-003 |
from US $3.32 |
||
|
27
|
27
91307-611-000 O-ring13.5X1.4 |
91307-611-000 |
from US $1.55 |
||
| replacement | |||||
|
27
|
27
91307-PH7-660 O-ring13.5X1.4 |
91307-PH7-660 |
from US $2.44 |
||
|
28
|
28
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
29
|
29
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
30
|
30
95002-70000 ClipTUBE (C11) |
95002-70000 |
from US $0.44 |
||
|
31
|
31
95701-060-100-8 BoltFLANGE, 6X10 |
95701-060-100-8 |
from US $0.52 |
||
|
32
|
32
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
