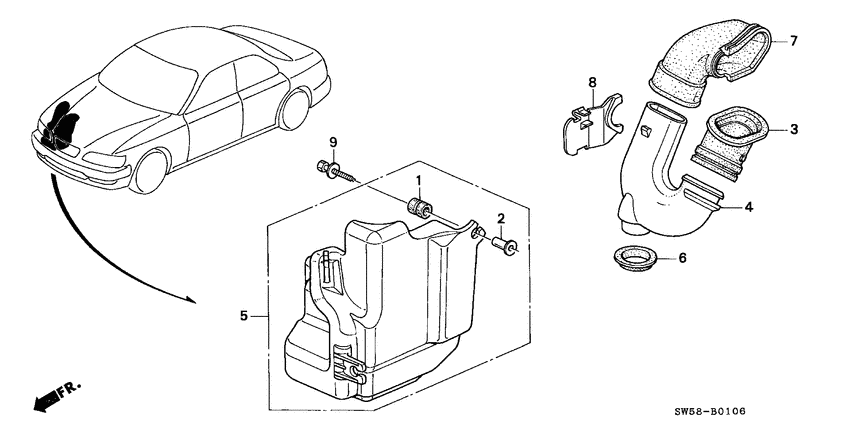

Resonator chamber (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17212-PN3-000
Rubber, AIR CLEANER MOUNTING
|
17212-PN3-000 |
— | ||
| replacement | |||||
|
1
|
1
17212-P2J-J00 Rubber, AIR CLEANER MOUNTING |
17212-P2J-J00 |
from US $2.69 |
||
|
2
|
2
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $2.29 |
||
|
3
|
3
17231-PY3-000
Joint
|
17231-PY3-000 |
— | ||
|
4
|
4
17242-P5G-000
Pipe
|
17242-P5G-000 |
— | ||
|
5
|
5
17246-P5G-000
Chamber assy
|
17246-P5G-000 |
— | ||
|
6
|
6
17247-P5G-000 RubberSEAL |
17247-P5G-000 |
US $5.32 |
||
|
7
|
7
17248-P5G-000
Joint
|
17248-P5G-000 |
— | ||
|
8
|
8
17250-P5G-000
Cover
|
17250-P5G-000 |
— | ||
|
9
|
9
90002-PS4-000 Bolt-washerSPECIAL, 6X39 |
90002-PS4-000 |
US $3.01 |
||
