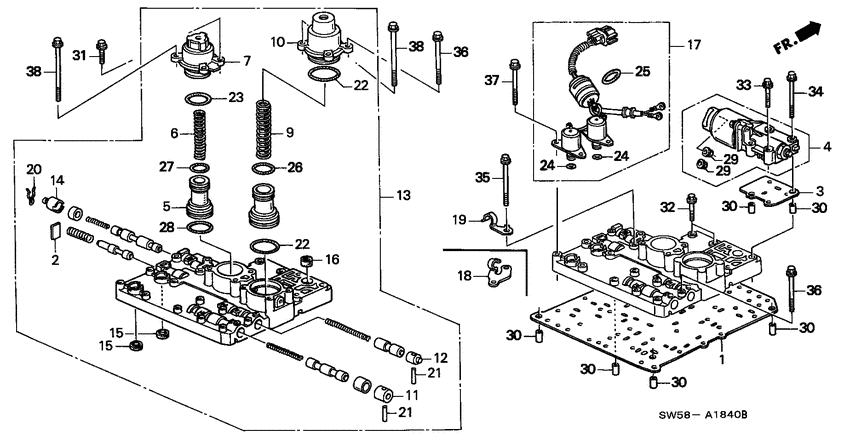

Secondary body (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
27112-P5H-000
Plate
|
27112-P5H-000 |
— | ||
|
2
|
2
27263-PA9-000 Seat Valve Sping 1.0mmVALVE SPRING, 1.0MM |
27263-PA9-000 |
US $2.66 |
||
|
3
|
3
27413-PY4-010 PlateTHROTTLE SEPARATING |
27413-PY4-010 |
US $5.18 |
||
|
4
|
4
27470-PY4-020
Valve body assy
|
27470-PY4-020 |
— | ||
|
5
|
5
27561-P5D-000
Piston
|
27561-P5D-000 |
— | ||
|
6
|
6
27562-PY4-A01
Spring
|
27562-PY4-A01 |
— | ||
|
7
|
7
27563-P5D-000
Cover
|
27563-P5D-000 |
— | ||
|
9
|
9
27581-PY4-010
Spring
|
27581-PY4-010 |
— | ||
|
10
|
10
27591-PY4-010
Cover
|
27591-PY4-010 |
— | ||
|
11
|
11
27645-PL1-000 CapLOCK UP CONTROL |
27645-PL1-000 |
US $3.78 |
||
|
12
|
12
27653-PF4-000 CapCLUTCH PRESSURE CONTROL VALVE |
27653-PF4-000 |
US $2.17 |
||
|
13
|
13
27700-PY4-A01
Body assy
|
27700-PY4-A01 |
— | ||
|
15
|
15
27750-PK4-003 FilterSECONDARY BODY |
27750-PK4-003 |
US $6.44 |
||
|
16
|
16
27750-PL5-J01 FilterSECONDARY BODY |
27750-PL5-J01 |
US $5.91 |
||
|
17
|
17
28200-PY4-004
Solenoid assy.
|
28200-PY4-004 |
— | ||
|
17
|
17
28200-PY4-003
Solenoid assy.
|
28200-PY4-003 |
— | ||
|
18
|
18
28291-PY4-000
Clamp
|
28291-PY4-000 |
— | ||
|
21
|
21
91101-PF4-003 Roller3.5X21.8 |
91101-PF4-003 |
from US $1.19 |
||
|
22
|
22
91302-PN6-004 O-ring34.3X2.4 (NOK) |
91302-PN6-004 |
US $2.29 |
||
|
23
|
23
91307-PA9-003 O-ring 31.2X1.9 (ARAI)31.2X1.9 (ARAI) |
91307-PA9-003 |
from US $2.44 |
||
|
24
|
24
91308-PY4-003 O-ring10.7X1.9 |
91308-PY4-003 |
from US $0.98 |
||
|
25
|
25
91311-PY4-003 O-ring27.5X2.4 |
91311-PY4-003 |
US $1.96 |
||
|
26
|
26
91324-PF4-004 O-ring28.3X2.4 (NOK) |
91324-PF4-004 |
from US $1.78 |
||
|
27
|
27
91326-PF4-004 O-ring24.4X2.4 (NOK) |
91326-PF4-004 |
from US $1.68 |
||
|
28
|
28
91344-580-000 O-ring31X2.7 (ARAI) |
91344-580-000 |
US $2 |
||
|
29
|
29
94050-05080 NutFLANGE, 5MM |
94050-05080 |
from US $0.44 |
||
|
30
|
30
94301-08140 Dowel pin8X14 |
94301-08140 |
from US $0.89 |
||
|
31
|
31
95701-060-200-8 BoltFLANGE, 6X20 |
95701-060-200-8 |
from US $0.52 |
||
|
32
|
32
95701-060-300-8 BoltFLANGE, 6X30 |
95701-060-300-8 |
from US $0.74 |
||
|
33
|
33
95701-060-350-8 BoltFLANGE, 6X35 |
95701-060-350-8 |
from US $0.59 |
||
|
34
|
34
95701-060-600-8 BoltFLANGE, 6X60 |
95701-060-600-8 |
from US $0.74 |
||
|
36
|
36
95701-060-650-8 BoltFLANGE, 6X65 |
95701-060-650-8 |
from US $0.81 |
||
|
37
|
37
95701-060-700-8 BoltFLANGE, 6X70 |
95701-060-700-8 |
from US $0.81 |
||
|
38
|
38
95701-060-950-8 BoltFLANGE, 6X95 |
95701-060-950-8 |
from US $0.93 |
