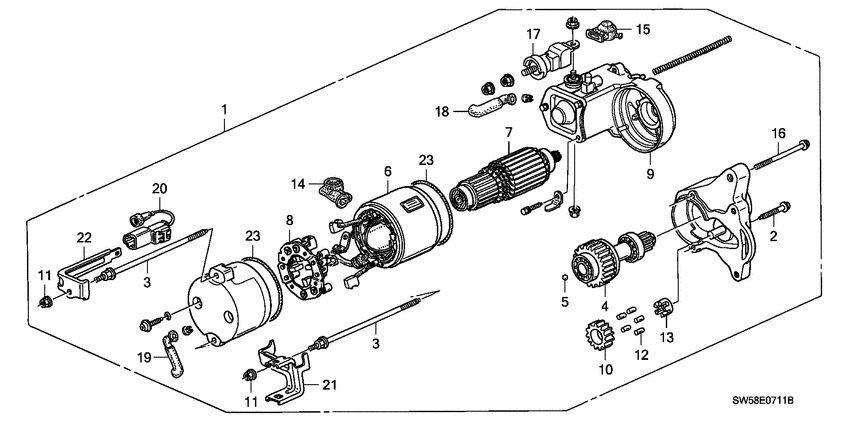

Starter motor (DENSO) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
31200-P5G-003
Motor assy.
|
31200-P5G-003 |
— | ||
|
2
|
2
31201-P5G-003
Screw
|
31201-P5G-003 |
— | ||
|
3
|
3
31202-P5G-003
Bolt
|
31202-P5G-003 |
— | ||
|
4
|
4
31204-P5G-003
Clutch comp.
|
31204-P5G-003 |
— | ||
|
5
|
5
31205-657-671 BallSTEEL (DENSO) |
31205-657-671 |
US $1.75 |
||
|
6
|
6
31206-P5G-003
Yoke comp.
|
31206-P5G-003 |
— | ||
|
7
|
7
31207-P5G-003
Armature comp.
|
31207-P5G-003 |
— | ||
|
8
|
8
31208-P5G-003
Plate comp
|
31208-P5G-003 |
— | ||
|
9
|
9
31210-P5G-003
Switch assy
|
31210-P5G-003 |
— | ||
|
10
|
10
31222-P5G-003
Gear
|
31222-P5G-003 |
— | ||
|
11
|
11
31223-P5G-003
Nut
|
31223-P5G-003 |
— | ||
|
12
|
12
31225-PB2-006 RollerBEARING (DENSO) |
31225-PB2-006 |
US $1.47 |
||
|
13
|
13
31226-PM3-J01 Retainer |
31226-PM3-J01 |
US $3.57 |
||
|
14
|
14
31235-P0A-003
Cover
|
31235-P0A-003 |
— | ||
|
15
|
15
31235-P5G-003
Cover
|
31235-P5G-003 |
— | ||
|
16
|
16
31249-P5G-003
Screw
|
31249-P5G-003 |
— | ||
|
17
|
17
31254-P5G-003
Terminal
|
31254-P5G-003 |
— | ||
|
18
|
18
31258-P5G-J01
Tube
|
31258-P5G-J01 |
— | ||
|
19
|
19
31258-P5G-003
Tube
|
31258-P5G-003 |
— | ||
|
20
|
20
31259-P5G-003
Harness comp.
|
31259-P5G-003 |
— | ||
|
21
|
21
31291-P5G-003
Stay
|
31291-P5G-003 |
— | ||
|
22
|
22
31292-P5G-003
Stay
|
31292-P5G-003 |
— | ||
|
23
|
23
31228-PC2-661 O-ringYOKE BODY |
31228-PC2-661 |
US $2.45 |
