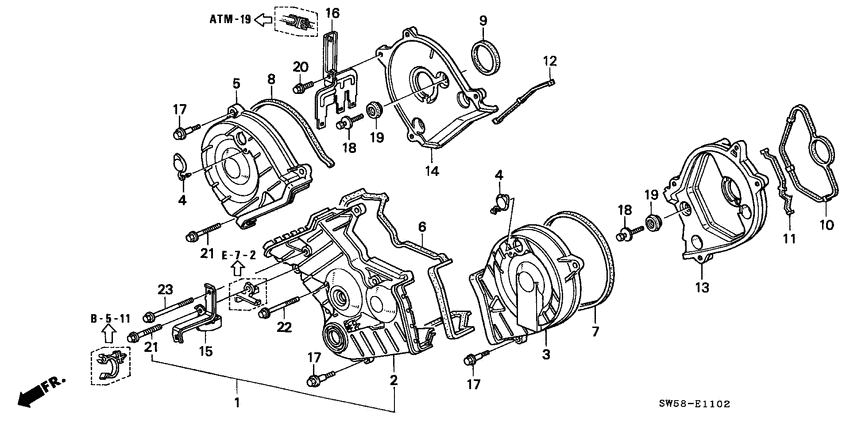

Timing belt cover (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
04111-PY3-000
Cover set
|
04111-PY3-000 |
— | ||
|
2
|
2
11810-PY3-010
Cover comp.
|
11810-PY3-010 |
— | ||
|
3
|
3
11820-PY3-000
Cover comp.
|
11820-PY3-000 |
— | ||
|
4
|
4
11825-PH7-000
Grommet
|
11825-PH7-000 |
— | ||
|
5
|
5
11830-PY3-000
Cover comp.
|
11830-PY3-000 |
— | ||
|
6
|
6
11841-PY3-000
Packing
|
11841-PY3-000 |
— | ||
|
7
|
7
11843-PY3-000
Packing
|
11843-PY3-000 |
— | ||
|
8
|
8
11844-PY3-000
Packing
|
11844-PY3-000 |
— | ||
|
9
|
9
11845-PY3-000
Packing a
|
11845-PY3-000 |
— | ||
|
10
|
10
11846-PY3-000 Packing aL. TIMING BELT PLATE |
11846-PY3-000 |
US $13.72 |
||
|
11
|
11
11847-PY3-000
Packing b
|
11847-PY3-000 |
— | ||
|
12
|
12
11849-PY3-000
Packing b
|
11849-PY3-000 |
— | ||
|
13
|
13
11860-PY3-000
Plate
|
11860-PY3-000 |
— | ||
|
14
|
14
11870-PY3-000
Plate
|
11870-PY3-000 |
— | ||
|
15
|
15
19506-PY3-000
Stay
|
19506-PY3-000 |
— | ||
|
16
|
16
32745-P5G-000
Stay comp. f
|
32745-P5G-000 |
— | ||
|
17
|
17
90007-679-000 Bolt aTIMING BELT COVER |
90007-679-000 |
from US $2.22 |
||
|
18
|
18
90047-PH7-000 Bolt-washer6X22 |
90047-PH7-000 |
US $1.63 |
||
|
19
|
19
90423-PY3-000 RubberTIMING BELT PLATE MOUNTING |
90423-PY3-000 |
US $4.23 |
||
|
20
|
20
95701-060-140-8 BoltFLANGE, 6X14 |
95701-060-140-8 |
from US $0.52 |
||
|
21
|
21
95701-060-280-8 BoltFLANGE, 6X28 |
95701-060-280-8 |
from US $0.74 |
||
|
22
|
22
95701-060-450-8 BoltFLANGE, 6X45 |
95701-060-450-8 |
from US $0.74 |
||
|
23
|
23
95701-060-500-8 BoltFLANGE, 6X50 |
95701-060-500-8 |
from US $0.74 |
