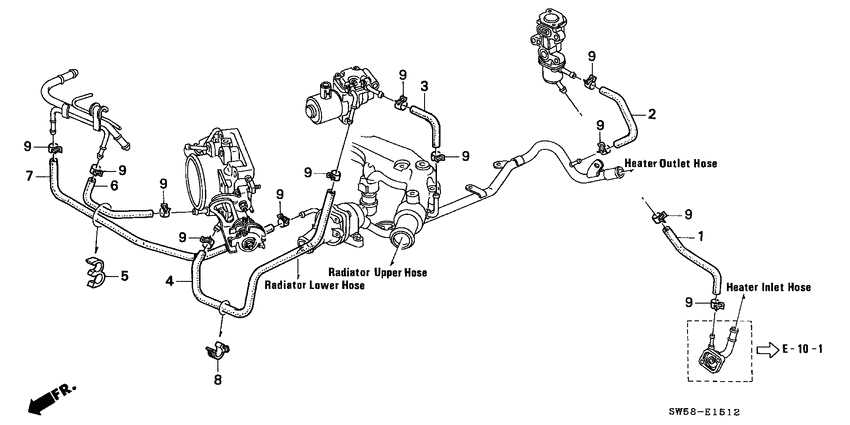

Water hose (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
19522-PY3-000
Hose a
|
19522-PY3-000 |
— | ||
|
2
|
2
19523-P5G-000
Hose b
|
19523-P5G-000 |
— | ||
|
3
|
3
19524-PY3-000
Hose c
|
19524-PY3-000 |
— | ||
|
4
|
4
19525-PY3-000 Hose dWATER |
19525-PY3-000 |
US $10.80 |
||
|
5
|
5
19526-PN4-000 ClampTUBE |
19526-PN4-000 |
from US $1.47 |
||
|
6
|
6
19526-PY3-000
Hose e
|
19526-PY3-000 |
— | ||
|
7
|
7
19527-PY3-000 Hose fWATER |
19527-PY3-000 |
US $9.77 |
||
|
8
|
8
19529-PY3-000
Clamp b
|
19529-PY3-000 |
— | ||
|
9
|
9
95002-412-500-4 ClampTUBE (D12.5) |
95002-412-500-4 |
from US $0.74 |
