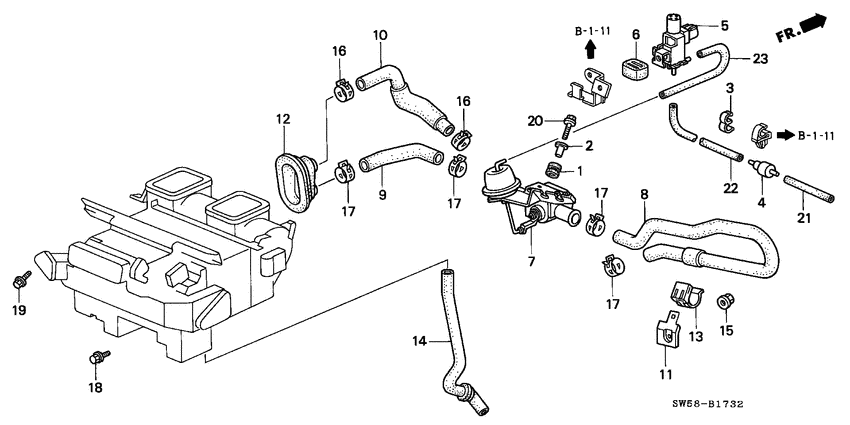

Water valve (V6) Diagram Honda 3.2TL
- Year
- 1996
- Model code
- 3.2TL
- Sales region
- General
- Engine
- C32A
- transmission
- 4AT
- Number of doors
- 4
- grade
- 3.2TL
- area code
- KU
- right-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16922-SH3-930 RubberMOUNTING |
16922-SH3-930 |
US $1.95 |
||
|
2
|
2
16923-SP0-930 CollarDISTANCE |
16923-SP0-930 |
US $4.47 |
||
|
3
|
3
17205-PC6-000 ClampTUBE, 7.5X2 |
17205-PC6-000 |
from US $2.17 |
||
|
4
|
4
36145-PM4-004 ValveCHECK |
36145-PM4-004 |
from US $18.50 |
||
|
5
|
5
50913-SW5-J81
Valve assy.
|
50913-SW5-J81 |
— | ||
|
6
|
6
50917-SW5-J80
Rubber
|
50917-SW5-J80 |
— | ||
|
7
|
7
79710-SZ5-003
Valve assy.
|
79710-SZ5-003 |
— | ||
|
8
|
8
79722-SZ5-000
Hose b
|
79722-SZ5-000 |
— | ||
|
9
|
9
79723-SZ5-000
Hose c
|
79723-SZ5-000 |
— | ||
|
10
|
10
79725-SZ5-000
Hose
|
79725-SZ5-000 |
— | ||
|
11
|
11
79729-SZ5-000
Stay
|
79729-SZ5-000 |
— | ||
|
12
|
12
79731-SL5-A00
Grommet
|
79731-SL5-A00 |
— | ||
|
13
|
13
79746-SL4-003 ClampHEATER HOSE |
79746-SL4-003 |
US $3.48 |
||
|
14
|
14
80271-SZ5-003
Hose
|
80271-SZ5-003 |
— | ||
|
15
|
15
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
16
|
16
90661-SL5-003 Clip, WATER HOSE |
90661-SL5-003 |
US $3.99 |
||
|
17
|
17
91405-PK1-003
Clip, WATER HOSE, 24MM
|
91405-PK1-003 |
— | ||
| replacement | |||||
|
17
|
17
19513-PE0-003 ClampWATER HOSE (21.7MM) (CHUO SPRING) |
19513-PE0-003 |
from US $2.75 |
||
|
18
|
18
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
19
|
19
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
20
|
20
93405-060-250-5 Bolt-washer6X25 |
93405-060-250-5 |
US $0.74 |
||
|
21
|
21
95005-350-501-0 Tube3.5X50(95005-35001-10M) |
95005-350-501-0 |
US $0.89 |
||
|
22
|
22
95005-351-751-0 Tube3.5X175 (95005-35001-10M) |
95005-351-751-0 |
US $2.37 |
||
|
23
|
23
95005-352-001-0
Tube
|
95005-352-001-0 |
— | ||
