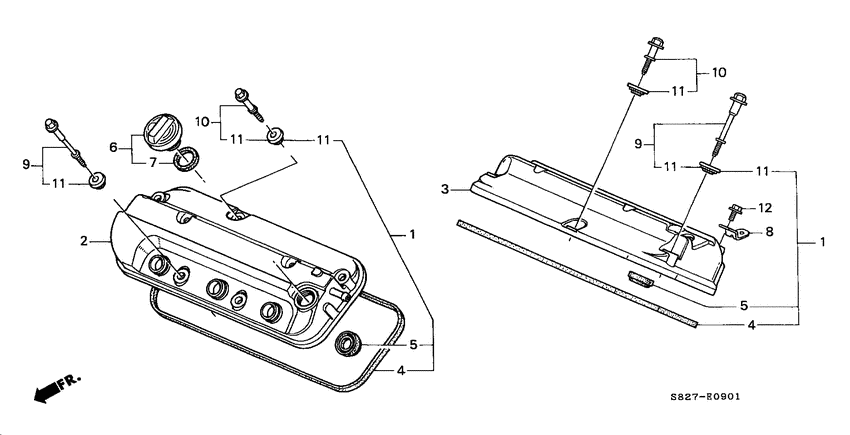

Cylinder head cover (V6) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KE
- right-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
12030-P8C-A00
Packing set
|
12030-P8C-A00 |
— | ||
|
2
|
2
12310-P8F-A10 Cover comp.FR. CYLINDER HEAD |
12310-P8F-A10 |
US $202.24 |
||
|
3
|
3
12320-P8F-A10 Cover comp.RR. CYLINDER HEAD |
12320-P8F-A10 |
US $202.24 |
||
|
4
|
4
12341-P8A-A00 PackingHEAD COVER |
12341-P8A-A00 |
from US $23.90 |
||
|
5
|
5
12342-P8A-A01 Packing bHEAD COVER (CR INDUSTRIES) |
12342-P8A-A01 |
US $6.86 |
||
|
6
|
6
15610-P5G-000 Cap assy.OIL FILLER |
15610-P5G-000 |
US $38 |
||
|
7
|
7
15613-PC6-000 Packing, Oil Filler |
15613-PC6-000 |
from US $4 |
||
|
9
|
9
90010-P8A-A00 Bolt aHEAD COVER |
90010-P8A-A00 |
from US $9.16 |
||
|
10
|
10
90012-P8A-A00 Bolt bHEAD COVER |
90012-P8A-A00 |
from US $7.98 |
||
|
11
|
11
90442-P8A-A00 WasherHEAD COVER |
90442-P8A-A00 |
from US $3.96 |
