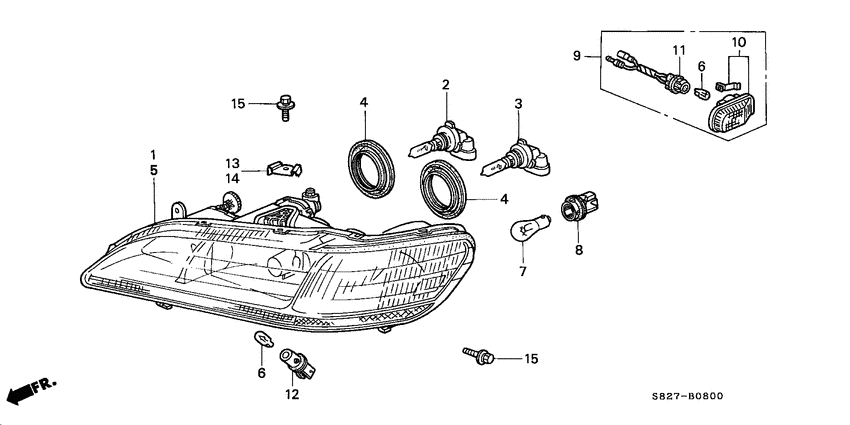

Headlight Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KE
- right-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
33101-S82-E11
Headlight unit
|
33101-S82-E11 |
— | ||
|
1
|
1
33101-S82-G11
Headlight unit
|
33101-S82-G11 |
— | ||
|
2
|
2
33115-S84-A11 BulbHEADLIGHT (HB3) (12V 60W) (STANLEY) |
33115-S84-A11 |
US $22.44 |
||
|
2
|
2
33115-S84-A01 BulbHEADLIGHT (HB3) (12V 60W) (SYLVANIA) |
33115-S84-A01 |
from US $15.35 |
||
|
3
|
3
33116-S84-A01 BulbHEADLIGHT (HB4) (12V 51W) (SYLVANIA) |
33116-S84-A01 |
US $19.20 |
||
|
3
|
3
33116-S84-A11 BulbHEADLIGHT (HB4) (12V 51W) (STANLEY) |
33116-S84-A11 |
US $19.20 |
||
|
4
|
4
33126-S73-A01 CoverRUBBER |
33126-S73-A01 |
US $10.78 |
||
|
5
|
5
33151-S82-E11
Headlight unit
|
33151-S82-E11 |
— | ||
|
5
|
5
33151-S82-G11
Headlight unit
|
33151-S82-G11 |
— | ||
|
6
|
6
33301-SA0-741 Bulb (12V 5W)(12V 5W) (STANLEY) |
33301-SA0-741 |
from US $2.37 |
||
|
7
|
7
33301-S04-003
Bulb
|
33301-S04-003 |
— | ||
| replacement | |||||
|
7
|
7
33301-S04-004 BulbFR. TURN(12V 21W) (STANLEY)(AMBER) |
33301-S04-004 |
from US $5.92 |
||
|
7
|
7
33301-S04-004 BulbFR. TURN(12V 21W) (STANLEY)(AMBER) |
33301-S04-004 |
from US $5.92 |
||
|
8
|
8
33303-S04-003 Socket comp.GRAY |
33303-S04-003 |
from US $10.35 |
||
|
9
|
9
33800-SL0-J01
Light assy
|
33800-SL0-J01 |
— | ||
|
10
|
10
33801-SF4-J01 Lens |
33801-SF4-J01 |
US $21.62 |
||
|
11
|
11
33802-SL0-J01 Cord comp |
33802-SL0-J01 |
US $6.58 |
||
|
12
|
12
34303-SS1-003
Socket comp
|
34303-SS1-003 |
— | ||
|
13
|
13
74190-S84-A00 BracketR. FR. |
74190-S84-A00 |
US $4.34 |
||
|
14
|
14
74195-S84-A00 BracketL. FR. |
74195-S84-A00 |
US $4.34 |
||
|
15
|
15
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
