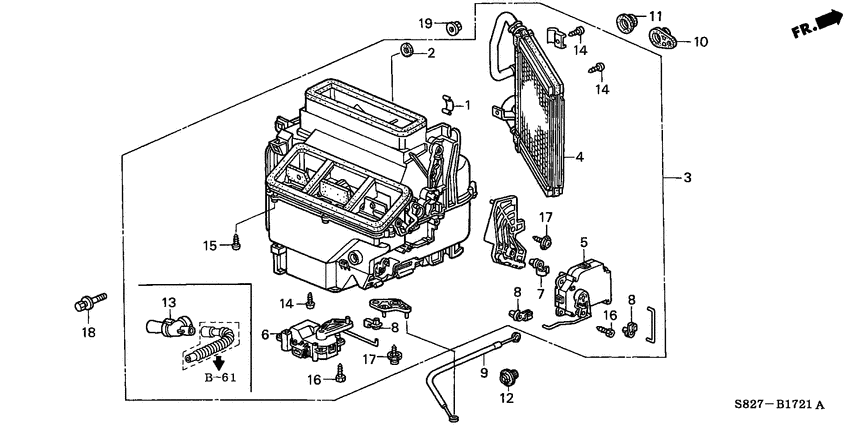

Heater unit (RH) Diagram Honda ACCORD
- Year
- 2001
- Model code
- ACCORD COUPE
- Sales region
- General
- Engine
- J30A
- transmission
- 4AT
- Number of doors
- 2
- grade
- 3.0IV6
- area code
- KE
- right-hand drive
- +
- leather seat
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
39246-671-003
Clamp
|
39246-671-003 |
— | ||
|
2
|
2
39248-692-003 PackingHEATER |
39248-692-003 |
US $1.54 |
||
|
3
|
3
79100-S87-E41
Heater unit
|
79100-S87-E41 |
— | ||
|
4
|
4
79110-S87-E01
Core comp
|
79110-S87-E01 |
— | ||
|
5
|
5
79140-S84-E01
Motor assy.
|
79140-S84-E01 |
— | ||
|
6
|
6
79160-S84-E01
Motor assy.
|
79160-S84-E01 |
— | ||
|
7
|
7
79192-SR3-003 BushLINK |
79192-SR3-003 |
US $1.47 |
||
|
8
|
8
79195-SF1-003 HolderROD |
79195-SF1-003 |
US $1.82 |
||
|
9
|
9
79544-S84-A01 CableWATER VALVE CONTROL |
79544-S84-A01 |
US $7.70 |
||
|
10
|
10
79731-S84-A00 GrommetHEATER PIPE |
79731-S84-A00 |
US $7 |
||
|
11
|
11
79760-SE0-000 GrommetHEATER PIPE |
79760-SE0-000 |
US $3.01 |
||
|
13
|
13
80534-S84-A41 Aspirator |
80534-S84-A41 |
from US $15.42 |
||
|
14
|
14
90122-SR3-003 ScrewTAPPING, 5X12 |
90122-SR3-003 |
US $1.12 |
||
|
15
|
15
90127-SX0-003 ScrewTAPPING, 4X16 |
90127-SX0-003 |
US $1.05 |
||
|
16
|
16
90127-S84-003 ScrewTAPPING, 4X16 |
90127-S84-003 |
US $1.05 |
||
|
17
|
17
90133-SR3-003 Screw-washer4X16 |
90133-SR3-003 |
from US $1.12 |
||
|
18
|
18
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
19
|
19
94071-08080 Nut-washer8MM |
94071-08080 |
from US $0.52 |
