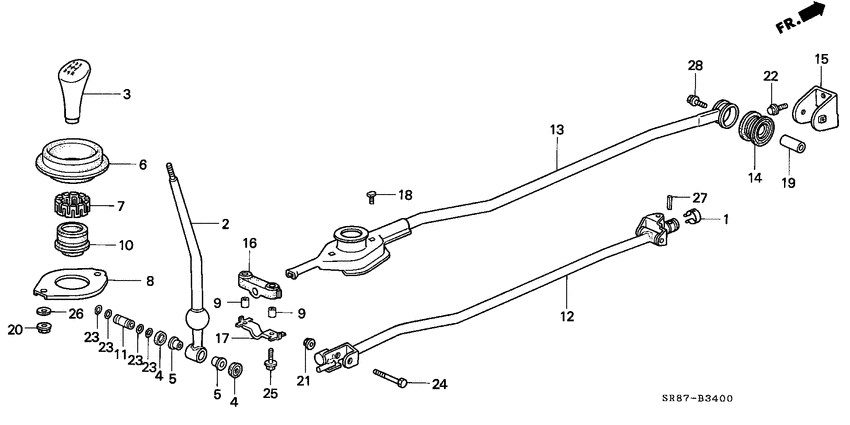

Shift lever Diagram Honda CIVIC
- Year
- 1994
- Model code
- CIVIC COUPE
- Sales region
- General
- Engine
- D16Z
- transmission
- 5MT
- Number of doors
- 2
- grade
- ESI
- area code
- KG
- left-hand drive
- +
- sunroof
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
24313-PF5-000
Clip
|
24313-PF5-000 |
— | ||
| replacement | |||||
|
1
|
1
54113-611-505 CLIP, SHIFT JOINT |
54113-611-505 |
US $3.11 |
||
|
2
|
2
54101-SH3-010
Lever
|
54101-SH3-010 |
— | ||
|
3
|
3
54102-SH3-901ZC Knob comp.CHANGE LEVER *NH1L* |
54102-SH3-901ZC |
US $47.84 |
||
|
4
|
4
54105-692-010
Washer
|
54105-692-010 |
— | ||
|
5
|
5
54107-SA0-010 Bush, RR. JOINT |
54107-SA0-010 |
from US $5.44 |
||
|
6
|
6
54109-SA7-000 Seal A, CHANGE LEVER DUST |
54109-SA7-000 |
from US $19.06 |
||
|
7
|
7
54110-SH3-003 SeatCHANGE LEVER BALL |
54110-SH3-003 |
from US $11.70 |
||
|
8
|
8
54111-SH3-000 HolderCHANGE BALL |
54111-SH3-000 |
US $7.98 |
||
|
9
|
9
54114-SB2-000 CollarPIPE MOUNTING |
54114-SB2-000 |
US $4.07 |
||
|
10
|
10
54115-SH3-000 Dust seal B, Change |
54115-SH3-000 |
from US $9.23 |
||
|
11
|
11
54117-SH3-000 CollarRR. JOINT |
54117-SH3-000 |
from US $14.16 |
||
|
12
|
12
54201-SR3-A01
Rod comp
|
54201-SR3-A01 |
— | ||
|
13
|
13
54301-SR3-A00 ExtensionCHANGE |
54301-SR3-A00 |
US $75.48 |
||
|
14
|
14
54303-SF4-000 RubberEXTENSION END |
54303-SF4-000 |
from US $5.45 |
||
|
15
|
15
54304-SH3-020 BracketEXTENSION |
54304-SH3-020 |
US $8.54 |
||
|
16
|
16
54306-SH3-000 Rubber, EXTENSION MOUNTING |
54306-SH3-000 |
from US $9.32 |
||
|
17
|
17
54307-SH3-010 StopperEXTENSION MOUNTING |
54307-SH3-010 |
from US $5.17 |
||
|
18
|
18
54308-SH3-000 BoltEXTENSION |
54308-SH3-000 |
US $4.23 |
||
|
19
|
19
54309-SH3-000
Collar
|
54309-SH3-000 |
— | ||
|
20
|
20
90114-SA0-000 NutSELF-LOCK, 6MM |
90114-SA0-000 |
from US $1.70 |
||
|
21
|
21
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) |
90115-659-003 |
from US $1.05 |
||
|
22
|
22
90117-HA7-670 BoltFLANGE, 8X18 |
90117-HA7-670 |
US $2.53 |
||
|
23
|
23
91301-671-671
O-ring
|
91301-671-671 |
— | ||
| replacement | |||||
|
23
|
23
91303-HA0-004 O-ring, 11x1.9 (nok) |
91303-HA0-004 |
from US $1.28 |
||
|
24
|
24
92201-08050-0H BoltHEX., 8X50 |
92201-08050-0H |
from US $0.74 |
||
|
25
|
25
93402-080-400-8 Bolt-washer8X40 |
93402-080-400-8 |
from US $0.54 |
||
|
26
|
26
94101-06800 WasherPLAIN, 6MM |
94101-06800 |
from US $0.37 |
||
|
27
|
27
94305-80222 PinSPRING, 8X22 |
94305-80222 |
from US $1.04 |
||
|
28
|
28
95801-080-450-8 BoltFLANGE, 8X45 |
95801-080-450-8 |
from US $0.81 |
||
