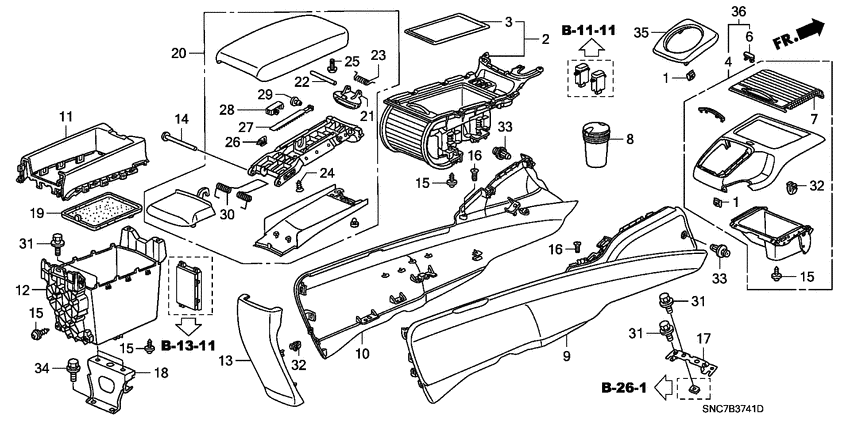

Console (RH) Diagram Honda CIVIC
- Year
- 2011
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX ALCANT
- area code
- KE
- right-hand drive
- +
- navigation
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
77205-S0X-A01 ClipSNAP FITTING |
77205-S0X-A01 |
from US $1.66 |
||
|
2
|
2
77230-SNB-E22ZA Holder assy.CUP *NH608L* |
77230-SNB-E22ZA |
US $167.68 |
||
|
3
|
3
77231-SNA-U01ZA MatCUP HOLDER *NH167L* |
77231-SNA-U01ZA |
US $5.88 |
||
|
6
|
6
77297-SNB-003ZB LidSHIFT LOCK *NH608L* |
77297-SNB-003ZB |
from US $4.48 |
||
|
7
|
7
77299-SNB-013ZB DoorPOCKET *NH608L* |
77299-SNB-013ZB |
US $38.27 |
||
|
8
|
8
77700-SNB-010ZA Ashtray assy.FR. *NH167L* |
77700-SNB-010ZA |
US $34.56 |
||
|
9
|
9
83401-SNA-U02ZD PanelDRIVER SIDE *NH167L* |
83401-SNA-U02ZD |
US $41.86 |
||
|
10
|
10
83402-SNA-U02ZD PanelPASSENGER SIDE *NH167L* |
83402-SNA-U02ZD |
US $41.86 |
||
|
11
|
11
83403-SNA-A02ZA BoxUPPER CONSOLE *NH167L* |
83403-SNA-A02ZA |
US $11.90 |
||
|
12
|
12
83404-SND-E02ZA BoxLOWER CONSOLE (HFT) *NH167L* |
83404-SND-E02ZA |
US $25.22 |
||
|
13
|
13
83405-SNA-A02ZD GarnishRR. CONSOLE CENTER *NH167L* |
83405-SNA-A02ZD |
US $13.44 |
||
|
14
|
14
83406-SNA-A01 PinARMREST |
83406-SNA-A01 |
US $1.82 |
||
|
15
|
15
83407-SNA-A01 ScrewTAPPING, 4.2X12 (PO) |
83407-SNA-A01 |
US $1.33 |
||
|
16
|
16
83408-SNA-A01 ScrewTAPPING, 2.9X12 (PO) |
83408-SNA-A01 |
US $1.33 |
||
|
17
|
17
83417-SNA-A00 Bracket comp.CENTER CONSOLE (FR.) |
83417-SNA-A00 |
US $3.01 |
||
|
18
|
18
83418-SNA-A00 Bracket comp.CENTER CONSOLE (RR.) |
83418-SNA-A00 |
US $8.26 |
||
|
19
|
19
83419-SNA-A61ZA MatCONSOLE BOX *NH167L* |
83419-SNA-A61ZA |
US $7.56 |
||
|
20
|
20
83450-SND-013ZA Armrest assyCONSOLE *NH167L* |
83450-SND-013ZA |
US $200.96 |
||
|
21
|
21
83451-SNA-A01ZA LockARMREST *NH167L* |
83451-SNA-A01ZA |
from US $2.54 |
||
|
22
|
22
83452-SNA-A01 PinARMREST LOCK |
83452-SNA-A01 |
US $1.82 |
||
|
23
|
23
83453-SNA-A01 SpringARMREST LOCK |
83453-SNA-A01 |
US $3.89 |
||
|
24
|
24
83454-SNA-A01 ScrewTAPPING, 3.5X12 |
83454-SNA-A01 |
US $1.33 |
||
|
25
|
25
83455-SNA-A01 ScrewTAPPING, 4.2X10 |
83455-SNA-A01 |
US $1.33 |
||
|
26
|
26
83456-SNA-A01 ClipARMREST DETENT |
83456-SNA-A01 |
US $1.82 |
||
|
27
|
27
83457-SNA-A01 PlateDAMPER GEAR |
83457-SNA-A01 |
US $2.59 |
||
|
28
|
28
83458-SNA-A01 DamperARMREST |
83458-SNA-A01 |
US $2.59 |
||
|
29
|
29
83459-SNA-A01 ClipDAMPER |
83459-SNA-A01 |
US $1.61 |
||
|
30
|
30
83460-SNA-A01
Spring
|
83460-SNA-A01 |
— | ||
|
31
|
31
90140-SH3-003 Bolt-washer5X18 |
90140-SH3-003 |
US $2.44 |
||
|
32
|
32
90666-SDA-A01 ClipSNAP FITTING(PO) (NATURAL) |
90666-SDA-A01 |
from US $2.70 |
||
|
33
|
33
91550-S50-G01ZE ClipTAILGATE *NH167L* |
91550-S50-G01ZE |
US $1.47 |
||
|
34
|
34
93403-060-120-8 Bolt-washer6X12 |
93403-060-120-8 |
from US $0.45 |
||
|
35
|
35
77296-SNA-U31ZA PanelFR. INNER (AT) *NH609L* |
77296-SNA-U31ZA |
US $36.74 |
||
|
36
|
36
77295-SNB-J52ZC Panel assy.CENTER CONSOLE *NH608L 1* |
77295-SNB-J52ZC |
US $94.72 |
