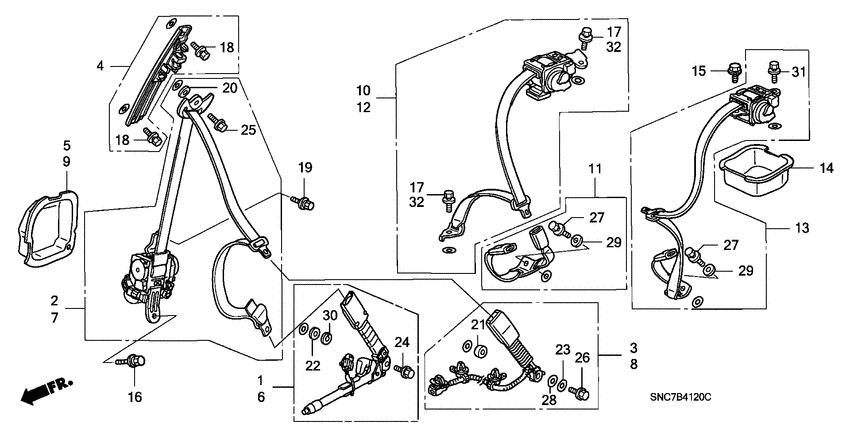

Seatbelts Diagram Honda CIVIC
- Year
- 2011
- Model code
- CIVIC HYBRID
- Sales region
- General
- Engine
- LDA2
- transmission
- CVT
- Number of doors
- 4
- grade
- MX ALCANT
- area code
- KE
- right-hand drive
- +
- navigation
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
81425-SNB-G01ZA
Pretensioner assy.
|
81425-SNB-G01ZA |
— | ||
|
2
|
2
81450-SNB-G03ZG
Tongue
|
81450-SNB-G03ZG |
— | ||
|
3
|
3
81455-SND-E11ZC
Buckle
|
81455-SND-E11ZC |
— | ||
|
4
|
4
81460-SNA-A01 AdjusterSHOULDER SLIDE |
81460-SNA-A01 |
US $34.56 |
||
|
5
|
5
81491-SNA-A00 ProtectorR. FR. SEATBELT |
81491-SNA-A00 |
US $7.56 |
||
|
6
|
6
81825-SNB-G01ZA
Pretensioner assy.
|
81825-SNB-G01ZA |
— | ||
|
7
|
7
81850-SNB-G03ZG
Tongue
|
81850-SNB-G03ZG |
— | ||
|
8
|
8
81855-SND-E01ZC
Buckle
|
81855-SND-E01ZC |
— | ||
|
9
|
9
81891-SNA-A00 ProtectorL. FR. SEATBELT |
81891-SNA-A00 |
US $7.56 |
||
|
10
|
10
82450-SNA-U12ZA
Tongue assy.
|
82450-SNA-U12ZA |
— | ||
|
11
|
11
82455-SNA-A02ZA Buckle assyR. RR. SEATBELT INNER *NH167L* |
82455-SNA-A02ZA |
US $76.16 |
||
|
12
|
12
82850-SNA-U12ZA
Tongue assy.
|
82850-SNA-U12ZA |
— | ||
|
13
|
13
82855-SNA-U12ZA
Tongue & buckle assy.
|
82855-SNA-U12ZA |
— | ||
|
14
|
14
82456-SNA-A00 ProtectorRR. CENTER SEATBELT |
82456-SNA-A00 |
US $5.04 |
||
|
15
|
15
90101-S84-A00 ScrewET, 6X16 |
90101-S84-A00 |
US $1.63 |
||
|
15
|
15
90133-SZ4-003 ScrewET, 7X16 |
90133-SZ4-003 |
US $1.79 |
||
|
16
|
16
90135-S1F-003 BoltFLANGE, 7/16" |
90135-S1F-003 |
US $1.61 |
||
|
17
|
17
90142-SNA-A21 Bolt7/16"X28 |
90142-SNA-A21 |
US $2.45 |
||
|
18
|
18
90142-SNA-A41 Bolt-washer8X25 |
90142-SNA-A41 |
US $2.52 |
||
|
19
|
19
93405-060-160-8 Bolt-washer6X16 |
93405-060-160-8 |
from US $0.59 |
||
|
20
|
20
81441-S2G-N51 Collar5H |
81441-S2G-N51 |
US $2.31 |
||
|
21
|
21
81441-S50-J71 Collar7.5H |
81441-S50-J71 |
US $2.73 |
||
|
22
|
22
81441-S50-N22 Collar2H |
81441-S50-N22 |
US $1.89 |
||
|
23
|
23
90123-S04-J30
Washer
|
90123-S04-J30 |
— | ||
|
24
|
24
90142-SFE-J01 Bolt7/16"X44 |
90142-SFE-J01 |
US $3.43 |
||
|
25
|
25
90142-SNA-004 Bolt7/16"X24 |
90142-SNA-004 |
US $2.31 |
||
|
26
|
26
90142-SND-004 Bolt7/16"X37.6 |
90142-SND-004 |
US $3.01 |
||
|
27
|
27
90142-SNA-A31 Bolt7/16"X28 |
90142-SNA-A31 |
US $2.45 |
||
|
28
|
28
90401-SEY-004
Washer
|
90401-SEY-004 |
— | ||
|
29
|
29
90543-S2G-C21
Washer
|
90543-S2G-C21 |
— | ||
|
30
|
30
90543-S50-004
Washer
|
90543-S50-004 |
— | ||
|
31
|
31
90142-SNA-A21 Bolt7/16"X28 |
90142-SNA-A21 |
US $2.45 |
||
|
32
|
32
90142-SNA-A21 Bolt7/16"X28 |
90142-SNA-A21 |
US $2.45 |
