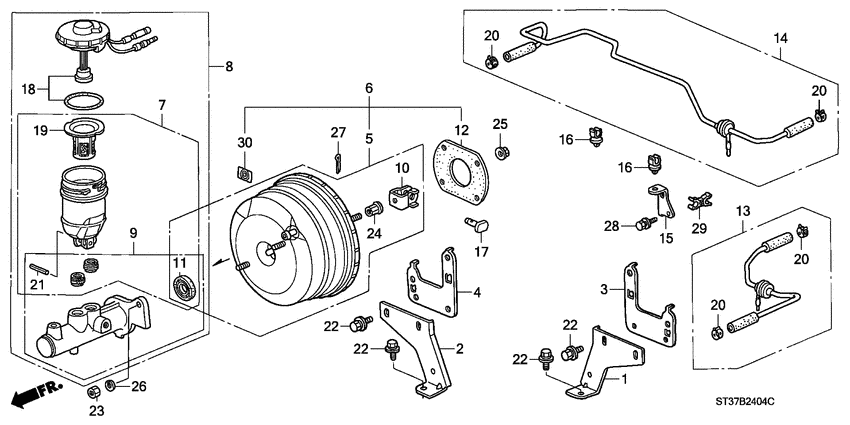

Brake master cylinder (DIESEL) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R12N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
46001-S74-E00
Bracket
|
46001-S74-E00 |
— | ||
|
3
|
3
46005-S74-E00
Stiffener
|
46005-S74-E00 |
— | ||
|
6
|
6
46012-ST3-E02
Power set
|
46012-ST3-E02 |
— | ||
|
7
|
7
46016-ST3-E00
Tank set
|
46016-ST3-E00 |
— | ||
|
8
|
8
46100-ST3-E03
Cylinder assy.
|
46100-ST3-E03 |
— | ||
|
9
|
9
46110-ST3-E01
Cylinder comp
|
46110-ST3-E01 |
— | ||
|
10
|
10
46151-SB2-003 YokePUSH ROD (NISSIN) |
46151-SB2-003 |
US $18.92 |
||
|
11
|
11
46185-ST3-003
Seal
|
46185-ST3-003 |
— | ||
|
12
|
12
46191-SN7-000
Packing
|
46191-SN7-000 |
— | ||
|
13
|
13
46402-S74-E00
Tube assy
|
46402-S74-E00 |
— | ||
|
17
|
17
46512-SB2-000 PinPEDAL |
46512-SB2-000 |
US $4.22 |
||
|
18
|
18
46662-ST3-003
Cap assy.
|
46662-ST3-003 |
— | ||
|
19
|
19
46666-ST3-003
Filter
|
46666-ST3-003 |
— | ||
|
20
|
20
90651-S37-E00
Clip
|
90651-S37-E00 |
— | ||
|
21
|
21
90751-ST3-003
Pin
|
90751-ST3-003 |
— | ||
|
22
|
22
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
23
|
23
94001-080-800-S NutHEX., 8MM |
94001-080-800-S |
from US $0.44 |
||
| replacement | |||||
|
23
|
23
94001-080-000-S NutHEX., 8MM |
94001-080-000-S |
from US $0.40 |
||
|
24
|
24
94050-08080 NUT, FLANGE, 8MM |
94050-08080 |
from US $0.52 |
||
|
25
|
25
94070-08080 Nut-washer8MM |
94070-08080 |
from US $0.52 |
||
|
26
|
26
94111-08800 WasherSPRING, 8MM |
94111-08800 |
from US $0.37 |
||
|
27
|
27
94201-20220 Pin 2.0X22SPLIT, 2.0X22 |
94201-20220 |
US $0.44 |
||
| replacement | |||||
|
27
|
27
9420120350 Pin, cotter (2.0x35) |
9420120350 |
from US $0.44 |
||
|
30
|
30
46070-SL0-G01 PlateSYMBOL MARK |
46070-SL0-G01 |
US $1.61 |
||
