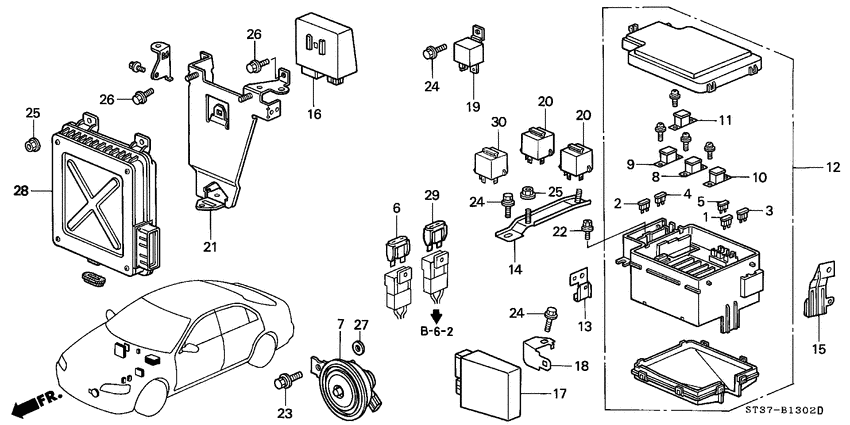

Control unit (ENGINE ROOM; DIESEL) Diagram Honda CIVIC
- Year
- 1997
- Model code
- CIVIC
- Sales region
- General
- Engine
- 20T2R12N
- transmission
- 5MT
- Number of doors
- 5
- grade
- 2.0ITD
- area code
- KE
- right-hand drive
- +
- sunroof
- +
- power window
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
32502-SM4-003 FuseF7.5) (LITTEL |
32502-SM4-003 |
US $1.68 |
||
| replacement | |||||
|
1
|
1
98200-30750 FuseBLADE(7.5A) |
98200-30750 |
from US $0.55 |
||
|
2
|
2
32503-SM4-003 FuseF10) (LITTEL |
32503-SM4-003 |
US $1.16 |
||
| replacement | |||||
|
2
|
2
98200-31000 FuseBLADE (10A) |
98200-31000 |
from US $0.52 |
||
|
3
|
3
32504-SM4-003 FuseF15)(LITTEL |
32504-SM4-003 |
US $1.16 |
||
| replacement | |||||
|
3
|
3
98200-31500 FuseBLADE (15A) |
98200-31500 |
from US $0.52 |
||
|
4
|
4
32505-SM4-003 FuseF20) (LITTEL |
32505-SM4-003 |
US $1.16 |
||
| replacement | |||||
|
4
|
4
98200-32000 FuseBLADE (20A) |
98200-32000 |
from US $0.52 |
||
|
5
|
5
32507-SM4-003 FuseF30) (LITTEL |
32507-SM4-003 |
US $1.16 |
||
| replacement | |||||
|
5
|
5
98200-33000 FuseBLADE(30A) |
98200-33000 |
from US $0.74 |
||
|
6
|
6
32508-S74-D00
Fuse
|
32508-S74-D00 |
— | ||
|
7
|
7
38150-S74-D02
Horn assy
|
38150-S74-D02 |
— | ||
|
8
|
8
38211-SM4-000
Fuse
|
38211-SM4-000 |
— | ||
|
9
|
9
38212-SM4-000
Fuse
|
38212-SM4-000 |
— | ||
|
10
|
10
38213-SM4-000
Fuse
|
38213-SM4-000 |
— | ||
|
11
|
11
38216-SM4-000
Fuse
|
38216-SM4-000 |
— | ||
|
12
|
12
38250-S74-D10
Box assy
|
38250-S74-D10 |
— | ||
|
15
|
15
38255-ST3-E00
Bracket
|
38255-ST3-E00 |
— | ||
|
16
|
16
39400-S74-D00
Relay assy
|
39400-S74-D00 |
— | ||
|
19
|
19
39792-S74-D00
Relay
|
39792-S74-D00 |
— | ||
|
20
|
20
39797-SK4-E00
Relay assy
|
39797-SK4-E00 |
— | ||
|
21
|
21
64133-S74-E00
Bracket comp.
|
64133-S74-E00 |
— | ||
|
22
|
22
90130-SR3-003 Bolt5X13 |
90130-SR3-003 |
US $1.26 |
||
|
23
|
23
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
24
|
24
93404-060-120-4 Bolt-washer6X12 |
93404-060-120-4 |
US $0.52 |
||
|
25
|
25
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
||
|
26
|
26
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
|
27
|
27
94103-08800 WasherPLAIN, 8MM |
94103-08800 |
from US $0.38 |
||
|
28
|
28
37820-P9M-E00
Control module
|
37820-P9M-E00 |
— | ||
|
29
|
29
38214-S37-003
Fuse
|
38214-S37-003 |
— | ||
