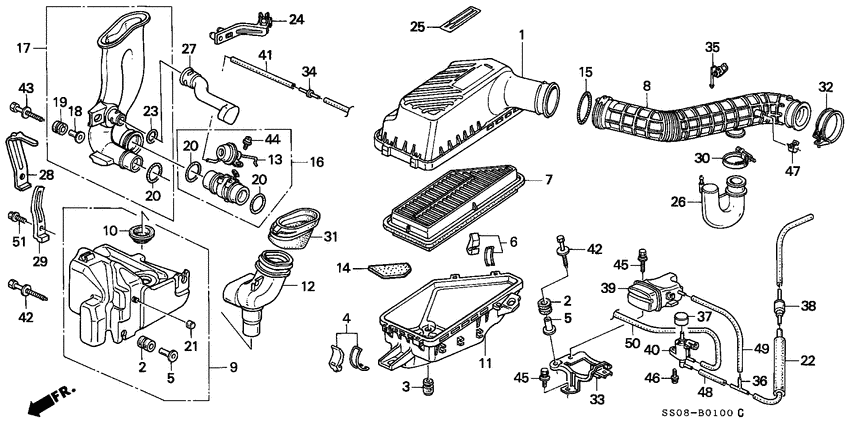

Air cleaner Diagram Honda PRELUDE
- Year
- 1994
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
17211-P13-000
Cover
|
17211-P13-000 |
— | ||
|
2
|
2
17212-PN3-000
Rubber, AIR CLEANER MOUNTING
|
17212-PN3-000 |
— | ||
| replacement | |||||
|
2
|
2
17212-P2J-J00 Rubber, AIR CLEANER MOUNTING |
17212-P2J-J00 |
from US $2.69 |
||
|
3
|
3
17213-P13-000 RubberAIR CLEANER CASE MOUNTING |
17213-P13-000 |
US $2.38 |
||
|
4
|
4
17215-PR3-000
Clip set A, Wire
|
17215-PR3-000 |
— | ||
|
5
|
5
17216-PN3-000 CollarAIR CLEANER MOUNTING |
17216-PN3-000 |
from US $2.29 |
||
|
6
|
6
17216-PR3-000
Clip set B, Wire
|
17216-PR3-000 |
— | ||
|
7
|
7
17220-P12-T00 Element assy.AIR CLEANER |
17220-P12-T00 |
US $40.96 |
||
|
8
|
8
17228-P12-A00
Tube
|
17228-P12-A00 |
— | ||
|
9
|
9
17230-P13-000
Chamber assy
|
17230-P13-000 |
— | ||
|
10
|
10
17233-P13-000
Rubber
|
17233-P13-000 |
— | ||
|
11
|
11
17241-P13-000
Case comp.
|
17241-P13-000 |
— | ||
|
12
|
12
17242-P13-000
Tube comp
|
17242-P13-000 |
— | ||
|
13
|
13
17245-P13-003 Diaphragm compVALVE CONTROL |
17245-P13-003 |
US $28.93 |
||
|
15
|
15
17249-PY3-000 SpringAIR FLOW TUBE |
17249-PY3-000 |
from US $3.40 |
||
|
16
|
16
17250-P13-000
Valve assy.
|
17250-P13-000 |
— | ||
|
17
|
17
17252-P13-000
Tube assy. b
|
17252-P13-000 |
— | ||
|
18
|
18
17255-PD6-000 CollarRESONATOR |
17255-PD6-000 |
US $2.10 |
||
|
19
|
19
17256-PD6-000 RubberRESONATOR MOUNTING |
17256-PD6-000 |
US $2.59 |
||
|
20
|
20
17256-P13-000
Ring
|
17256-P13-000 |
— | ||
|
21
|
21
17257-PT0-000 GrommetINTAKE |
17257-PT0-000 |
US $1.47 |
||
|
22
|
22
17257-P13-000
Tube comp
|
17257-P13-000 |
— | ||
|
24
|
24
17259-P13-003
Clamp
|
17259-P13-003 |
— | ||
|
25
|
25
17273-P12-T00
Plate
|
17273-P12-T00 |
— | ||
|
26
|
26
17281-P13-000
Tube
|
17281-P13-000 |
— | ||
|
29
|
29
17283-P13-000
Stay b
|
17283-P13-000 |
— | ||
|
30
|
30
17284-PP8-003 BandHOSE (D52) |
17284-PP8-003 |
US $8.26 |
||
|
31
|
31
17307-P13-000
Rubber
|
17307-P13-000 |
— | ||
|
32
|
32
17315-PH3-003 ClampAIR FLOW TUBE (74) |
17315-PH3-003 |
US $4.34 |
||
|
33
|
33
17358-P13-000
Stay comp
|
17358-P13-000 |
— | ||
|
34
|
34
17414-PC6-660 JointTWO WAY (3.5) |
17414-PC6-660 |
from US $2.45 |
||
|
35
|
35
24367-PX4-003
Clamp
|
24367-PX4-003 |
— | ||
|
36
|
36
36010-PA6-004 JointTHREE WAY |
36010-PA6-004 |
from US $6.51 |
||
|
37
|
37
36138-PM1-G01
Filter assy
|
36138-PM1-G01 |
— | ||
|
38
|
38
36145-PM4-004 ValveCHECK |
36145-PM4-004 |
from US $18.50 |
||
|
39
|
39
36351-P13-003
Tank comp.
|
36351-P13-003 |
— | ||
|
40
|
40
36352-PT2-003
Valve assy.
|
36352-PT2-003 |
— | ||
|
41
|
41
36355-P13-000
Tube
|
36355-P13-000 |
— | ||
|
42
|
42
90001-P0A-000 Bolt-washerSPECIAL, 6X35 |
90001-P0A-000 |
from US $2.52 |
||
|
43
|
43
90006-PN4-000 Bolt-washerSPECIAL, 6X25 |
90006-PN4-000 |
US $2.10 |
||
|
44
|
44
90011-PL2-000 Screw-washer5X8 |
90011-PL2-000 |
US $1.96 |
||
|
45
|
45
93403-060-200-8 Bolt-washer6X20 |
93403-060-200-8 |
from US $0.62 |
||
|
46
|
46
93892-050-140-8 Screw-washer5X14 |
93892-050-140-8 |
from US $0.47 |
||
|
47
|
47
95002-413-000-4 ClampTUBE(D13) |
95002-413-000-4 |
from US $1.04 |
||
|
48
|
48
95005-350-451-8 Tube3.5X45 (95005-35001-10M) |
95005-350-451-8 |
US $0.89 |
||
|
49
|
49
95005-350-601-8 Tube3.5X60 (95005-35001-10M) |
95005-350-601-8 |
US $1.18 |
||
|
50
|
50
95005-353-751-8 Tube3.5X375 (95005-35001-10M) |
95005-353-751-8 |
US $4.14 |
||
|
51
|
51
95701-060-120-8 BoltFLANGE, 6X12 |
95701-060-120-8 |
from US $0.52 |
||
