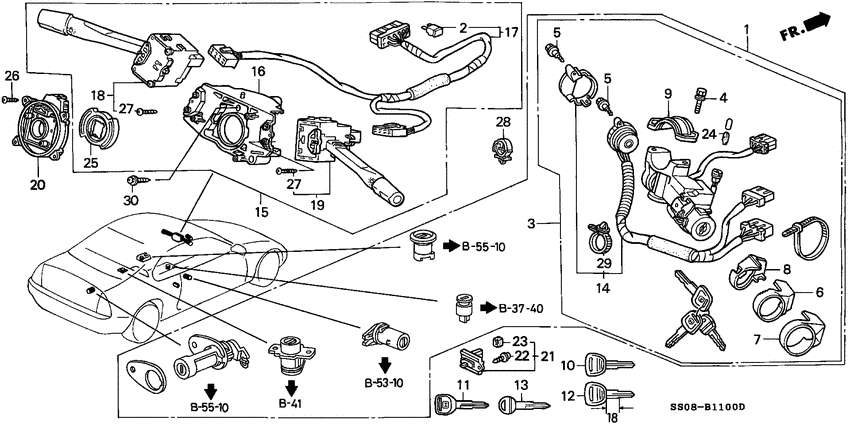

Combination switch (LH) Diagram Honda PRELUDE
- Year
- 1994
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
06350-SS0-G01 Cylinder setKEY (SERVICE) |
06350-SS0-G01 |
US $385.28 |
||
|
2
|
2
32146-SH3-003 ConnectorDIODE(2P) |
32146-SH3-003 |
from US $7.70 |
||
|
3
|
3
35100-SS0-G01
Lock assy
|
35100-SS0-G01 |
— | ||
|
4
|
4
35102-SV4-003 BoltBREAK HEAD |
35102-SV4-003 |
from US $2 |
||
|
5
|
5
35103-SE3-003 ScrewRECESSED, 3X8 |
35103-SE3-003 |
US $2.10 |
||
|
6
|
6
35105-SM5-A01
Ring
|
35105-SM5-A01 |
— | ||
|
7
|
7
35106-SM5-A01
Cover
|
35106-SM5-A01 |
— | ||
|
8
|
8
35107-SM5-A01
Cap
|
35107-SM5-A01 |
— | ||
|
9
|
9
35108-SV4-A01
Holder
|
35108-SV4-A01 |
— | ||
|
10
|
10
35113-SH3-G02
Key
|
35113-SH3-G02 |
— | ||
|
12
|
12
35114-SH4-K01
Key
|
35114-SH4-K01 |
— | ||
|
14
|
14
35130-SS0-A01
Switch comp
|
35130-SS0-A01 |
— | ||
|
15
|
15
35250-SS0-C01ZA
Switch assy
|
35250-SS0-C01ZA |
— | ||
|
16
|
16
35251-SS0-003
Body
|
35251-SS0-003 |
— | ||
|
17
|
17
35254-SS0-C01
Cord assy
|
35254-SS0-C01 |
— | ||
|
18
|
18
35255-SM5-A01
Switch assy
|
35255-SM5-A01 |
— | ||
|
19
|
19
35256-SS0-A01ZA
Switch assy
|
35256-SS0-A01ZA |
— | ||
|
20
|
20
35257-SS0-003
Ring assy
|
35257-SS0-003 |
— | ||
|
21
|
21
35400-SG0-023
Switch assy
|
35400-SG0-023 |
— | ||
|
22
|
22
35409-SG0-901
Screw
|
35409-SG0-901 |
— | ||
|
23
|
23
35417-SE3-003
Cover
|
35417-SE3-003 |
— | ||
| replacement | |||||
|
23
|
23
35410-692-003 CoverDOOR SWITCH |
35410-692-003 |
US $5.77 |
||
|
24
|
24
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
25
|
25
53271-SS0-003
Cam
|
53271-SS0-003 |
— | ||
|
26
|
26
90101-SA4-000 ScrewTAPPING, 4X12 |
90101-SA4-000 |
US $0.80 |
||
| replacement | |||||
|
26
|
26
93913-14280 ScrewTAPPING, 4X12 (PO) |
93913-14280 |
from US $0.37 |
||
|
27
|
27
90109-SS0-901 ScrewTAPPING, 3X16 |
90109-SS0-901 |
US $1.54 |
||
|
28
|
28
90690-SA0-003 StrapWIRE HARNESS, 25MM (BLACK) |
90690-SA0-003 |
from US $9.60 |
||
|
29
|
29
91547-SF4-003 BandWIRE HARNESS (BLUE) (123.5MM) |
91547-SF4-003 |
from US $5.03 |
||
|
30
|
30
93891-050-120-8 Screw-washer5X12 |
93891-050-120-8 |
from US $0.44 |
||
