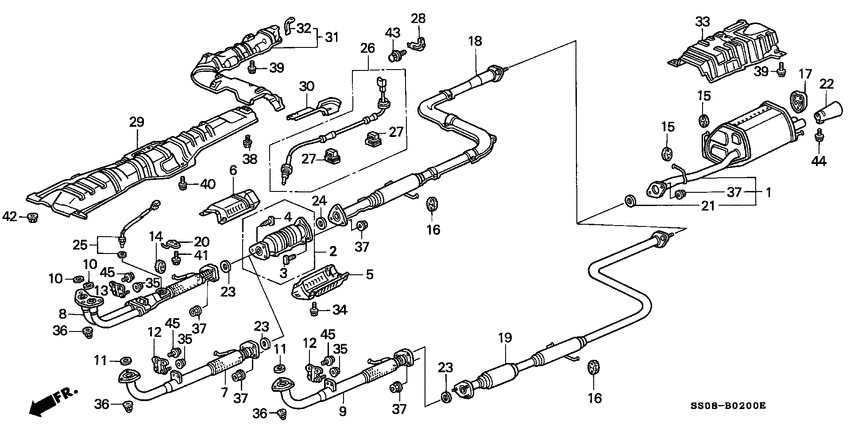

Exhaust pipe Diagram Honda PRELUDE
- Year
- 1994
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
18030-SS0-010
Silencer set
|
18030-SS0-010 |
— | ||
|
9
|
9
18210-SS0-T20 Pipe aEX. |
18210-SS0-T20 |
US $390.40 |
||
|
11
|
11
18212-SM4-003 GasketEX. PIPE (ISHINO) |
18212-SM4-003 |
from US $6.02 |
||
|
12
|
12
18213-SM4-A34
Stay
|
18213-SM4-A34 |
— | ||
|
14
|
14
18215-SA7-000 RubberSILENCER MOUNTING (70X45X25) |
18215-SA7-000 |
US $9.95 |
||
|
15
|
15
18215-SB6-960
Rubber
|
18215-SB6-960 |
— | ||
|
16
|
16
18215-SE0-000 Rubber dEX. PIPE MOUNTING |
18215-SE0-000 |
US $6.44 |
||
|
17
|
17
18215-SS0-J31
Rubber
|
18215-SS0-J31 |
— | ||
|
19
|
19
18220-SS0-T20
Pipe b
|
18220-SS0-T20 |
— | ||
|
20
|
20
18282-SS0-000
Bracket b
|
18282-SS0-000 |
— | ||
|
21
|
21
18303-SM4-020 GasketSILENCER |
18303-SM4-020 |
from US $5.32 |
||
|
22
|
22
18310-SB0-023
Finisher
|
18310-SB0-023 |
— | ||
|
23
|
23
18393-SH3-S00 GasketPRE-CHAMBER (52.5MM-53.5MM) |
18393-SH3-S00 |
from US $7.33 |
||
|
29
|
29
74601-SS0-A00
Plate
|
74601-SS0-A00 |
— | ||
|
31
|
31
74651-SS0-000 PlateTANK BAFFLE |
74651-SS0-000 |
US $42.37 |
||
|
32
|
32
74653-SS0-300
Protector
|
74653-SS0-300 |
— | ||
|
33
|
33
74655-SS0-000
Plate
|
74655-SS0-000 |
— | ||
|
35
|
35
90115-659-003 NutSELF-LOCK, 8MM (CLINCH) |
90115-659-003 |
from US $1.05 |
||
|
36
|
36
90212-SA5-003 NutSELF-LOCK, 10MM |
90212-SA5-003 |
from US $2.74 |
||
|
37
|
37
90212-671-005 NutSELF-LOCK, 10MM |
90212-671-005 |
US $1.22 |
||
|
38
|
38
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
39
|
39
93405-060-120-8 Bolt-washer6X12 |
93405-060-120-8 |
from US $0.59 |
||
|
40
|
40
93405-060-200-8 Bolt-washer6X20 |
93405-060-200-8 |
from US $0.59 |
||
|
41
|
41
93407-080-160-8 Bolt-washer8X16 |
93407-080-160-8 |
US $0.74 |
||
|
42
|
42
90301-SP0-003 NutPAINT CUTTING, 6MM |
90301-SP0-003 |
US $2.59 |
||
|
44
|
44
95801-060-140-0 BoltFLANGE, 6X14 |
95801-060-140-0 |
from US $0.52 |
||
| replacement | |||||
|
44
|
44
95701-060-140-0 BoltFLANGE, 6X14 |
95701-060-140-0 |
from US $0.20 |
||
|
45
|
45
95801-100-200-8 BoltFLANGE, 10X20 |
95801-100-200-8 |
US $0.74 |
||
