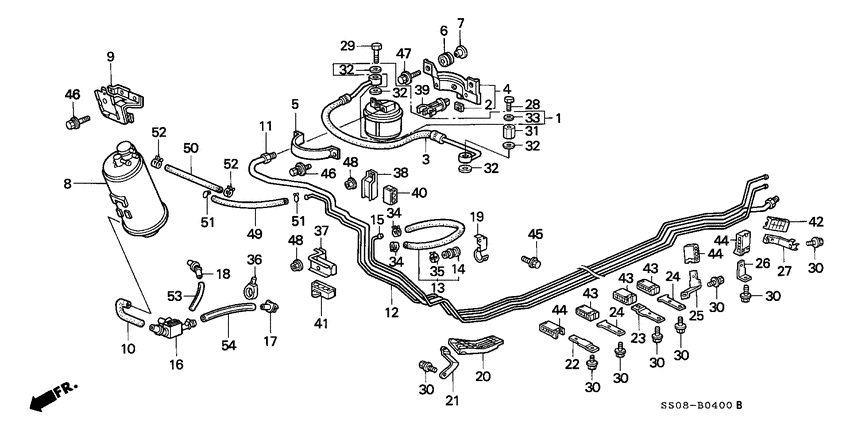

Fuel pipe (LH) Diagram Honda PRELUDE
- Year
- 1994
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
1
|
1
16010-SS0-931
Strainer set
00000000 - 0C200200 |
16010-SS0-931 |
— | ||
|
1
|
1
16010-SS0-932
Strainer set
0C200201 - |
16010-SS0-932 |
— | ||
|
2
|
2
16712-SF4-J30 CushionFUEL STRAINER |
16712-SF4-J30 |
US $1.96 |
||
|
3
|
3
16720-P12-A01
Hose comp.
|
16720-P12-A01 |
— | ||
|
4
|
4
16918-SS0-A30
Stay
|
16918-SS0-A30 |
— | ||
|
5
|
5
16919-SL4-930
Band
|
16919-SL4-930 |
— | ||
|
6
|
6
16922-SH3-930 RubberMOUNTING |
16922-SH3-930 |
US $1.95 |
||
|
7
|
7
16923-SP0-930 CollarDISTANCE |
16923-SP0-930 |
US $4.47 |
||
|
8
|
8
17300-SS0-A31
Canister assy
|
17300-SS0-A31 |
— | ||
|
9
|
9
17358-SS0-A30
Bracket
|
17358-SS0-A30 |
— | ||
|
10
|
10
17372-SS0-A00
Tube
|
17372-SS0-A00 |
— | ||
|
11
|
11
17700-SS0-A30
Pipe comp
|
17700-SS0-A30 |
— | ||
|
12
|
12
17720-SS0-000
Pipe comp
|
17720-SS0-000 |
— | ||
|
13
|
13
17723-SS0-931
Hose
|
17723-SS0-931 |
— | ||
|
14
|
14
17727-SS0-930
Insulator rubber
|
17727-SS0-930 |
— | ||
|
15
|
15
17740-SS0-930
Pipe comp
|
17740-SS0-930 |
— | ||
|
16
|
16
17742-SS0-A02
Joint
|
17742-SS0-A02 |
— | ||
|
17
|
17
17743-SM4-003 CapDRAIN TUBE |
17743-SM4-003 |
US $1.82 |
||
|
18
|
18
17743-SS0-A01
Joint
|
17743-SS0-A01 |
— | ||
|
19
|
19
17749-SS0-J31
Clamp
|
17749-SS0-J31 |
— | ||
|
20
|
20
17752-SS0-003
Protector
|
17752-SS0-003 |
— | ||
|
21
|
21
17762-SS0-000
Stay b
|
17762-SS0-000 |
— | ||
|
22
|
22
17763-SM4-000
Stay c
|
17763-SM4-000 |
— | ||
|
23
|
23
17764-SM4-000
Stay d
|
17764-SM4-000 |
— | ||
|
24
|
24
17765-SM4-000
Stay e
|
17765-SM4-000 |
— | ||
|
25
|
25
17766-SS0-000
Stay f
|
17766-SS0-000 |
— | ||
|
26
|
26
17767-SS0-000
Stay g
|
17767-SS0-000 |
— | ||
|
27
|
27
17768-SS0-000
Stay h
|
17768-SS0-000 |
— | ||
|
28
|
28
90009-PE2-010 BoltSEALING, 6MM |
90009-PE2-010 |
US $4.03 |
||
| replacement | |||||
|
28
|
28
90009-RMX-010 Bolt,sealing 6mm |
90009-RMX-010 |
from US $2.73 |
||
|
29
|
29
90020-PD6-000 BoltSEALING, 12MM |
90020-PD6-000 |
from US $7.99 |
||
|
30
|
30
93405-060-160-4 Bolt-washer6X16 |
93405-060-160-4 |
from US $0.59 |
||
|
31
|
31
90201-PD1-000 Nut aSEALING, 12MM |
90201-PD1-000 |
from US $2.15 |
||
|
32
|
32
90428-PD6-003 WasherSEALING, 12MM |
90428-PD6-003 |
from US $2.38 |
||
|
33
|
33
90430-PD6-003 WasherSEALING, 6MM |
90430-PD6-003 |
from US $1.48 |
||
|
34
|
34
91406-SA7-931 ClampFUEL HOSE, 15.5MM |
91406-SA7-931 |
US $10.18 |
||
| replacement | |||||
|
34
|
34
91406-SL0-931 ClampFUEL HOSE, 15.5MM |
91406-SL0-931 |
from US $4 |
||
|
35
|
35
91462-SA5-950 Clamp d19MM |
91462-SA5-950 |
from US $2.17 |
||
|
36
|
36
91549-SE0-003 HolderDRAIN HOSE |
91549-SE0-003 |
US $1.89 |
||
|
37
|
37
91591-SS0-000
Clip b
|
91591-SS0-000 |
— | ||
|
38
|
38
91592-SS0-000
Clip c
|
91592-SS0-000 |
— | ||
|
39
|
39
91593-SS0-A01
Clamp
|
91593-SS0-A01 |
— | ||
|
40
|
40
91595-SM4-003
Clip b
|
91595-SM4-003 |
— | ||
|
41
|
41
91595-SS0-003
Clip b
|
91595-SS0-003 |
— | ||
|
42
|
42
91596-SM4-931
Clamp c
|
91596-SM4-931 |
— | ||
|
43
|
43
91598-SM4-931
Clamp b
|
91598-SM4-931 |
— | ||
|
44
|
44
91599-SM4-931
Clamp a
|
91599-SM4-931 |
— | ||
|
45
|
45
93402-060-120-8 Bolt-washer6X12 |
93402-060-120-8 |
from US $0.52 |
||
|
46
|
46
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
47
|
47
93405-060-250-8 Bolt-washer6X25 |
93405-060-250-8 |
US $0.74 |
||
|
48
|
48
90361-SV4-003 NutPAINT CUTTING, 6MM |
90361-SV4-003 |
US $1.47 |
||
|
49
|
49
95001-551-906-0
Tube
|
95001-551-906-0 |
— | ||
|
50
|
50
95001-553-805-0
Hose
|
95001-553-805-0 |
— | ||
|
51
|
51
95002-02104 ClipTUBE (B10) |
95002-02104 |
US $0.52 |
||
|
52
|
52
95002-410-500-4 ClampTUBE (D10.5) |
95002-410-500-4 |
from US $0.74 |
||
|
53
|
53
95003-190-226-0 TubeVINYL, 7X11X220 (95003-19001-60M) |
95003-190-226-0 |
US $1.33 |
||
|
54
|
54
95003-400-226-0 TubeVINYL, 12X16X220 (95003-40001-60M) |
95003-400-226-0 |
US $2.66 |
||
