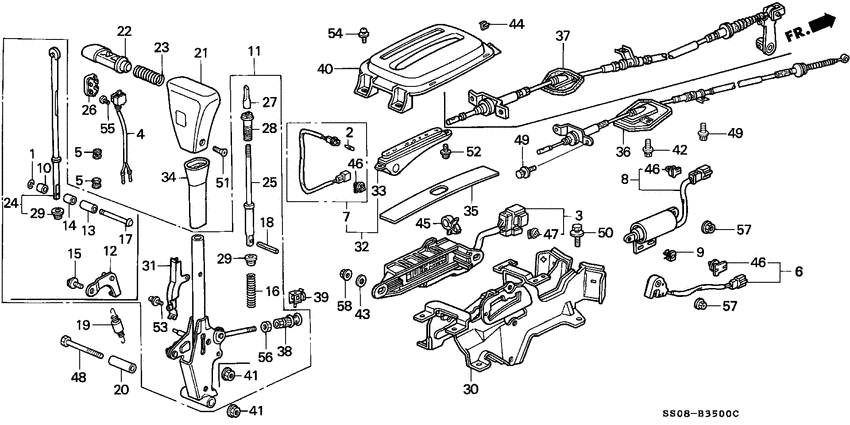

Select lever (LH) Diagram Honda PRELUDE
- Year
- 1994
- Model code
- PRELUDE
- Sales region
- General
- Engine
- F22A
- transmission
- 4AT
- Number of doors
- 2
- grade
- SI
- area code
- KY
- left-hand drive
- +
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
2
|
2
35505-692-003 Bulb14V 1.4W |
35505-692-003 |
from US $2.07 |
||
|
3
|
3
35700-SS0-A01
Switch assy
|
35700-SS0-A01 |
— | ||
|
4
|
4
35720-SM4-013ZA
Switch assy
|
35720-SM4-013ZA |
— | ||
|
5
|
5
35722-SM4-900
Grommet
|
35722-SM4-900 |
— | ||
|
7
|
7
37700-SM4-013
Lamp assy.
|
37700-SM4-013 |
— | ||
|
11
|
11
54100-SS0-G81
Lever comp
|
54100-SS0-G81 |
— | ||
|
16
|
16
54117-692-980
Spring
|
54117-692-980 |
— | ||
|
18
|
18
54119-SV4-980
Pin
|
54119-SV4-980 |
— | ||
|
19
|
19
54120-SV4-980
Spring assy
|
54120-SV4-980 |
— | ||
|
20
|
20
54123-SM4-980 CollarSELECT LEVER |
54123-SM4-980 |
US $6.30 |
||
|
21
|
21
54131-SM4-A81ZA
Knob
|
54131-SM4-A81ZA |
— | ||
|
22
|
22
54132-SS0-A80
Knob
|
54132-SS0-A80 |
— | ||
|
23
|
23
54133-SA5-981
Spring
|
54133-SA5-981 |
— | ||
|
25
|
25
54137-SV4-980
Rod
|
54137-SV4-980 |
— | ||
|
26
|
26
54139-SM4-931ZA
Plate
|
54139-SM4-931ZA |
— | ||
|
27
|
27
54140-SV4-980 CapLOCK PIN |
54140-SV4-980 |
US $10.92 |
||
|
28
|
28
54141-SV4-980 BushKNOB SETTING |
54141-SV4-980 |
from US $2.44 |
||
|
29
|
29
54142-SA5-980 BushGUIDE |
54142-SA5-980 |
from US $3.57 |
||
|
30
|
30
54202-SS0-G82 BracketCONTROL |
54202-SS0-G82 |
US $67.84 |
||
|
31
|
31
54205-SM4-A81
Guide
|
54205-SM4-A81 |
— | ||
|
32
|
32
54210-SS0-A81
Lamp assy.
|
54210-SS0-A81 |
— | ||
|
33
|
33
54211-SS0-A81
Lamp
|
54211-SS0-A81 |
— | ||
|
34
|
34
54217-SS0-980
Outer
|
54217-SS0-980 |
— | ||
|
35
|
35
54222-SS0-981
Cover
|
54222-SS0-981 |
— | ||
|
36
|
36
54315-SS0-982
Wire
|
54315-SS0-982 |
— | ||
|
38
|
38
54361-SV4-980 PipeCONTROL WIRE ADJUSTING |
54361-SV4-980 |
US $8.82 |
||
|
39
|
39
54363-689-981 PinCONTROL WIRE ADJUSTER |
54363-689-981 |
US $3.57 |
||
|
40
|
40
54711-SS0-G82
Escutcheon
|
54711-SS0-G82 |
— | ||
|
41
|
41
90114-SA0-000 NutSELF-LOCK, 6MM |
90114-SA0-000 |
from US $1.70 |
||
|
42
|
42
90156-SM4-000 Bolt-washer6X20 |
90156-SM4-000 |
US $1.40 |
||
|
43
|
43
90438-671-000 WasherSPECIAL, 6MM |
90438-671-000 |
US $7.38 |
||
|
44
|
44
90665-SP0-000 ClipSNAP FITTING |
90665-SP0-000 |
US $1.54 |
||
|
45
|
45
91504-SL0-003 ClipHOOD OPEN WIRE |
91504-SL0-003 |
from US $1.26 |
||
|
46
|
46
91556-SP0-003 ClipCOUPLER(BROWN) |
91556-SP0-003 |
from US $1.26 |
||
|
47
|
47
91558-SS0-003
Clip
|
91558-SS0-003 |
— | ||
|
48
|
48
92201-06065-0H BoltHEX., 6X55 |
92201-06065-0H |
US $0.74 |
||
|
49
|
49
93403-060-160-8 Bolt-washer6X16 |
93403-060-160-8 |
from US $0.59 |
||
|
50
|
50
93403-080-160-8 Bolt-washer8X16 |
93403-080-160-8 |
from US $0.74 |
||
|
51
|
51
93700-050-080-G ScrewOVAL, 5X8 |
93700-050-080-G |
from US $0.37 |
||
|
52
|
52
93891-050-080-8 Screw-washer5X8 |
93891-050-080-8 |
from US $0.44 |
||
|
53
|
53
93892-040-060-G Screw-washer4X6 |
93892-040-060-G |
US $0.44 |
||
|
54
|
54
90130-SV4-980 ScrewTAPPING, 5X11 |
90130-SV4-980 |
US $2.24 |
||
|
55
|
55
93901-22220 ScrewTAPPING, 3X10 |
93901-22220 |
from US $0.37 |
||
|
56
|
56
94001-060-800-S NutHEX., 6MM |
94001-060-800-S |
from US $0.44 |
||
|
58
|
58
94050-06080 NutFLANGE, 6MM |
94050-06080 |
from US $0.52 |
