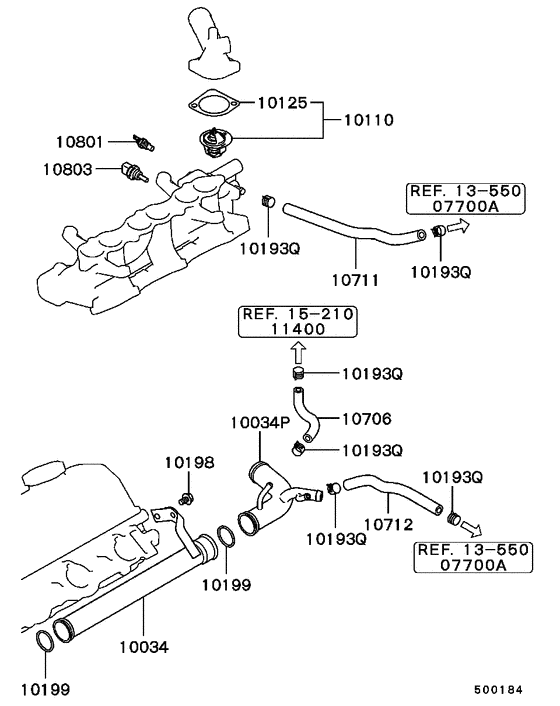

Water pipe & thermostat (SOHC..M/T) Diagram Mitsubishi 3000GT
- Year
- 1996 - 1999
- Sales region
- MMNA
- Note
- HIGH LINE(SOHC),5FM/T FED
- drive
- 2WD
- transmission
- 5FM/T
- grade
- HIGH LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD103968
PIPE, WATER PUMP INLET
|
MD103968 |
— | ||
|
10034
|
10034
MD146833 PIPE, WATER PUMP INLET |
MD146833 |
US $109.44 |
||
|
10034P
|
10034P
MD145969
PIPE,WATER PUMP INLET
|
MD145969 |
— | ||
|
10110
|
10110
MD174234
THERMOSTAT KIT
|
MD174234 |
— | ||
| replacement | |||||
|
10110
|
10110
1305A603 THERMOSTAT KIT |
1305A603 |
from US $17.57 |
||
|
10110
|
10110
MD974046 THERMOSTAT KIT82 |
MD974046 |
US $26.64 |
||
|
10110
|
10110
MD997679 THERMOSTAT KIT76.5 |
MD997679 |
US $68.08 |
||
|
10125
|
10125
MD146834 GASKET, THERMOSTAT COVER |
MD146834 |
US $9.77 |
||
|
10125
|
10125
MD184011 GASKET, THERMOSTAT WATER HOSE FITTING |
MD184011 |
from US $6.44 |
||
|
10193Q
|
10193Q
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10199
|
10199
MD147332 O-RING, COOLING WATER LINE35.1 |
MD147332 |
from US $3.18 |
||
|
10706
|
10706
MD103788 HOSE, THERMOSTAT WATER BY-PASS |
MD103788 |
US $7.52 |
||
|
10711
|
10711
MD160377 HOSE, INJECTION PUMP WATER RETURN |
MD160377 |
US $6.36 |
||
|
10711
|
10711
MD168561 HOSE, THROTTLE BODY WATER FEED8x140 |
MD168561 |
US $8.62 |
||
|
10712
|
10712
MD068186 HOSE, THROTTLE BODY WATER RETURN8x180 |
MD068186 |
US $9.17 |
||
|
10712
|
10712
MD160376 HOSE, THROTTLE BODY WATER RETURN8x185 |
MD160376 |
US $9.17 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD149338 SENSOR UNIT, WATER TEMPERATURE |
MD149338 |
from US $82.08 |
||
|
10803
|
10803
MD182467
SENSOR UNIT, WATER TEMPERATURE
|
MD182467 |
— | ||
| replacement | |||||
|
10803
|
10803
1308A012 SENSOR UNIT, WATER TEMPERATURE |
1308A012 |
from US $28.61 |
||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
15 210
|
Inlet manifold
15 210
|
||||
