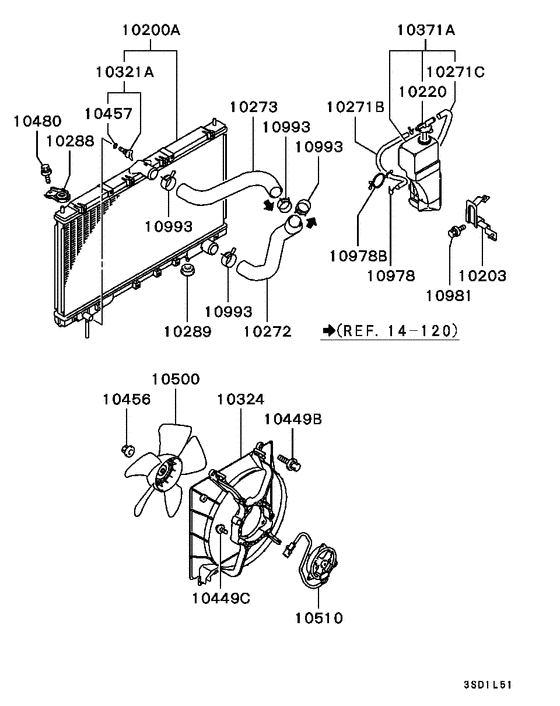

Radiator,hose & condenser tank Diagram Mitsubishi ECLIPSE
- Year
- 1995 - 1999
- Sales region
- EUR/MMNA
- Note
- GS(DOHC/2WD),5FM/T LHD
- drive
- 2WD/2WD
- transmission
- 5FM/T
- grade
- GS
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10200A
|
10200A
MR266143
RADIATOR ASSY
|
MR266143 |
— | ||
|
10203
|
10203
MR239220
BRACKET,RADIATOR CONDENSER TANK
|
MR239220 |
— | ||
|
10220
|
10220
MR241442
CAP,RADIATOR CONDENSER TANK
|
MR241442 |
— | ||
|
10271B
|
10271B
MS600623 HOSE, RADIATOR CONDENSER TANK7x2000 |
MS600623 |
from US $12.03 |
||
|
10271C
|
10271C
MB356790 HOSE, RADIATOR CONDENSER TANK12x45-190 |
MB356790 |
US $6.22 |
||
|
10272
|
10272
MR239218
HOSE,RADIATOR,LWR
|
MR239218 |
— | ||
|
10273
|
10273
MB906428 HOSE, RADIATOR, UPR |
MB906428 |
US $15.05 |
||
|
10288
|
10288
MR224262
INSULATOR, RADIATOR SUPPORT, UPR
|
MR224262 |
— | ||
|
10289
|
10289
MB906100 INSULATOR, RADIATOR SUPPORT, LWR |
MB906100 |
US $4.38 |
||
|
10321A
|
10321A
MB597892 PLUG ASSY, RADIATOR |
MB597892 |
from US $3.61 |
||
|
10324
|
10324
MR127353
SHROUD,COOLING FAN
|
MR127353 |
— | ||
|
10371A
|
10371A
MR239219
TANK ASSY,RADIATOR CONDENSER
|
MR239219 |
— | ||
|
10449B
|
10449B
MB605073 BOLT, RADIATORWasher assembled |
MB605073 |
US $1.37 |
||
|
10449C
|
10449C
MB890292 BOLT, RADIATOR4x11 |
MB890292 |
US $2.52 |
||
|
10456
|
10456
MB356066
NUT, RADIATOR
|
MB356066 |
— | ||
| replacement | |||||
|
10456
|
10456
MB906064 NUT, RADIATOR |
MB906064 |
from US $1.74 |
||
|
10457
|
10457
MB007701 O-RING, RADIATORD=5 |
MB007701 |
from US $3.32 |
||
|
10480
|
10480
MU241006 BOLT, RADIATOR SUPPORTGimlet,8x20 |
MU241006 |
US $3.01 |
||
|
10500
|
10500
MB906062 FAN, COOLING |
MB906062 |
US $71.78 |
||
|
10510
|
10510
MB924138
MOTOR,COOLING FAN
|
MB924138 |
— | ||
|
10978
|
10978
MS660205 CLIP, RADIATOR PIPINGD=11.5 |
MS660205 |
from US $1.33 |
||
|
10978B
|
10978B
MS470368 CLIP, RADIATOR CONDENSER TANKD=12-44 |
MS470368 |
US $3.01 |
||
|
10981
|
10981
MF243624 BOLTWasher assembled,6x16 |
MF243624 |
from US $0.96 |
||
|
10993
|
10993
MB356968
CLIP, RADIATOR PIPING
|
MB356968 |
— | ||
| replacement | |||||
|
10993
|
10993
MR404538 CLIP, RADIATOR PIPINGD=37 |
MR404538 |
from US $2.83 |
||
|
10993
|
10993
MR404538 CLIP, RADIATOR PIPINGD=37 |
MR404538 |
from US $2.83 |
||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
