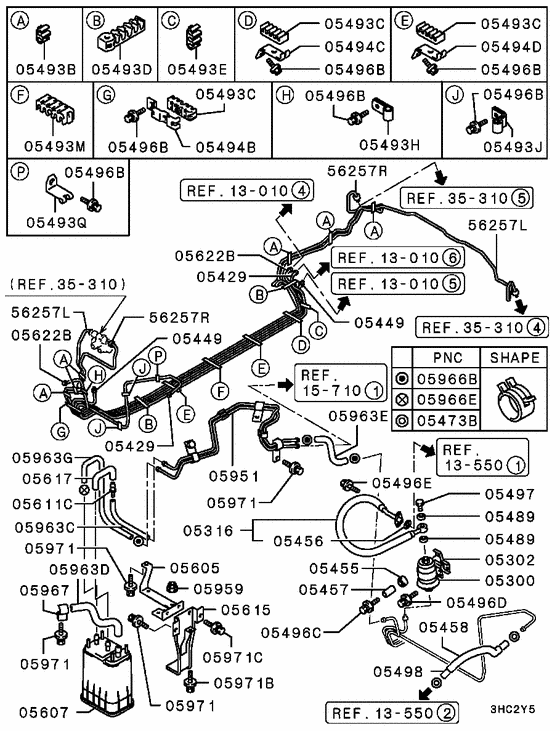

Fuel line & vapor gas control (CALIFORNIA -'95MODEL) Diagram Mitsubishi GALANT
- Year
- 1995 - 1996
- Sales region
- MMNA/MMNA
- Note
- S(SOHC),4FA/T OKAZAKI-CAL
- drive
- 2WD
- transmission
- 4FA/T
- grade
- S
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05300
|
05300
MB868451 FUEL FILTER |
MB868451 |
US $77.70 |
||
|
05302
|
05302
MB868433 BRACKET, FUEL FILTER |
MB868433 |
US $10.06 |
||
|
05316
|
05316
MB890709
HOSE,FUEL FILTER HIGH PRESSURE
|
MB890709 |
— | ||
|
05316
|
05316
MR161796
HOSE,FUEL FILTER HIGH PRESSURE
|
MR161796 |
— | ||
|
05316
|
05316
MR266832
HOSE,FUEL FILTER HIGH PRESSURE
|
MR266832 |
— | ||
|
05429
|
05429
MB906388
PIPE,FUEL RETURN
|
MB906388 |
— | ||
|
05449
|
05449
MB906380 PIPE, FUEL LINE |
MB906380 |
US $37.74 |
||
|
05455
|
05455
MB221305 CUSHION, FUEL LINE |
MB221305 |
US $4.51 |
||
|
05456
|
05456
MB554317 O-RING, FUEL LINE11.8 |
MB554317 |
from US $2.07 |
||
|
05457
|
05457
MB845609 COLLAR, FUEL LINE |
MB845609 |
US $3.15 |
||
|
05458
|
05458
MB044006
TUBE, FUEL RETURN LINE
|
MB044006 |
— | ||
| replacement | |||||
|
05458
|
05458
MB133481 TUBE, FUEL RETURN LINE |
MB133481 |
US $6.84 |
||
|
05473B
|
05473B
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $4.51 |
||
|
05489
|
05489
MB906711 GASKET, FUEL LINE |
MB906711 |
US $3.69 |
||
|
05489
|
05489
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
05493B
|
05493B
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
05493C
|
05493C
MB329980 CLIP, FUEL LINE |
MB329980 |
US $7.52 |
||
|
05493D
|
05493D
MB890080
CLIP, FUEL LINE
|
MB890080 |
— | ||
|
05493E
|
05493E
MB890072 CLIP, FUEL LINE |
MB890072 |
US $4.38 |
||
|
05493H
|
05493H
MB165037 CLIP, FUEL RETURN LINE |
MB165037 |
US $2.74 |
||
|
05493J
|
05493J
MB868768 CLIP, FUEL LINE |
MB868768 |
US $4.44 |
||
|
05493M
|
05493M
MB329982 CLIP, FUEL LINE |
MB329982 |
US $8.21 |
||
|
05493Q
|
05493Q
MB658537
CLIP,FUEL VAPOR CONTROL LINE
|
MB658537 |
— | ||
|
05494B
|
05494B
MB329987
CLAMP, FUEL LINE
|
MB329987 |
— | ||
|
05494C
|
05494C
MB845486
CLAMP, FUEL LINE
|
MB845486 |
— | ||
|
05494D
|
05494D
MB890071
CLAMP, FUEL LINE
|
MB890071 |
— | ||
|
05496B
|
05496B
MF243648 BOLT, ENG SUPPORT RODWasher assembled,8x14 |
MF243648 |
from US $0.88 |
||
|
05496C
|
05496C
MF247253 BOLT, ENG OIL COOLERWasher assembled,8x25 |
MF247253 |
from US $0.64 |
||
|
05496D
|
05496D
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
05496E
|
05496E
MS240038 BOLT, FUEL LINEWasher assembled,6x16 |
MS240038 |
US $2.46 |
||
|
05497
|
05497
MS650013 EYEBOLT, FUEL LINE12x23 |
MS650013 |
from US $3.28 |
||
|
05498
|
05498
MU600698 HOSE, FUEL TANK6x2000 |
MU600698 |
US $97.13 |
||
|
05605
|
05605
MR161429
BRACKET,FUEL VAPOR CANISTER
|
MR161429 |
— | ||
|
05607
|
05607
MB925875
CANISTER,FUEL VAPOR
|
MB925875 |
— | ||
|
05607
|
05607
MR161425
CANISTER,FUEL VAPOR
|
MR161425 |
— | ||
|
05607
|
05607
MR258310
CANISTER,FUEL VAPOR
|
MR258310 |
— | ||
|
05611C
|
05611C
MB957190 CHECK VALVE, FUEL VAPOR CONTROL |
MB957190 |
US $14.06 |
||
|
05611C
|
05611C
MR161424
CHECK VALVE,FUEL VAPOR CONTROL
|
MR161424 |
— | ||
|
05615
|
05615
MB957603
HOLDER,FUEL VAPOR CANISTER
|
MB957603 |
— | ||
|
05615
|
05615
MR161426
BRACKET,FUEL VAPOR CANISTER
|
MR161426 |
— | ||
|
05617
|
05617
MR161423
HOSE,FUEL VAPOR PURGE
|
MR161423 |
— | ||
|
05617
|
05617
MR312518
HOSE,FUEL VAPOR PURGE
|
MR312518 |
— | ||
|
05622B
|
05622B
MB906386 PIPE, FUEL VAPOR |
MB906386 |
US $34.04 |
||
|
05951
|
05951
MR127972
PIPE,FUEL VAPOR CONTROL LINE
|
MR127972 |
— | ||
|
05951
|
05951
MR161692
PIPE,FUEL VAPOR CONTROL LINE
|
MR161692 |
— | ||
|
05959
|
05959
MS440502 NUT, FUEL TANKWasher assembled,6 |
MS440502 |
from US $1.74 |
||
|
05963C
|
05963C
MS605298 HOSE, FUEL TANK4x2000 |
MS605298 |
US $16.28 |
||
|
05963C
|
05963C
MU600908
HOSE,FUEL VAPOR CONTROL LINE
|
MU600908 |
— | ||
|
05963C
|
05963C
MU602666 HOSE, FUEL TANK6x660 |
MU602666 |
US $19.84 |
||
|
05963D
|
05963D
MR187265
HOSE,FUEL VAPOR CONTROL LINE
|
MR187265 |
— | ||
|
05963D
|
05963D
MR224687
HOSE,FUEL VAPOR CONTROL LINE
|
MR224687 |
— | ||
|
05963D
|
05963D
MS605746 HOSE, FUEL TANK8x2000 |
MS605746 |
US $45.14 |
||
|
05963E
|
05963E
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05963E
|
05963E
MU600908
HOSE,FUEL VAPOR CONTROL LINE
|
MU600908 |
— | ||
|
05963E
|
05963E
MU602666 HOSE, FUEL TANK6x660 |
MU602666 |
US $19.84 |
||
|
05963G
|
05963G
MR188611
HOSE,FUEL VAPOR CONTROL LINE
|
MR188611 |
— | ||
|
05963G
|
05963G
MR312520
HOSE,FUEL VAPOR CONTROL LINE
|
MR312520 |
— | ||
|
05963G
|
05963G
MS605158 HOSE, EMISSION SOLENOID VALVE6x2000 |
MS605158 |
from US $13.77 |
||
|
05966B
|
05966B
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05966E
|
05966E
MS660163 CLIP, ROCKER COVERD=11.6 |
MS660163 |
from US $0.84 |
||
|
05967
|
05967
MR187266
CLAMP,FUEL VAPOR CONTROL LINE
|
MR187266 |
— | ||
|
05971
|
05971
MF240050 BOLT, ROCKER COVERWasher assembled,8x14 |
MF240050 |
from US $1.07 |
||
|
05971B
|
05971B
MF240024 BOLT, FUEL TANKWasher assembled,6x14 |
MF240024 |
US $2.60 |
||
|
05971C
|
05971C
MF247223 BOLT, FUEL FILLER LID PANELWasher assembled,6x14 |
MF247223 |
US $1.63 |
||
|
56257L
|
56257L
MB858755
TUBE,BRAKE MAIN
|
MB858755 |
— | ||
|
56257R
|
56257R
MB858756
TUBE,BRAKE MAIN
|
MB858756 |
— | ||
|
