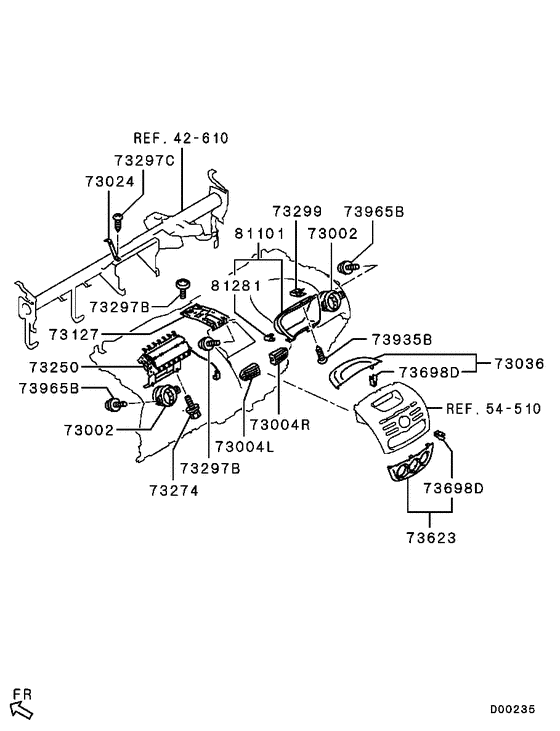

I/panel & related parts (AIR OUTLET,AIR BAG,BEZEL,ETC.) Diagram Mitsubishi I<AI>
- Year
- -
- Sales region
- EUR
- Note
- M(2WD/MPI/TURBO),4FA/T RHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
73002
|
73002
8030A001HA AIR OUTLET, INSTRUMENT PANEL SIDE |
8030A001HA |
US $57.72 |
||
| replacement | |||||
|
73002
|
73002
8030A121 no 'Representative Part Name' |
8030A121 |
US $113.22 |
||
|
73002
|
73002
8030A132 AIR OUTLET, INSTRUMENT PANEL SIDE |
8030A132 |
US $57.72 |
||
|
73004L
|
73004L
8030A028HA AIR OUTLET, INSTRUMENT PANEL, LH |
8030A028HA |
US $17.10 |
||
|
73004R
|
73004R
8030A029HA AIR OUTLET, INSTRUMENT PANEL, RH |
8030A029HA |
US $17.10 |
||
|
73024
|
73024
8000A072 BRACKET, INSTRUMENT PANEL |
8000A072 |
US $4.44 |
||
|
73036
|
73036
8002A001HA COVER, INSTRUMENT PANEL UNDER |
8002A001HA |
US $44.40 |
||
|
73036
|
73036
8002A001HB COVER, INSTRUMENT PANEL UNDER |
8002A001HB |
US $44.40 |
||
|
73127
|
73127
8000A074 REINFORCEMENT, INSTRUMENT PANEL, CTR |
8000A074 |
US $16.28 |
||
|
73250
|
73250
7030A008 MODULE, PASSENGER AIR BAG |
7030A008 |
US $1,598.40 |
||
|
73274
|
73274
MS240141 BOLT, FUEL FILLER LID PANELWasher assembled,6x16 |
MS240141 |
from US $1.25 |
||
|
73297B
|
73297B
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
73297C
|
73297C
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
73299
|
73299
MB135995 NUT, FUEL FILLER LID LOCKINGSpring,5 |
MB135995 |
from US $1.72 |
||
|
73623
|
73623
8002A216HA PANEL, INSTRUMENT PANEL CONSOLE |
8002A216HA |
US $39.22 |
||
|
73623
|
73623
8002A216HC PANEL, INSTRUMENT PANEL CONSOLE |
8002A216HC |
US $39.22 |
||
|
73698D
|
73698D
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.66 |
||
|
73935B
|
73935B
MF453093 SCREW, FUEL FILLER LID LOCKINGTapping,5x16 |
MF453093 |
from US $1.68 |
||
|
73965B
|
73965B
MB409437 SCREW, STEERING COLUMN COVERTapping,5x12 |
MB409437 |
from US $1.91 |
||
|
81101
|
81101
8060A001HA BEZEL, COMBINATION METER |
8060A001HA |
US $28.86 |
||
|
81281
|
81281
MR402859 CLIP, FLOOR CONSOLE |
MR402859 |
from US $1.66 |
||
|
