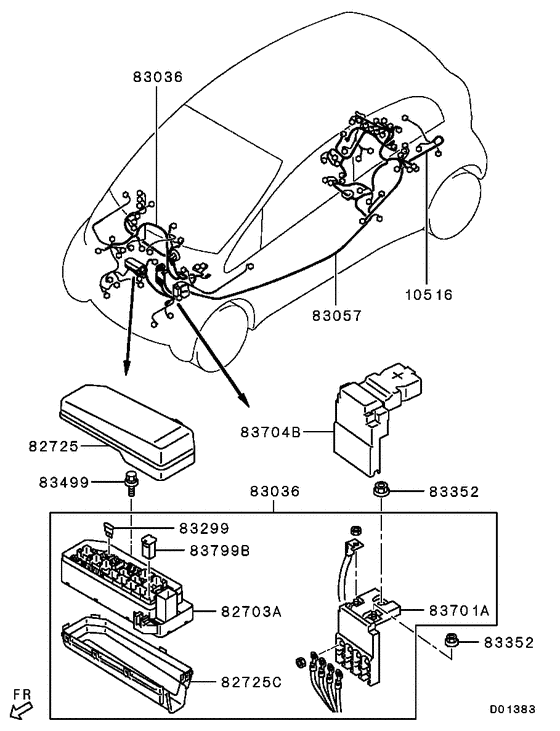

Wiring & attaching parts (WIRING HARNESS..FRONT,ENGINE) Diagram Mitsubishi I<AI>
- Year
- -
- Sales region
- EUR
- Note
- M(2WD/MPI/TURBO),4FA/T RHD
- drive
- 2WD
- transmission
- 4FA/T
- grade
- M
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10516
|
10516
8541B261
HARNESS,COOLING FAN
|
8541B261 |
— | ||
|
10516
|
10516
MM935117
HARNESS,COOLING FAN
|
MM935117 |
— | ||
|
82703A
|
82703A
MR969466 BOX ASSY, RELAY |
MR969466 |
US $65.12 |
||
|
82725
|
82725
8629A016
COVER,RELAY BOX
|
8629A016 |
— | ||
|
82725
|
82725
MM935118
COVER,RELAY BOX
|
MM935118 |
— | ||
|
82725C
|
82725C
8565A073 COVER, RELAY BOX |
8565A073 |
US $9.62 |
||
|
83036
|
83036
8501B351
HARNESS,CHASSIS,FR
|
8501B351 |
— | ||
|
83036
|
83036
MM935114
HARNESS,CHASSIS,FR
|
MM935114 |
— | ||
|
83057
|
83057
8503A121
HARNESS,ENG
|
8503A121 |
— | ||
|
83057
|
83057
MM935116
HARNESS,ENG
|
MM935116 |
— | ||
|
83299
|
83299
MS810876 FUSE, BODY WIRINGBlade(mini) type,10a |
MS810876 |
from US $1.25 |
||
|
83299
|
83299
MS810877 FUSE, SWITCHBlade(mini) type,15a |
MS810877 |
from US $1.15 |
||
|
83299
|
83299
MS810878 FUSE, BODY WIRINGBlade(mini) type,20a |
MS810878 |
from US $1.25 |
||
|
83352
|
83352
MF434103 NUT, ENG OIL PANFlange,6 |
MF434103 |
from US $0.10 |
||
|
83352
|
83352
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
83499
|
83499
MB249413
BOLT, FUEL LINE
|
MB249413 |
— | ||
| replacement | |||||
|
83499
|
83499
MB330946 BOLT, FUEL LINEWasher assembled,6x20 |
MB330946 |
US $1.92 |
||
|
83499
|
83499
MF140202 BOLT, FLANGE (6x10)Flange,6x10 |
MF140202 |
from US $1.66 |
||
|
83499
|
83499
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
83499
|
83499
MF140205 BOLT, CYLINDER BLOCKFlange,6x16 |
MF140205 |
from US $0.82 |
||
|
83499
|
83499
MF915000 BOLT, ROOM LAMPFlange,6x16 |
MF915000 |
US $1.64 |
||
|
83499
|
83499
MF915001 BOLT, BATTERY WIRINGFlange(earth)tapere,6x20 |
MF915001 |
US $0.89 |
||
|
83499
|
83499
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
83499
|
83499
MS240122 BOLT, ENG FR MOUNTINGWasher assembled,6x20 |
MS240122 |
from US $0.84 |
||
|
83499
|
83499
MS240187 BOLT, HOOD LOCKINGWasher assembled,6x16 |
MS240187 |
US $2.87 |
||
|
83499
|
83499
MU241013 BOLT, FR SEAT BELTWasher assembled,6x10 |
MU241013 |
US $2.37 |
||
|
83499
|
83499
MU241021 BOLT, ENG WIRINGWasher assembled,6x14 |
MU241021 |
US $2.37 |
||
|
83701A
|
83701A
8571A012 BOX ASSY, FUSIBLE LINK6p |
8571A012 |
from US $29.43 |
||
|
83704B
|
83704B
MN108116 COVER, FUSIBLE LINK BOX |
MN108116 |
from US $2.52 |
||
|
83799B
|
83799B
MU000431 FUSIBLE LINK30a,conn(mini jt) type |
MU000431 |
US $6.22 |
||
|
83799B
|
83799B
MU000432 FUSIBLE LINK40a,conn(mini jt) type |
MU000432 |
US $6.51 |
||
