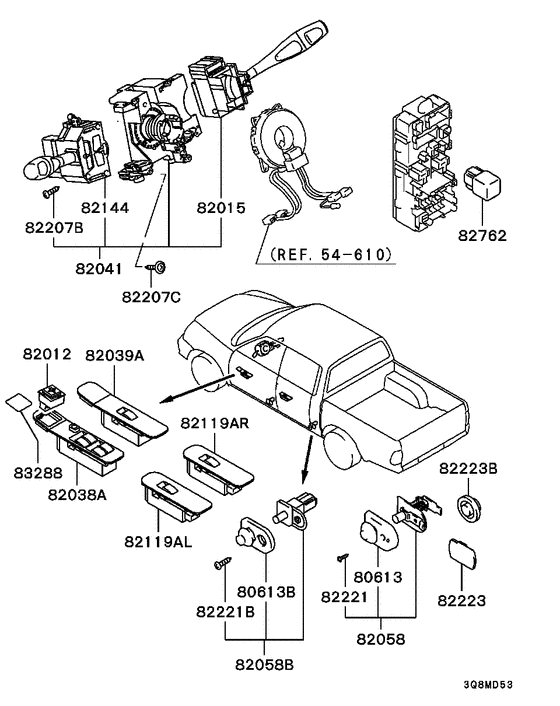

Switch & cigar lighter (SWITCH..COLUMN,POWER WINDOW,DOOR) Diagram Mitsubishi L200/TRITON/SPORTERO/STRADA
- Year
- 1996 - 2007
- Sales region
- EUR/MMTH
- Note
- M-LINE(SINGLE CAB,TURBO),5FM/T RHD
- drive
- 4WD
- transmission
- 5FM/T
- grade
- M-LINE
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
80613
|
80613
MB921445 CAP, DOOR LAMP SWITCH |
MB921445 |
US $3.85 |
||
|
80613B
|
80613B
MB628452 CAP, DOOR LAMP SWITCH |
MB628452 |
from US $3.16 |
||
|
80613B
|
80613B
MR459137 CAP, DOOR LAMP SWITCH |
MR459137 |
US $4 |
||
|
82012
|
82012
MB603049 SWITCH, REMOTE CONTROL MIRROR |
MB603049 |
from US $50.72 |
||
|
82012
|
82012
MR356925 SWITCH, REMOTE CONTROL MIRROR |
MR356925 |
US $68.08 |
||
|
82015
|
82015
MR252764 SWITCH, WINDSHIELD WIPER & WINDSHIELD WASHER |
MR252764 |
US $155.40 |
||
|
82015
|
82015
MR309688 SWITCH, WINDSHIELD WIPER & WINDSHIELD WASHER |
MR309688 |
US $142.08 |
||
|
82015
|
82015
MR309690 SWITCH, WINDSHIELD WIPER & WINDSHIELD WASHER |
MR309690 |
US $128.76 |
||
|
82015
|
82015
MR329665 SWITCH,WINDSHIELD WIPER & WINDSHIELD WASHER |
MR329665 |
US $140.52 |
||
|
82015
|
82015
MR459873 SWITCH, WINDSHIELD WIPER & WINDSHIELD WASHER |
MR459873 |
US $132.70 |
||
|
82038A
|
82038A
MR217492
SWITCH ASSY,FR DOOR POWER WINDOW DRIVER SIDE
|
MR217492 |
— | ||
|
82039A
|
82039A
MR732122 SWITCH ASSY, FR DOOR POWER WINDOW ASSISTANT SIDE |
MR732122 |
US $177.60 |
||
|
82041
|
82041
MB953287 SWITCH, STEERING COLUMN |
MB953287 |
US $332.59 |
||
|
82041
|
82041
MR228486 SWITCH, STEERING COLUMN |
MR228486 |
US $358.18 |
||
|
82041
|
82041
MR277881
SWITCH, STEERING COLUMN
|
MR277881 |
— | ||
|
82041
|
82041
MR277892 SWITCH, STEERING COLUMN |
MR277892 |
US $359.63 |
||
|
82041
|
82041
MR329652
SWITCH,STEERING COLUMN
|
MR329652 |
— | ||
|
82041
|
82041
MR329654 SWITCH, STEERING COLUMN |
MR329654 |
US $297.02 |
||
|
82041
|
82041
MR329657
SWITCH,STEERING COLUMN
|
MR329657 |
— | ||
|
82058
|
82058
MB818520 SWITCH KIT, DOOR LAMP |
MB818520 |
from US $10.53 |
||
|
82058B
|
82058B
MB698713 SWITCH KIT, DOOR LAMP1-connector(2p) |
MB698713 |
from US $11.74 |
||
|
82058B
|
82058B
MR439196 SWITCH KIT, DOOR LAMPCord less,black |
MR439196 |
US $12.14 |
||
|
82144
|
82144
MR252758 SWITCH, TURN SIGNAL LAMP & LIGHTING |
MR252758 |
US $155.40 |
||
|
82144
|
82144
MR309685 SWITCH, TURN SIGNAL LAMP & LIGHTING |
MR309685 |
US $122.44 |
||
|
82144
|
82144
MR309686 SWITCH, TURN SIGNAL LAMP & LIGHTING |
MR309686 |
from US $109.44 |
||
|
82144
|
82144
MR329666
SWITCH,TURN SIGNAL LAMP & LIGHTING
|
MR329666 |
— | ||
|
82144
|
82144
MR459876 SWITCH, TURN SIGNAL LAMP & LIGHTING |
MR459876 |
US $171 |
||
|
82207B
|
82207B
MF456805 SCREW, CONSOLE METERTapping,3x12 |
MF456805 |
US $2.19 |
||
|
82207B
|
82207B
MR329663 SCREW, STEERING COLUMN SWITCH |
MR329663 |
US $1.63 |
||
|
82207C
|
82207C
MR329664 SCREW, STEERING COLUMN SWITCH |
MR329664 |
US $2.07 |
||
|
82207C
|
82207C
MS350047 SCREW, STEERING COLUMN COVERWasher assembled,5x25 |
MS350047 |
US $2.07 |
||
|
82221
|
82221
MB383490 SCREW, RR PILLAR GARNISHTapping,5x14 |
MB383490 |
US $2.60 |
||
|
82221B
|
82221B
MB223893
SCREW, CTR PILLAR TRIM
|
MB223893 |
— | ||
| replacement | |||||
|
82221B
|
82221B
MF453033 SCREW, TAPPING, 5x16Tapping,5x16 |
MF453033 |
from US $1.66 |
||
|
82221B
|
82221B
MB383490 SCREW, RR PILLAR GARNISHTapping,5x14 |
MB383490 |
US $2.60 |
||
|
82762
|
82762
MB183865 RELAY20a/12v,g8ms-1a24t-r-f13 |
MB183865 |
from US $35.20 |
||
|
83288
|
83288
MB170289 COVER, RR WINDOW DEFOGGER SWITCH BLIND |
MB170289 |
from US $6.10 |
||
|
83288
|
83288
MB803350 PLUG, REMOTE CONTROL MIRROR WIRING |
MB803350 |
from US $4.29 |
||
|
54 610
|
Relay,flasher & sensor
54 610
|
||||
|
54 610
|
Relay,flasher & sensor
54 610
|
||||
|
54 610
|
Relay,flasher & sensor
54 610
|
||||
|
54 610
|
Relay,flasher & sensor
54 610
|
||||
|
54 610
|
Relay,flasher & sensor
54 610
|
||||
|
54 610
|
Relay,flasher & sensor
54 610
|
||||
