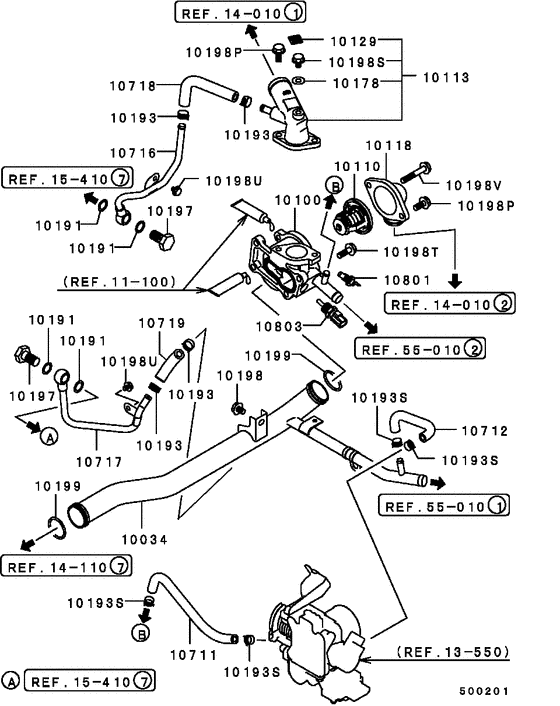

Water pipe & thermostat (ALL) Diagram Mitsubishi LANCER
- Year
- 1992 - 1993
- Sales region
- Japan
- Note
- RS EVOLUTION(MPI/4WD),5FM/T
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- RS EVOLUTION
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10034
|
10034
MD189203
PIPE, WATER PUMP INLET
|
MD189203 |
— | ||
|
10100
|
10100
MD188386
CASE, THERMOSTAT
|
MD188386 |
— | ||
|
10110
|
10110
MD158570
THERMOSTAT KIT
|
MD158570 |
— | ||
| replacement | |||||
|
10110
|
10110
MD315301 THERMOSTAT82 |
MD315301 |
from US $15.97 |
||
|
10113
|
10113
MD192430
FITTING, COOLING WATER OUTLET HOSE
|
MD192430 |
— | ||
|
10118
|
10118
MD192429 FITTING, COOLING WATER INLET HOSE |
MD192429 |
US $61.18 |
||
|
10129
|
10129
MD183288
LABEL, THERMOSTAT CASE CAUTION
|
MD183288 |
— | ||
|
10178
|
10178
MD178052 WASHER, COOLING WATER LINE |
MD178052 |
US $2.46 |
||
|
10191
|
10191
MF660065 GASKET, CYLINDER BLOCKD=14 |
MF660065 |
from US $0.78 |
||
|
10193
|
10193
MS660243 CLIP, COOLING WATER LINE15.5 |
MS660243 |
from US $5.19 |
||
|
10193S
|
10193S
MS660240 CLIP, ROCKER COVERD=13.1 |
MS660240 |
from US $0.86 |
||
|
10197
|
10197
MF650114 EYEBOLT, COOLING WATER LINE14x27 |
MF650114 |
from US $5.61 |
||
|
10198
|
10198
MF140021 BOLT, ACCEL CABLE SUPPORTFlange,8x12 |
MF140021 |
from US $0.43 |
||
|
10198P
|
10198P
MF140025 BOLT, RESISTORFlange,8x20 |
MF140025 |
from US $0.68 |
||
|
10198T
|
10198T
MF140227 BOLT, ROCKER COVERFlange,8x25 |
MF140227 |
from US $0.96 |
||
|
10198U
|
10198U
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
10198V
|
10198V
MF140235 BOLT, TIMING GEAR CASEFlange,8x50 |
MF140235 |
from US $1.40 |
||
|
10199
|
10199
MD030764 O-RING, WATER PUMP INRD=33.4 |
MD030764 |
from US $2.81 |
||
|
10711
|
10711
MD193577 HOSE, THROTTLE BODY WATER FEED |
MD193577 |
US $16.42 |
||
|
10712
|
10712
MD195053
HOSE, THROTTLE BODY WATER RETURN
|
MD195053 |
— | ||
|
10716
|
10716
MD192432 PIPE, T/C WATER FEED |
MD192432 |
US $50.32 |
||
|
10717
|
10717
MD195148 PIPE, T/C WATER RETURN |
MD195148 |
US $54.72 |
||
|
10718
|
10718
MD112349 HOSE, THROTTLE BODY WATER FEED |
MD112349 |
US $21.20 |
||
|
10719
|
10719
MD167360
HOSE, COOLING WATER LINE
|
MD167360 |
— | ||
|
10719
|
10719
MD169143 HOSE, ENG OIL COOLER WATER FEED9x80 |
MD169143 |
US $8.89 |
||
|
10801
|
10801
MD091056 GAUGE UNIT, WATER TEMPERATURE |
MD091056 |
from US $33.01 |
||
|
10803
|
10803
MD182467
SENSOR UNIT, WATER TEMPERATURE
|
MD182467 |
— | ||
| replacement | |||||
|
10803
|
10803
1308A012 SENSOR UNIT, WATER TEMPERATURE |
1308A012 |
from US $29.64 |
||
|
11 100
|
Liquid gasket
11 100
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
14 010
|
Radiator,hose & condenser tank
14 010
|
||||
|
14 110
|
Water pump
14 110
|
||||
|
14 110
|
Water pump
14 110
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
|
15 410
|
Turbocharger & supercharger
15 410
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
|
55 010
|
Heater unit & piping
55 010
|
||||
