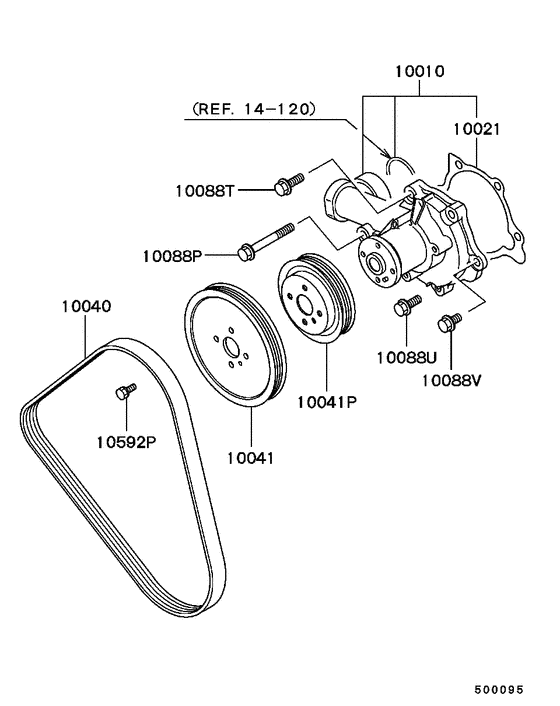

Water pump (ALL) Diagram Mitsubishi LANCER
- Year
- 1992 - 1993
- Sales region
- Japan
- Note
- RS EVOLUTION(MPI/4WD),5FM/T
- drive
- 4WD/4WD
- transmission
- 5FM/T
- grade
- RS EVOLUTION
- body
- SEDAN
Difficulties in parts search?
Parts list
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
10010
|
10010
MD971538 WATER PUMP KIT |
MD971538 |
US $345.07 |
||
|
10010
|
10010
MD972050 WATER PUMP KIT |
MD972050 |
US $268.13 |
||
|
10021
|
10021
MD168841
GASKET, WATER PUMP
|
MD168841 |
— | ||
| replacement | |||||
|
10021
|
10021
MD315465 GASKET, WATER PUMP |
MD315465 |
from US $5.47 |
||
|
10040
|
10040
MD186125 BELT, ALTERNATOR & OTHERS985 |
MD186125 |
from US $26.48 |
||
|
10041
|
10041
MD195107
PULLEY, WATER PUMP
|
MD195107 |
— | ||
|
10041P
|
10041P
MD191110 PULLEY, WATER PUMPRibbed |
MD191110 |
US $36.94 |
||
|
10088P
|
10088P
MF140238 BOLT, WATER PUMPFlange,8x65 |
MF140238 |
from US $2.30 |
||
|
10088T
|
10088T
MF140027 BOLT, RESISTORFlange,8x25 |
MF140027 |
from US $0.84 |
||
|
10088U
|
10088U
MF140026 BOLT, OIL FILTERFlange,8x22 |
MF140026 |
from US $2.13 |
||
|
10088V
|
10088V
MF140022 BOLT, ACCEL CABLE SUPPORTFlange,8x14 |
MF140022 |
US $2.46 |
||
|
10592P
|
10592P
MF241225 BOLT, ROCKER COVERWasher assembled,6x16 |
MF241225 |
from US $1.01 |
||
|
14 120
|
Water pipe & thermostat
14 120
|
||||
