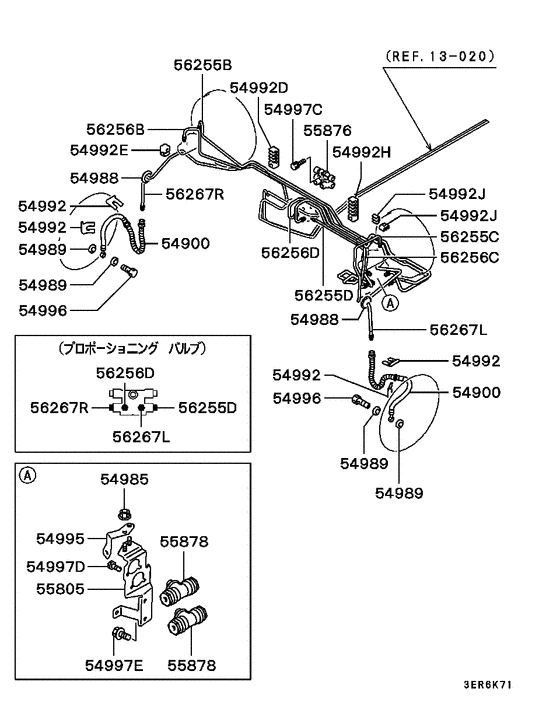

Brake line (FRONT..EXC ABS) Diagram Mitsubishi LANCER
- Year
- 1996 - 2000
- Sales region
- Japan
- Note
- DRIVER'S SCHOOL,5FM/T
- transmission
- 5FM/T
- grade
- DRIVER'S SCHOOL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
54900
|
54900
MR129882 HOSE, FR BRAKE252+200 |
MR129882 |
US $49.93 |
||
|
54985
|
54985
MS440503 NUT, ENG FR MOUNTINGWasher assembled,8 |
MS440503 |
from US $0.84 |
||
|
54988
|
54988
MB316561 GROMMET, FRAME BRAKE FLUID LINE24.5 |
MB316561 |
US $3.28 |
||
|
54989
|
54989
MA111832 GASKET, CLUTCH M/CYL10.2 |
MA111832 |
from US $1.07 |
||
|
54992
|
54992
MA431825 CLIP, BRAKE FLUID LINE13 |
MA431825 |
from US $1.83 |
||
|
54992D
|
54992D
MR205046 CLIP, BRAKE FLUID LINE4.8-4.8-4.8-4.8 |
MR205046 |
US $3.97 |
||
|
54992E
|
54992E
MR129462 CLIP, RR AXLE BRAKE TUBE4.8 |
MR129462 |
from US $2.40 |
||
|
54992H
|
54992H
MR129463 CLIP, BRAKE FLUID LINE4.76-4.76-4.76-4.76-4.76 |
MR129463 |
from US $3.06 |
||
|
54992J
|
54992J
MB928450 CLIP, BRAKE FLUID LINE |
MB928450 |
US $2.07 |
||
|
54995
|
54995
MR307330 BRACKET, BRAKE FLUID LINE |
MR307330 |
US $9.47 |
||
|
54996
|
54996
MB082326 EYEBOLT, RR AXLE BRAKE TUBE10x21 |
MB082326 |
from US $5.58 |
||
|
54996
|
54996
MR249625
EYEBOLT, BRAKE FLUID LINE
|
MR249625 |
— | ||
| replacement | |||||
|
54996
|
54996
MU001458 EYEBOLT, RR AXLE BRAKE TUBE |
MU001458 |
from US $3.37 |
||
|
54997C
|
54997C
MF240059 BOLT, CYLINDER HEADWasher assembled,8x35 |
MF240059 |
from US $1.29 |
||
|
54997D
|
54997D
MF243622 BOLT, ROCKER COVERWasher assembled,6x12 |
MF243622 |
from US $1.33 |
||
|
54997E
|
54997E
MS240095 BOLT, ENG OIL COOLER LINEWasher assembled,8x16 |
MS240095 |
US $2.74 |
||
|
55805
|
55805
MR249958 BRACKET, BRAKE FLUID LINE VALVE |
MR249958 |
US $40.70 |
||
|
55876
|
55876
MB699553 VALVE, BRAKE FLUID PROPORTIONING |
MB699553 |
US $186.05 |
||
|
55876
|
55876
MB699641 VALVE, BRAKE FLUID PROPORTIONING |
MB699641 |
US $86.58 |
||
|
55878
|
55878
MB587493 VALVE, BRAKE CHANGE |
MB587493 |
US $768.77 |
||
|
56255B
|
56255B
MR249945 TUBE, BRAKE M/CYL PRIMARY |
MR249945 |
US $28.12 |
||
|
56255B
|
56255B
MR307335 TUBE, BRAKE M/CYL PRIMARY |
MR307335 |
US $28.12 |
||
|
56255C
|
56255C
MR249948 TUBE, BRAKE M/CYL PRIMARY |
MR249948 |
US $12.28 |
||
|
56255C
|
56255C
MR307337 TUBE, BRAKE M/CYL PRIMARY |
MR307337 |
US $12.14 |
||
|
56255D
|
56255D
MR249950 TUBE, BRAKE M/CYL PRIMARY |
MR249950 |
US $17.76 |
||
|
56255D
|
56255D
MR249952 TUBE, BRAKE M/CYL PRIMARY |
MR249952 |
US $7.55 |
||
|
56256B
|
56256B
MR249946 TUBE, BRAKE M/CYL SECONDARY |
MR249946 |
US $31.08 |
||
|
56256B
|
56256B
MR307336 TUBE, BRAKE M/CYL SECONDARY |
MR307336 |
US $31.82 |
||
|
56256C
|
56256C
MR249949 TUBE, BRAKE M/CYL SECONDARY |
MR249949 |
US $8.73 |
||
|
56256C
|
56256C
MR307338 TUBE, BRAKE M/CYL SECONDARY |
MR307338 |
US $8.73 |
||
|
56256D
|
56256D
MR249951 TUBE, BRAKE M/CYL SECONDARY |
MR249951 |
US $22.20 |
||
|
56256D
|
56256D
MR249953 TUBE, BRAKE M/CYL SECONDARY |
MR249953 |
US $8.14 |
||
|
56267L
|
56267L
MR249947 TUBE, FR BRAKE, LH |
MR249947 |
US $22.94 |
||
|
56267L
|
56267L
MR249954 TUBE, FR BRAKE, LH |
MR249954 |
US $15.54 |
||
|
56267R
|
56267R
MR249829 TUBE, FR BRAKE, RH |
MR249829 |
US $17.10 |
||
|
56267R
|
56267R
MR249955 TUBE, FR BRAKE, RH |
MR249955 |
US $31.08 |
||
|
