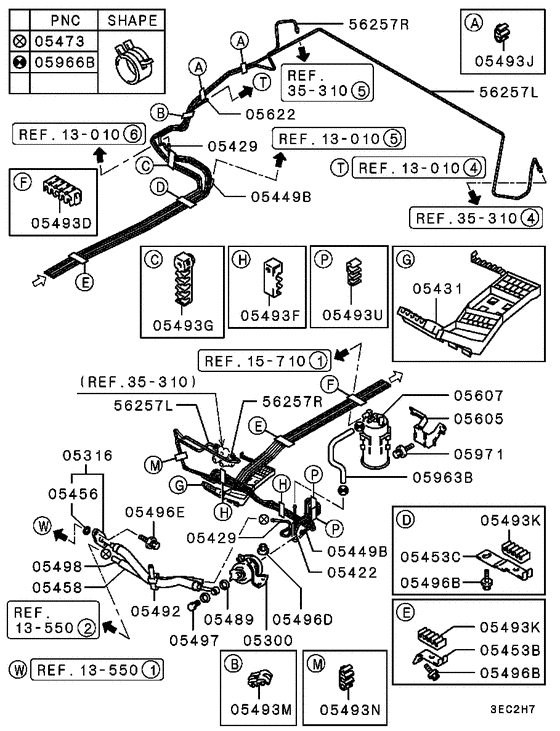

Fuel line & vapor gas control (ALL) Diagram Mitsubishi LANCER
- Year
- 1996 - 2000
- Sales region
- Japan
- Note
- DRIVER'S SCHOOL,5FM/T
- transmission
- 5FM/T
- grade
- DRIVER'S SCHOOL
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
05300
|
05300
MR281698 FUEL FILTER |
MR281698 |
US $105.08 |
||
|
05316
|
05316
MR281703 HOSE, FUEL FILTER HIGH PRESSURE |
MR281703 |
US $93.98 |
||
|
05429
|
05429
MR281695 PIPE, FUEL RETURN |
MR281695 |
US $46.62 |
||
|
05431
|
05431
MR224943 PROTECTOR, FUEL PIPE |
MR224943 |
US $10.53 |
||
|
05449B
|
05449B
MR281693 PIPE, FUEL LINE |
MR281693 |
US $52.54 |
||
|
05453B
|
05453B
MB678928 CLAMP, FUEL LINE |
MB678928 |
US $7.80 |
||
|
05453C
|
05453C
MB845579 CLAMP, FUEL LINE |
MB845579 |
US $7.80 |
||
|
05456
|
05456
MB554317 O-RING, FUEL LINE11.8 |
MB554317 |
from US $2.07 |
||
|
05458
|
05458
MB248236
TUBE, FUEL RETURN LINE
|
MB248236 |
— | ||
| replacement | |||||
|
05458
|
05458
MB133481 TUBE, FUEL RETURN LINE |
MB133481 |
US $6.84 |
||
|
05473
|
05473
MB329606 CLIP, FUEL RETURN LINE |
MB329606 |
US $4.51 |
||
|
05489
|
05489
MB906711 GASKET, FUEL LINE |
MB906711 |
US $3.69 |
||
|
05492
|
05492
MB249339 BAND, ENG BREATHERL=169.5 |
MB249339 |
from US $1.95 |
||
|
05493D
|
05493D
MB329982 CLIP, FUEL LINE |
MB329982 |
US $8.21 |
||
|
05493F
|
05493F
MR204057 CLIP, FUEL LINE |
MR204057 |
US $7.39 |
||
|
05493G
|
05493G
MR204058 CLIP, FUEL LINE |
MR204058 |
US $7.39 |
||
|
05493J
|
05493J
MB082164 CLIP, FUEL RETURN LINE4.6 |
MB082164 |
US $3.97 |
||
|
05493K
|
05493K
MB329980 CLIP, FUEL LINE |
MB329980 |
US $7.52 |
||
|
05493M
|
05493M
MR239559 CLAMP, FUEL LINE |
MR239559 |
US $6.16 |
||
|
05493N
|
05493N
MB668684 CLIP, BRAKE FLUID LINE4.7-4.7-4.7 |
MB668684 |
from US $1.66 |
||
|
05493U
|
05493U
MB890072 CLIP, FUEL LINE |
MB890072 |
US $4.38 |
||
|
05496B
|
05496B
MS240121 BOLT, CONNRODWasher assembled,6x16 |
MS240121 |
from US $1.70 |
||
|
05496D
|
05496D
MS240125 BOLT, FUEL TANKWasher assembled,8x20 |
MS240125 |
from US $1.05 |
||
|
05496E
|
05496E
MU240020 BOLT, FUEL LINEWasher assembled,6x20 |
MU240020 |
US $2.37 |
||
|
05497
|
05497
MS650013 EYEBOLT, FUEL LINE12x23 |
MS650013 |
from US $3.28 |
||
|
05498
|
05498
MU600860 HOSE, FUEL RETURN LINE6x600 |
MU600860 |
US $24.62 |
||
|
05605
|
05605
MR281700 BRACKET, FUEL VAPOR CANISTER |
MR281700 |
US $13.47 |
||
|
05607
|
05607
MR239793
CANISTER, FUEL VAPOR
|
MR239793 |
— | ||
|
05622
|
05622
MR281697 PIPE, FUEL VAPOR |
MR281697 |
US $59.20 |
||
|
05963B
|
05963B
MR355337 HOSE, FUEL VAPOR CONTROL LINE |
MR355337 |
US $5.62 |
||
|
05966B
|
05966B
MS660169 CLIP, FUEL TANKD=10 |
MS660169 |
from US $0.92 |
||
|
05971
|
05971
MF240051 BOLT, ROCKER COVERWasher assembled,8x16 |
MF240051 |
from US $0.96 |
||
|
56257L
|
56257L
MR205067 TUBE, BRAKE MAIN |
MR205067 |
US $54.72 |
||
|
56257R
|
56257R
MR235863 TUBE, BRAKE MAIN |
MR235863 |
US $41.72 |
||
|
13 010
|
Fuel tank
13 010
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
13 550
|
Injector & throttle body
13 550
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
15 710
|
Emission control
15 710
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
|
35 310
|
Brake line
35 310
|
||||
