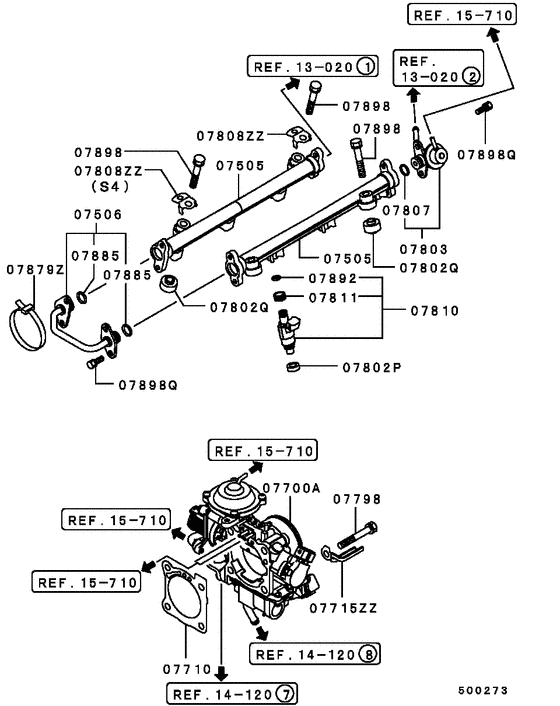

Injector & throttle body (ALL (ASSEMBLY)) Diagram Mitsubishi LEGNUM
- Year
- 1996 - 1997
- Sales region
- Japan
- Note
- 20ST,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 20ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
07505
|
07505
MD319815 PIPE, FUEL DELIVERY |
MD319815 |
US $109.52 |
||
|
07506
|
07506
MD304823 PIPE, FUEL DELIVERY INTERMEDIATE |
MD304823 |
US $55.50 |
||
|
07506
|
07506
MD338409 PIPE, FUEL DELIVERY INTERMEDIATE |
MD338409 |
US $60.68 |
||
|
07700A
|
07700A
MD322979 Throttle Body AssyAc54-079 |
MD322979 |
US $1,432.70 |
||
|
07710
|
07710
MD188086
GASKET, THROTTLE BODY
|
MD188086 |
— | ||
| replacement | |||||
|
07710
|
07710
MD184046 GASKET, THROTTLE BODY |
MD184046 |
from US $2.81 |
||
|
07715ZZ
|
07715ZZ
MD342188 CLIP, CYLINDER HEAD40 |
MD342188 |
US $2.22 |
||
|
07798
|
07798
MF240064 BOLT, OIL FILTERWasher assembled,8x55 |
MF240064 |
US $4.51 |
||
|
07802P
|
07802P
MD087060 INSULATOR, FUEL INJECTOR |
MD087060 |
from US $1.54 |
||
|
07802Q
|
07802Q
MD095402 INSULATOR, FUEL DELIVERY PIPE |
MD095402 |
from US $1.38 |
||
|
07803
|
07803
MD322977
REGULATOR, MPI DELIVERY PIPE PRESSURE
|
MD322977 |
— | ||
|
07803
|
07803
MD337895
REGULATOR, MPI DELIVERY PIPE PRESSURE
|
MD337895 |
— | ||
| replacement | |||||
|
07803
|
07803
MN149093
REGULATOR, MPI DELIVERY PIPE PRESSURE
|
MN149093 |
— | ||
|
07807
|
07807
MD614756
O-RING, FUEL REGULATOR
|
MD614756 |
— | ||
|
07808ZZ
|
07808ZZ
MD340972 BRACKET, FUEL INJECTOR HARNESS SUPPORT |
MD340972 |
US $2.07 |
||
|
07810
|
07810
MD319790 INJECTOR KIT, FUEL |
MD319790 |
US $232.56 |
||
|
07811
|
07811
MD614805 SHEET, FUEL INJECTOR |
MD614805 |
from US $3.72 |
||
|
07885
|
07885
MB554317 O-RING, FUEL LINE11.8 |
MB554317 |
from US $2.07 |
||
|
07892
|
07892
MD614813
O-RING, FUEL INJECTOR
|
MD614813 |
— | ||
| replacement | |||||
|
07892
|
07892
1465A188 O-RING, FUEL INJECTOR7.6 |
1465A188 |
from US $2.75 |
||
|
07898
|
07898
MF240662 BOLT, FUEL INJECTORWasher assembled,8x45 |
MF240662 |
US $3.55 |
||
|
07898Q
|
07898Q
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
