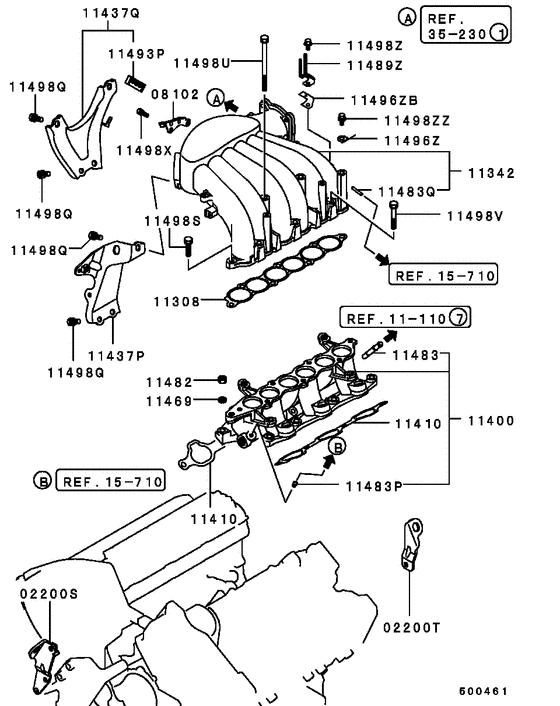

Inlet manifold (ALL) Diagram Mitsubishi LEGNUM
- Year
- 1996 - 1997
- Sales region
- Japan
- Note
- 20ST,5FM/T
- drive
- 2WD
- transmission
- 5FM/T
- grade
- 20ST
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200S
|
02200S
MD316249 ENGINE HANGER |
MD316249 |
US $22.20 |
||
|
02200T
|
02200T
MD319116 ENGINE HANGER |
MD319116 |
US $11.69 |
||
|
08102
|
08102
MD318180 BRACKET, ACCEL CABLE |
MD318180 |
US $9.18 |
||
|
11308
|
11308
MD175776 GASKET, ENG AIR INTAKE SURGE TANK |
MD175776 |
from US $12.19 |
||
|
11342
|
11342
MD340303 TANK, ENG AIR INTAKE SURGE |
MD340303 |
US $649.38 |
||
|
11400
|
11400
MD338218 MANIFOLD, INLET |
MD338218 |
US $583.86 |
||
|
11410
|
11410
MD308038
GASKET, INLET MANIFOLD
|
MD308038 |
— | ||
|
11437P
|
11437P
MD340708 STAY, INLET MANIFOLD |
MD340708 |
US $42.18 |
||
|
11437Q
|
11437Q
MD340709 STAY, INLET MANIFOLD |
MD340709 |
US $49.58 |
||
|
11469
|
11469
MF450495 WASHER, CYLINDER HEADSpring,8 |
MF450495 |
US $4.51 |
||
|
11482
|
11482
MF430181 NUT, CYLINDER HEAD8 |
MF430181 |
US $2.74 |
||
|
11483
|
11483
MD135983 NIPPLE, INLET MANIFOLD8 |
MD135983 |
US $5.18 |
||
|
11483P
|
11483P
MD305458 NIPPLE, INLET MANIFOLD6 |
MD305458 |
US $4.59 |
||
|
11483Q
|
11483Q
MD108999 NIPPLE, INLET MANIFOLD4 |
MD108999 |
US $4.59 |
||
|
11489Z
|
11489Z
MD336909 CLIP, INLET MANIFOLD |
MD336909 |
US $3.70 |
||
|
11493P
|
11493P
MD017652 CLAMP, ROCKER COVER |
MD017652 |
US $2.05 |
||
|
11496Z
|
11496Z
MD323562 BRACKET, INLET MANIFOLD |
MD323562 |
US $6.66 |
||
|
11496ZB
|
11496ZB
MD305150 BRACKET, OXYGEN SENSOR CONNECTOR |
MD305150 |
US $6.66 |
||
|
11498Q
|
11498Q
MF241852 BOLT, INLET MANIFOLDWasher assembled,8x18 |
MF241852 |
US $3.28 |
||
|
11498S
|
11498S
MF241857 BOLT, THROTTLE BODYWasher assembled,8x30 |
MF241857 |
US $2.37 |
||
|
11498U
|
11498U
MD195686 BOLT, INLET MANIFOLDWasher assembled,8x115 |
MD195686 |
US $4.51 |
||
|
11498V
|
11498V
MF241863 BOLT, INLET MANIFOLDWasher assembled,8x50 |
MF241863 |
US $3.70 |
||
|
11498X
|
11498X
MF241224 BOLT, CYLINDER HEADWasher assembled,6x14 |
MF241224 |
from US $0.78 |
||
|
11498Z
|
11498Z
MF140723 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140723 |
US $3.56 |
||
|
11498ZZ
|
11498ZZ
MF241250 BOLT, ELECTRIC FUEL PUMPWasher assembled,8x14 |
MF241250 |
US $2.46 |
||
|
