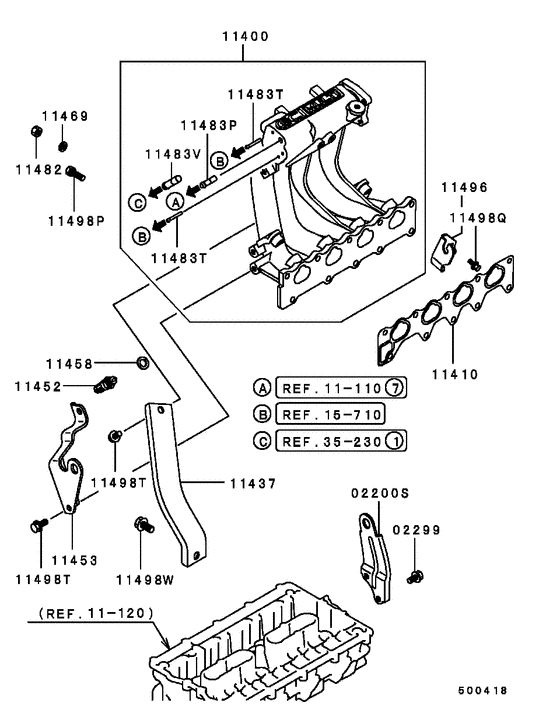

Inlet manifold (9509.1- DOHC) Diagram Mitsubishi MINICA
- Year
- 1993 - 1998
- Sales region
- Japan
- Note
- DANGAN-4(2DOOR/MPI),5FM/T
- drive
- 4WD
- transmission
- 5FM/T
- grade
- DANGAN-4
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
02200S
|
02200S
MD193799 ENGINE HANGER |
MD193799 |
US $9.77 |
||
|
02299
|
02299
MF140023 BOLT, ACCEL CABLE SUPPORTFlange,8x16 |
MF140023 |
from US $0.53 |
||
|
11400
|
11400
MD193217 MANIFOLD, INLET |
MD193217 |
US $412.05 |
||
|
11400
|
11400
MD327837 MANIFOLD, INLET |
MD327837 |
US $410.59 |
||
|
11410
|
11410
MD199682 GASKET, INLET MANIFOLD |
MD199682 |
from US $16.30 |
||
|
11437
|
11437
MD304070 STAY, INLET MANIFOLD |
MD304070 |
US $51.06 |
||
|
11437
|
11437
MD327839 STAY, INLET MANIFOLD |
MD327839 |
US $42.18 |
||
|
11452
|
11452
MD180682 SENSOR, SURGE TANK AIR TEMPERATURE |
MD180682 |
US $61.42 |
||
|
11452
|
11452
MD326170 SENSOR, SURGE TANK AIR TEMPERATURE |
MD326170 |
from US $25.14 |
||
|
11453
|
11453
MD193798 PROTECTOR, INLET MANIFOLD |
MD193798 |
US $19.98 |
||
|
11458
|
11458
MF660064 GASKET, CYLINDER BLOCKD=12 |
MF660064 |
from US $0.57 |
||
|
11469
|
11469
MF450405 WASHER, CYLINDER HEADSpring,8 |
MF450405 |
from US $0.43 |
||
|
11482
|
11482
MF430005 NUT, ROCKER COVER8 |
MF430005 |
from US $1.01 |
||
|
11483P
|
11483P
MD024599 NIPPLE, ROCKER COVER8 |
MD024599 |
US $5.03 |
||
|
11483T
|
11483T
MD141670 NIPPLE, INLET MANIFOLD4 |
MD141670 |
US $6.22 |
||
|
11483V
|
11483V
MB618372 NIPPLE, INLET MANIFOLD9.9 |
MB618372 |
US $8.14 |
||
|
11496
|
11496
MD302060 BRACKET, INLET MANIFOLD |
MD302060 |
US $9.18 |
||
|
11498P
|
11498P
MF240055 BOLT, CYLINDER HEADWasher assembled,8x25 |
MF240055 |
from US $1.23 |
||
|
11498Q
|
11498Q
MF140203 BOLT, ACCEL CABLE SUPPORTFlange,6x12 |
MF140203 |
from US $0.78 |
||
|
11498T
|
11498T
MF140023 BOLT, ACCEL CABLE SUPPORTFlange,8x16 |
MF140023 |
from US $0.53 |
||
|
11498W
|
11498W
MF140058 BOLT, GEARSHIFT LINKFlange,10x20 |
MF140058 |
from US $1.37 |
||
|
