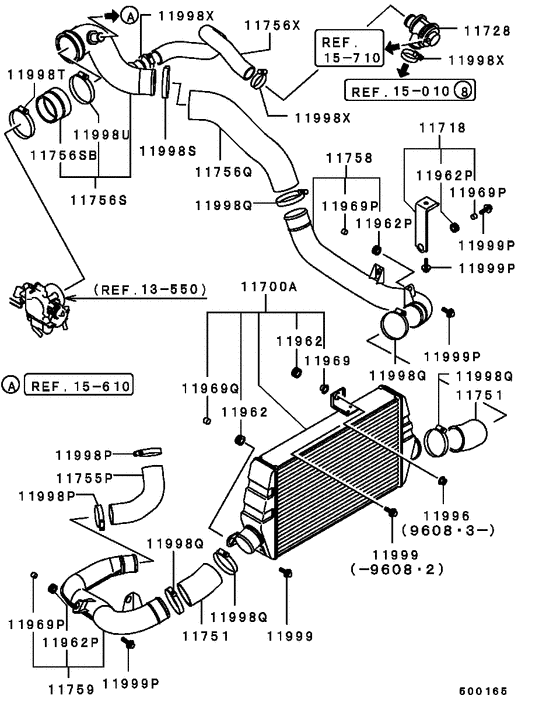

Turbocharger & supercharger (ALL (INTER COOLER)) Diagram Mitsubishi MIRAGE
- Year
- 1998 - 2000
- Sales region
- Japan
- Note
- EVO-5 GSR(98M)/EVO-6 GSR(99,00M),5M/T
- drive
- 4WD
- grade
- EVO-5 GSR
- body
- SEDAN
Difficulties in parts search?
Difficulties in parts search?
| Description | OEM Part # | Price | |||
|---|---|---|---|---|---|
|
11700A
|
11700A
MR404312 INTER COOLER ASSY |
MR404312 |
US $1,454.40 |
||
|
11700A
|
11700A
MR481441
INTER COOLER ASSY
|
MR481441 |
— | ||
|
11718
|
11718
MR224870
BRACKET, INTER COOLER PIPE
|
MR224870 |
— | ||
|
11728
|
11728
MR266992 VALVE, AIR BY-PASS |
MR266992 |
US $94.39 |
||
|
11751
|
11751
MR266977
HOSE, INTER COOLER AIR
|
MR266977 |
— | ||
|
11755P
|
11755P
MR266976
HOSE, INTER COOLER INTAKE AIR
|
MR266976 |
— | ||
|
11756Q
|
11756Q
MR385906
HOSE, INTER COOLER OUTLET AIR
|
MR385906 |
— | ||
|
11756S
|
11756S
MR266979
HOSE, INTER COOLER OUTLET AIR
|
MR266979 |
— | ||
|
11756SB
|
11756SB
MR340919
HOSE, INTER COOLER OUTLET AIR
|
MR340919 |
— | ||
|
11756X
|
11756X
MR266993
HOSE, INTER COOLER OUTLET AIR
|
MR266993 |
— | ||
|
11758
|
11758
MR385905 PIPE, INTER COOLER OUTLET AIR |
MR385905 |
US $93.24 |
||
|
11759
|
11759
MR266985
PIPE, INTER COOLER INLET AIR
|
MR266985 |
— | ||
|
11962
|
11962
MD620869 INSULATOR, ENG AIR INTAKE LINE |
MD620869 |
US $4.79 |
||
|
11962P
|
11962P
MT206580 INSULATOR, AIR CLEANER SUPPORT |
MT206580 |
US $2.87 |
||
|
11969
|
11969
MR323915 COLLAR, ENG AIR INTAKE LINE |
MR323915 |
US $5.75 |
||
|
11969P
|
11969P
MT206583 COLLAR, AIR CLEANER |
MT206583 |
US $2.74 |
||
|
11969Q
|
11969Q
MD620871 COLLAR, ENG AIR INTAKE LINE |
MD620871 |
US $4.79 |
||
|
11996
|
11996
MS440543
NUT, ENG AIR INTAKE LINE
|
MS440543 |
— | ||
|
11998P
|
11998P
MD140823 CLAMP, ENG AIR INTAKE LINE58 |
MD140823 |
from US $4.68 |
||
|
11998Q
|
11998Q
MD132568 CLAMP, INLET MANIFOLD75 |
MD132568 |
from US $7.11 |
||
|
11998S
|
11998S
MR187849 CLAMP, AIR CLEANER80 |
MR187849 |
US $10.53 |
||
|
11998T
|
11998T
MD159931 CLAMP, ENG AIR INTAKE LINE83 |
MD159931 |
from US $10.82 |
||
|
11998U
|
11998U
MD159931 CLAMP, ENG AIR INTAKE LINE83 |
MD159931 |
from US $10.82 |
||
|
11998X
|
11998X
MD173306 CLAMP, ENG AIR INTAKE LINE45 |
MD173306 |
US $10.67 |
||
|
11999
|
11999
MD131051 BOLT, ENG AIR INTAKE LINEWasher assembled,8x30 |
MD131051 |
US $2.87 |
||
|
11999P
|
11999P
MS240146 BOLT, CRUISE CONTROL EQUIPWasher assembled,8x25 |
MS240146 |
from US $0.90 |
||
|
